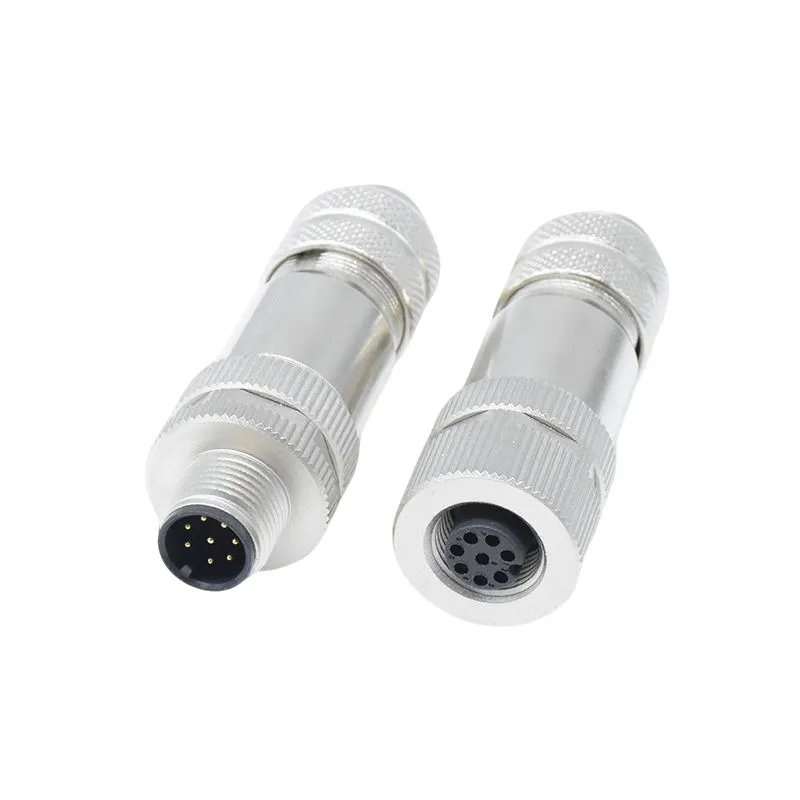

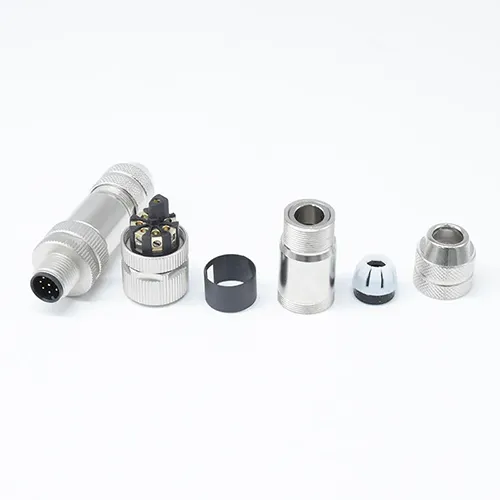

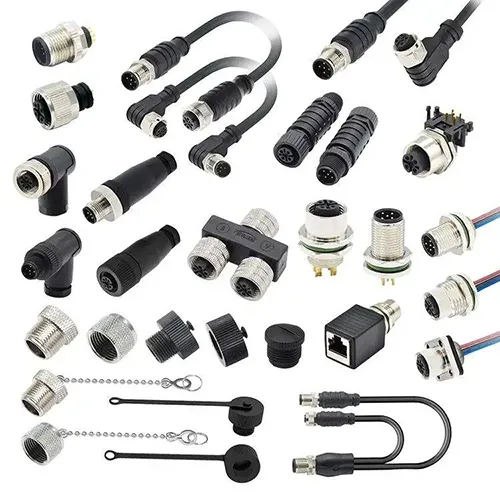

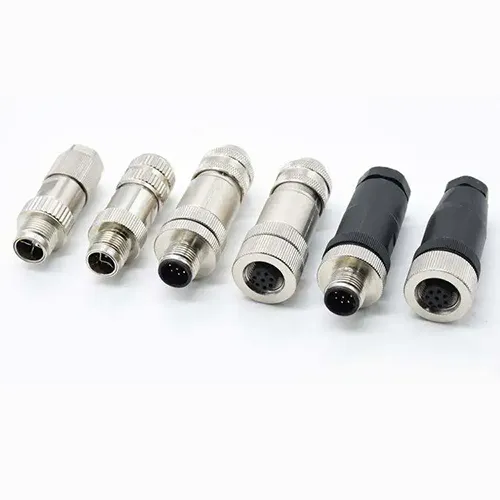

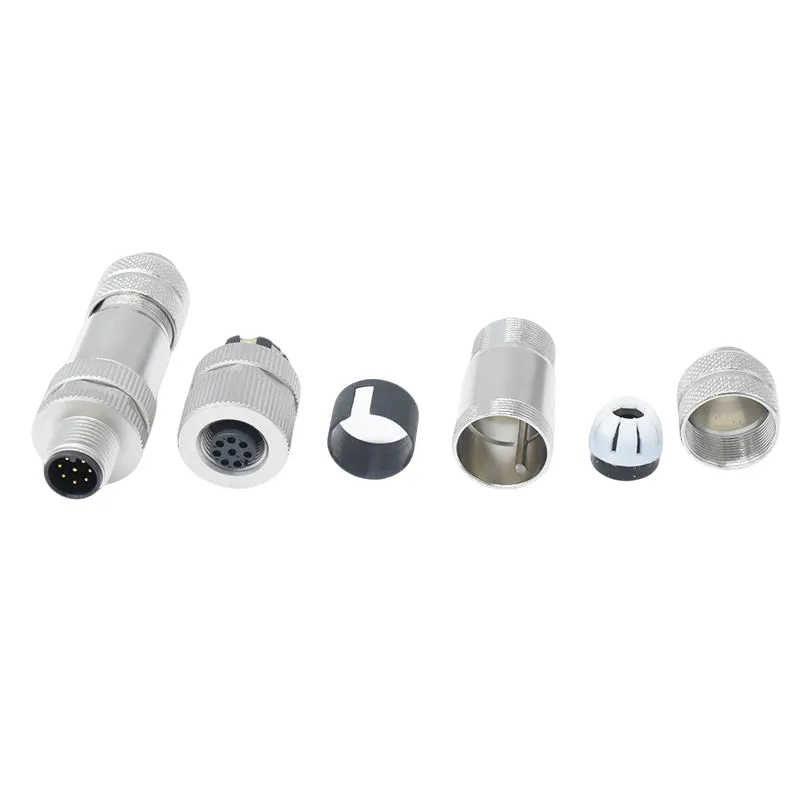

M12 Series Industrial Sensor Connector

The M12 Series Industrial Sensor Connector is Reunion's dedicated solution for the expanding ecosystem of industrial sensors — proximity detectors, photoelectric cells, pressure transmitters, temperature probes, and IO‑Link smart sensors that form the foundation of modern automation. Certified to DIN EN 61076‑2‑101, this threaded circular connector combines a rugged 12mm interface with IP67-rated environmental sealing, making it suitable for both indoor factory floors and harsh outdoor or washdown environments. The connector's all-metal construction provides mechanical durability and EMI shielding, while the threaded locking mechanism ensures vibration-resistant mating — critical on machinery with moving components. Available in 2- to 17-pin configurations, with A‑coded as the standard for sensor applications, the M12 series supports discrete NPN/PNP sensor outputs, analog signals (4-20mA, 0-10V), and digital communication protocols including IO‑Link and AS‑Interface. Contacts are machined from brass with selective gold plating, maintaining contact resistance below 3mΩ across hundreds of mating cycles. Reunion manufactures the M12 series through a vertically integrated process, controlling every step from precision machining and injection molding through automated assembly and 100% electrical testing. Available in unshielded and 360° shielded versions, with panel-mount connectors offered in solder, dip-solder, crimp, or flying-lead terminations, the M12 series adapts to diverse sensor housing designs and installation methods. For engineers designing sensor networks for automotive, packaging, or food processing applications, this connector provides a reliable, standardized, and cost-effective interface between sensing elements and control systems.

Key Selling Points

Technical Specifications (A-Coded Sensor Applications)

General Specifications

- Mating Cycles: ≥100

- Operating Temperature: -25°C ~ +85°C

- Protection Rating: IP67 (mated condition)

- Salt Mist Resistance: 48 hours

- Insulator Material: PA66

- Contact Material: Brass with gold plating

- Shielding: Unshielded or 360° shielded

- Design Standard: DIN EN 61076‑2‑101

All materials are RoHS compliant. Every M12 sensor connector undergoes 100% electrical testing (continuity, insulation resistance, dielectric withstand) before shipment.

Competitive Advantages — Why Choose Reunion's M12 Sensor Connector

The Reunion advantage: You receive documented quality, full DIN compliance, verified IO‑Link compatibility, and proven IP67 sealing at cost‑effective pricing — without the premium cost of European brands or the uncertainty of unbranded alternatives.

Certifications & Quality Assurance

Reunion's M12 sensor connector production operates under statistical process control (SPC). IP67 sealing is verified on every production batch through actual immersion testing (1m, 30 minutes). Test records, material certificates, and inspection reports are retained for each batch, supporting your quality audits and customer documentation requirements.

Customization & Manufacturing Process

Reunion's in-house manufacturing capability allows sensor OEMs and system integrators to tailor the M12 sensor connector to their specific device requirements — from pin configuration and cable assembly to shielding and labeling.

Customizable Options for Sensor Applications

- Pin Configuration — Populate 2 to 17 pins as required; unused positions can be left empty.

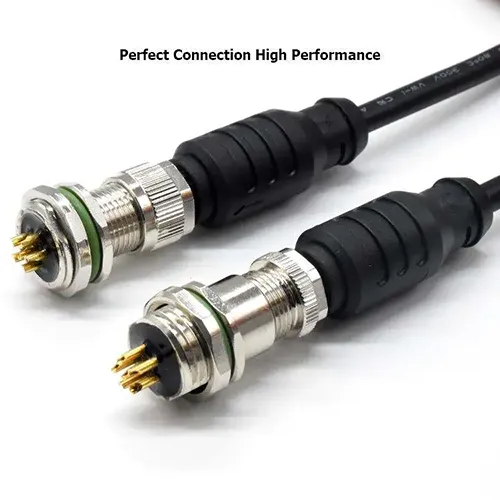

- Cable Assemblies — Custom length (0.2m to 20m), PUR (oil/chemical-resistant) or PVC jacket, single-ended or double-ended, with or without overmolded strain relief.

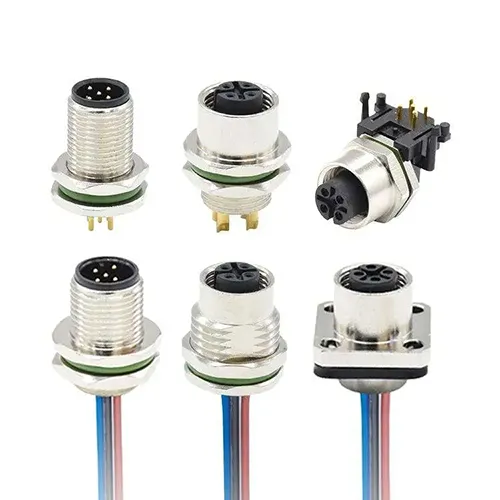

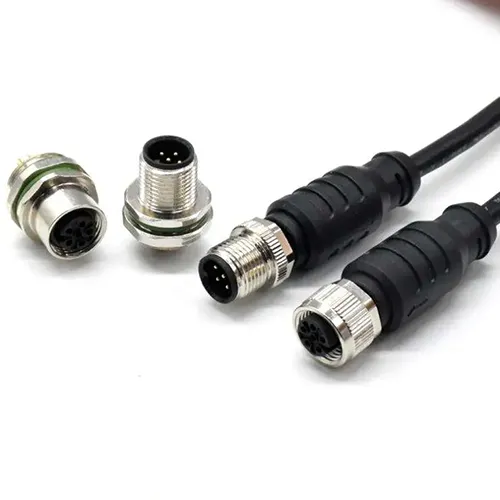

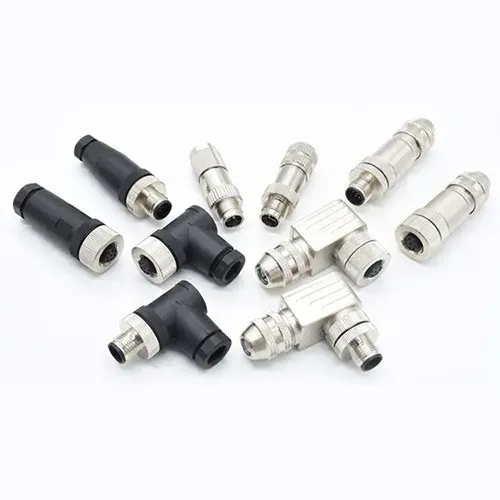

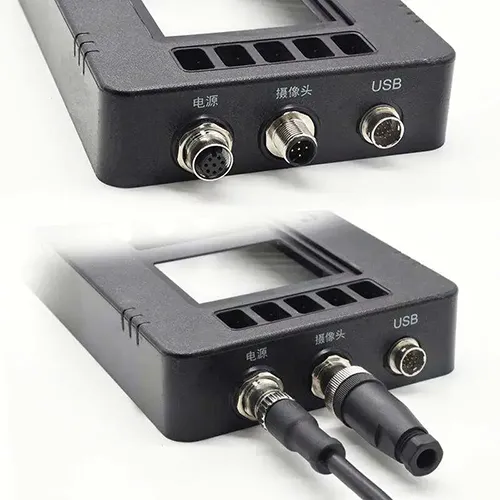

- Connector Orientation — Straight or right-angle; panel-mount or cable-mount versions.

- Shielding — Unshielded for standard discrete sensors; 360° shielded for IO-Link, analog, or long cable runs.

- IO-Link Specific — 4-pin shielded configuration with PUR cable; qualified for 230.4 kbps communication.

- Termination Style — Solder, dip-solder, crimp, or flying-lead for panel-mount connectors.

- Cable Marking — Custom printing or heat-shrink labels for sensor identification.

- Packaging — Anti-static bags, reels, or custom-labeled cartons for automated assembly.

Manufacturing Process Flow

- Precision Machining — CNC automatic lathes produce metal shells and contacts to ±0.02mm tolerance.

- Selective Plating — Automated barrel plating applies gold over nickel underlayer (≥0.3µm).

- Injection Molding — PA66 insulators molded with precision cavity tools.

- Cable Processing — Automated cutting, stripping, and tinning; in-house PUR/PVC cable extrusion.

- Shield Termination — For shielded versions, braid termination and grounding contacts installed.

- Assembly — Semi-automated lines with torque-controlled fastening and vision-inspected contact placement.

- Electrical Testing — 100% verification of continuity, insulation resistance, and dielectric withstand.

- Environmental Sampling — Batch sampling for IP67, salt spray, and thermal cycle testing.

- Packaging — Anti-static vacuum sealing with desiccant; export-grade carton packing.

Frequently Asked Questions (FAQ)

1. What pin configuration does Reunion recommend for IO-Link sensor applications, and why?

For IO-Link sensors, Reunion recommends the 4-pin A-coded configuration (pin 1: L+ power, pin 3: L- ground, pin 4: C/Q IO-Link data, pin 2: optional second signal or left unused). This is the industry-standard IO-Link interface per IEC 61131-9. We specifically recommend:

- Shielded version — Required for reliable communication at 230.4 kbps, especially with cable runs over 10m.

- Gold plating ≥0.3µm — Maintains low contact resistance for high-speed digital signals.

- PUR cable — Provides flexibility and oil/chemical resistance for industrial environments.

- Cable length — Maximum 20m for IO-Link at full speed; longer runs may require repeaters.

2. Can the M12 sensor connector handle both power and data for smart sensors, or do I need separate connectors?

Yes — the M12 sensor connector, with its multiple pin configurations, can handle both power and data within a single connection. For example:

- 4-pin — Power (L+, L-) and data (C/Q) for IO-Link or analog sensors.

- 5-pin — Power, plus two signals or a separate shield connection.

- 8-pin — Power, data, and auxiliary signals for complex multi-function sensors.

- 12/17-pin — High-density configurations for sensors with multiple outputs (e.g., temperature + pressure + status).

The A-coded M12 connector supports power (up to 4A) and data simultaneously, eliminating the need for separate power and signal cables — simplifying sensor wiring and reducing installation costs. For high-power sensors (>4A per pin), consider using S-coded (power-specific) M12 connectors for the power lines and a separate A-coded connector for signals.

3. What torque should be applied to the M12 coupling nut, and how should the IP67 seal be maintained for sensor applications exposed to washdown?

To achieve and maintain IP67 sealing in washdown environments, Reunion recommends:

- Mating torque — Hand-tighten the coupling nut until the O-ring contacts the panel surface, then apply additional torque of 0.5-0.7Nm using a torque wrench. Do not exceed 0.8Nm.

- O-ring inspection — Replace the O-ring if deformation, cracking, or hardening is visible. O-rings are available as service parts from Reunion.

- O-ring replacement schedule — For daily washdown applications, replace O-rings annually. For standard factory-floor sensor installations, replacement every 2-3 years is typically sufficient.

- Cable bend radius — Maintain a minimum bend radius of 5× cable diameter at the connector entry to prevent stress on the cable seal.

- Cable orientation — For washdown applications, orient the cable exit downward to prevent pooling of liquids near the seal interface.

- Cleaning — Clean connector exteriors with mild detergent and water. Avoid pressure washers directed at the mating interface.
