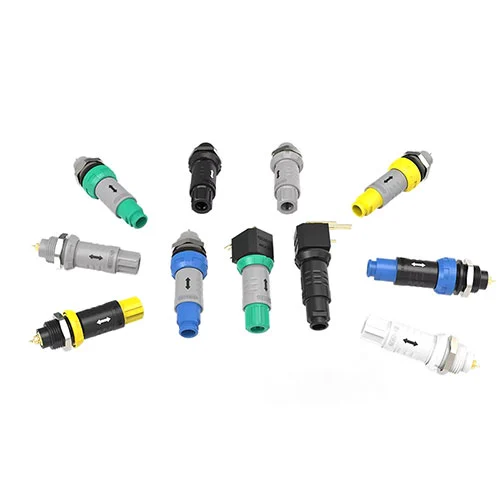

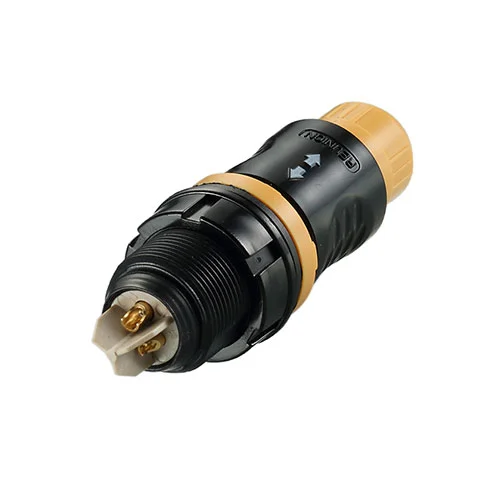

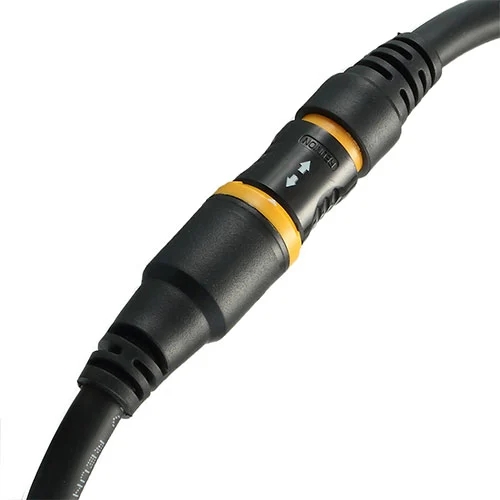

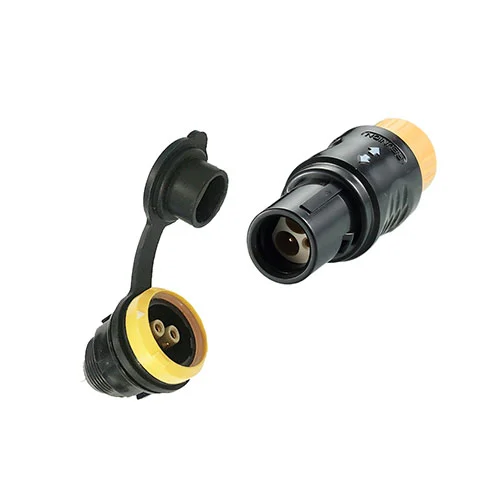

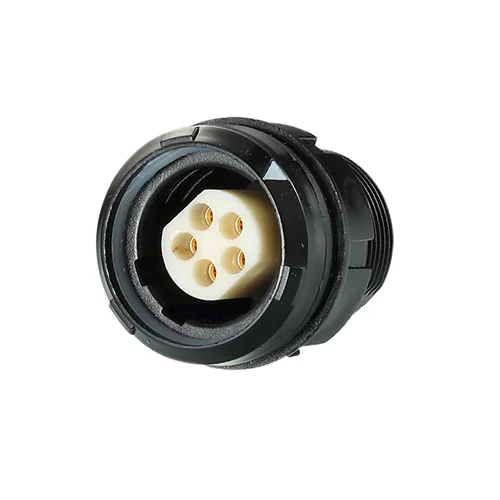

The P Series Plastic Push-Pull Connector is Reunion's dedicated solution for Medical equipment and Testing and Measuring devices. The P Series features a precision-molded housing constructed from high-performance engineering thermoplastics — ABS/PC or PSU — providing excellent dielectric strength, corrosion resistance, and significant weight reduction of up to 60% compared to brass equivalents.
The push-pull self-latching mechanism is fully integrated into the plastic housing, delivering the same audible click and tactile feedback as metal versions while eliminating ground loop risks and electrical continuity concerns.
Available in shell sizes 1 and sizes 2, with contact counts from 2 to 16 pins, the P series supports solder, crimp, and PCB termination styles. The connector offers a standard operating temperature range of -40°C to +80°C and IP50/IP65 protection, making it suitable for medical patient-connected devices, portable instruments, and test equipment where patient safety or operator isolation is paramount.
The P Series delivers electrical and mechanical performance that meets the requirements of sensitive electronic and medical applications.
| Parameter | Specification |
| Housing Material | ABS/PC (standard); PSU (high-temp option) |
| Shell Sizes | 1P, 2P |
| Contact Count | 2 to 16 pins (shell size and gauge dependent) |
| Contact Material | Brass with gold plating |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | ≥10,000MΩ |
| Mating Cycles | >2,000 operations |
| Operating Temperature | -40°C ~ +80°C (ABS/PC); -40°C ~ +125°C (PSU option) |
| Ingress Protection | IP50/IP65 (standard) |
| Termination Styles | Solder, crimp, PCB (straight or right-angle) |
All P Series Plastic Push-Pull Connector units are 100% tested for continuity, insulation resistance, and dielectric withstand.
Reunion's P Series is backed by a comprehensive quality framework that provides medical device OEMs and industrial customers with the documentation and traceability they need for regulatory compliance and supply chain confidence.
| Certification | Scope and Relevance to P Series |
| ISO 13485:2016 | Quality management for medical devices — ensures design controls, risk management, and production traceability specific to patient-connected equipment. (Certification No. CN***; verifiable via IAF CertSearch database) |
| ISO 9001:2015 | Quality management system — design, production, and after-sales service across all industries. |
| ISO 14001:2015 | Environmental management — verified waste reduction and sustainable material sourcing in plastic injection processes. |
| RoHS | Restriction of hazardous substances — compliance with EU Directive. |
Reunion maintains a dedicated medical-grade production line for P series connectors serving healthcare OEMs. This line operates under ISO 13485 controls with segregated material handling, documented process validation, and full lot traceability. Supporting your regulatory audit and product liability requirements.
Medical Devices — Patient monitors, Dental equipment, Data analysis instrument, Microwave ablation surgical system, Defibrillator and Disposable devices.
Test & Measurement — Meters, Sources, Analyzers.
One of the P Series Plastic Push-Pull Connector's key advantages is its ability to accommodate custom designs through injection molding — offering flexibility not available with machined metal connectors.
- Housing Color — Any RAL or Pantone color molded directly into the material — no painting or secondary finishing.
- Shell Material — ABS/PC (standard, cost-effective), PSU (high-temperature) for increased mechanical strength.
- Contact Plating — Gold (standard), Support customized electroplating thickness.
- Keying Positions — Multiple position pins options can avoid mixed insertion between similar connectors.
- Cable Assemblies — Custom length, gauge, and jacketing (PVC/PUR/silicone) with or without overmolding.
- Logo/Part Number — Can be molded directly into the housing — permanent identification without labels.
Reunion operates a dedicated injection molding facility within its 4,000m² Shenzhen plant:
- Tooling Design — Collaborative design with customers using 3D CAD, followed by tool-making (4-6 weeks for standard custom tools).
- Material Drying — Engineering plastics are dried to precise moisture levels to prevent molding defects.
- Injection Molding — Precision molding on automated presses with ±0.02mm tolerance control.
- Contact Stamping & Plating — High-speed stamping from copper alloy with selective gold plating.
- Secondary Operations — Ultrasonic insertion of metal latch components and contacts.
- Assembly — Semi-automated assembly with vision inspection for contact alignment.
- Testing — 100% electrical verification (continuity, insulation, dielectric), plus sample-based mechanical endurance testing.
- Packaging — Anti-static vacuum bags; tube or tray packaging for automated assembly lines.
The P Series Plastic Push-Pull Connector is compatible with the following sterilization methods, depending on the housing material selected:
- Ethylene Oxide (EtO) — Compatible; standard ABS/PC withstands multiple EtO cycles without degradation (tested to 50 cycles).
- Autoclave (Steam, 121°C) — PSU option is compatible with up to 100 autoclave cycles; standard ABS/PC material can withstand a maximum temperature of 80°C, so we recommend PSU for autoclave-intended applications.
- Chemical Disinfection — Compatible with common hospital disinfectants (isopropyl alcohol, chlorhexidine, hydrogen peroxide) per our chemical resistance data.
We provide recommended sterilization protocols and cycle limit data upon request. If sterilization is critical for your application, please specify the method and expected cycle count at quotation stage.
While the P Series excels in static or low-vibration environments (e.g., benchtop diagnostics, patient monitoring cables), its plastic housing exhibits different creep and fatigue characteristics compared to metal. For applications exceeding 10Grms random vibration (e.g., aerospace engine compartments or heavy-duty industrial robotics), we recommend evaluating Reunion's metal Series instead. If your design specifically requires the P Series' insulation in high-vibration settings, our engineering team can recommend an additional epoxy potting procedure at the cable exit to enhance strain relief — please contact us with your vibration profile for a tailored assessment. This transparent guidance ensures you select the right connector for your actual operating conditions.
