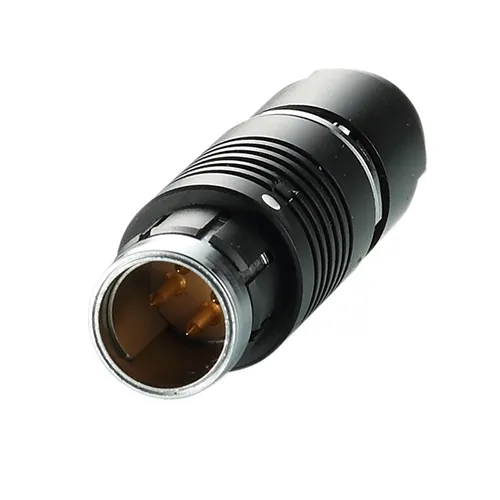

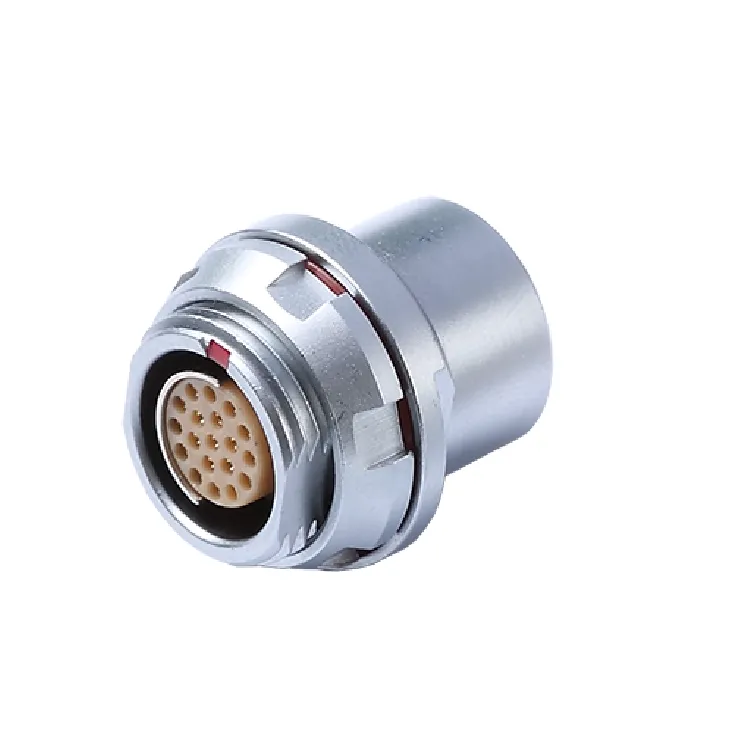

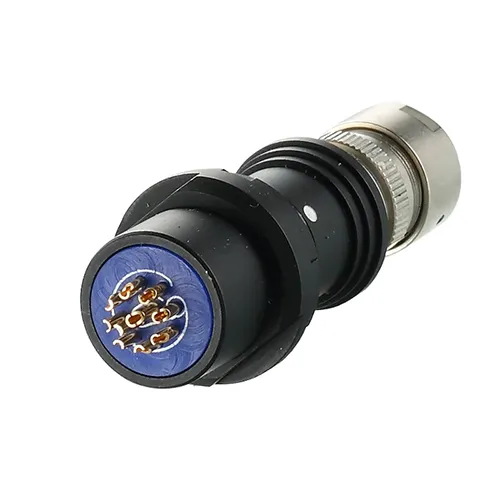

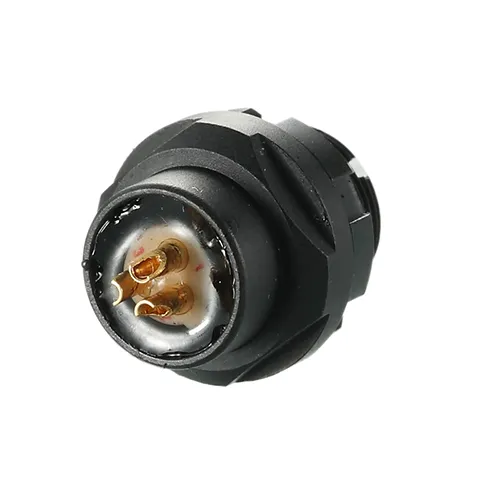

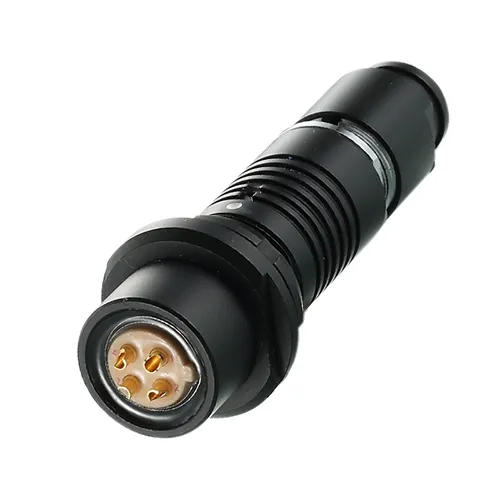

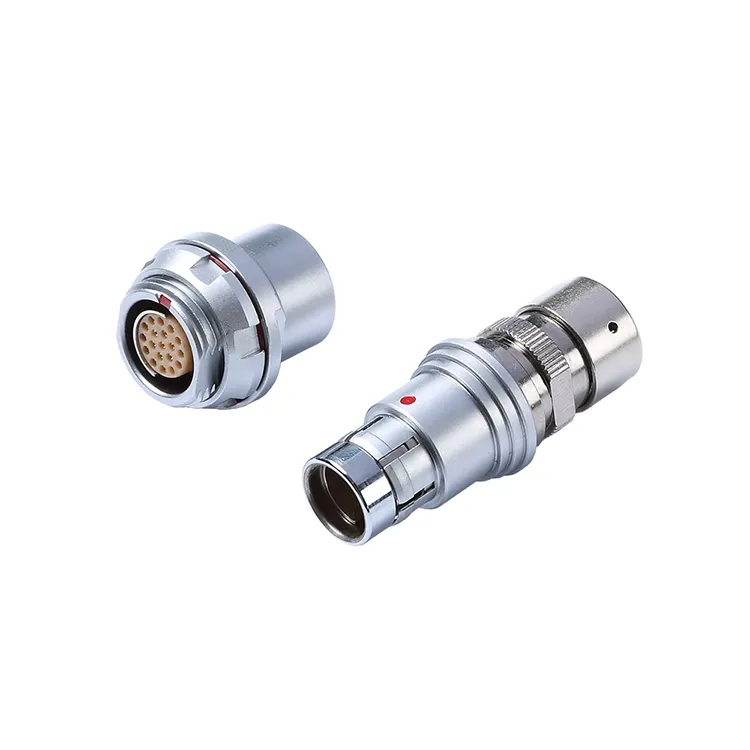

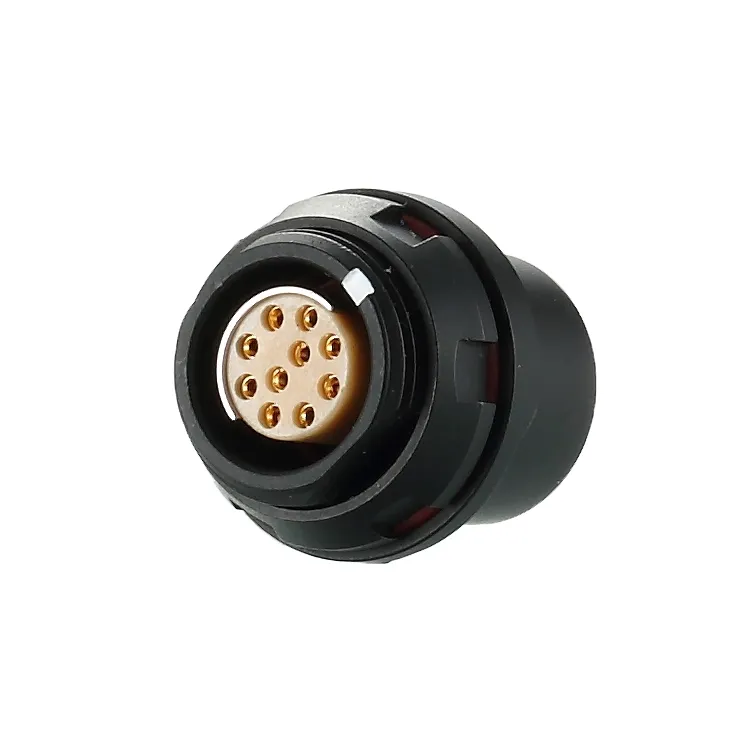

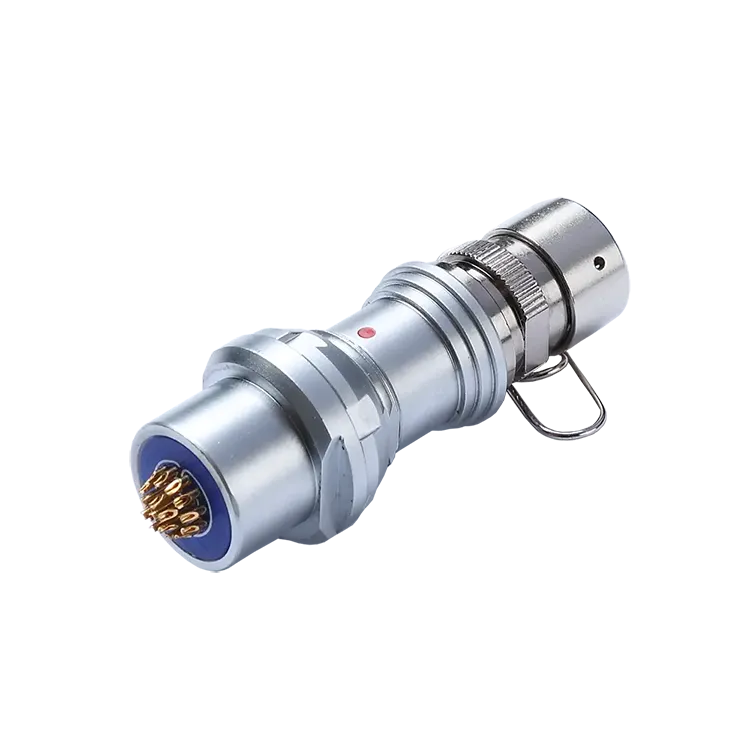

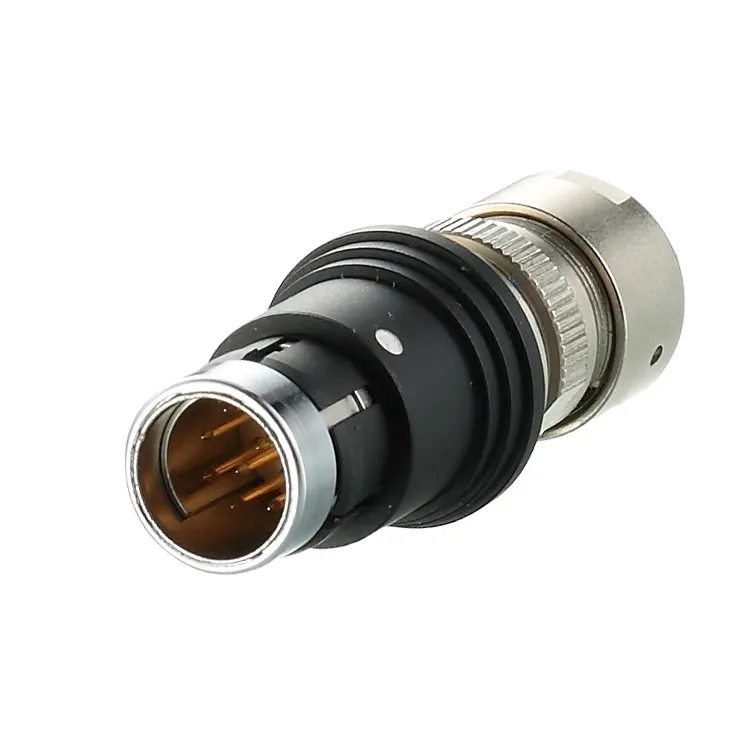

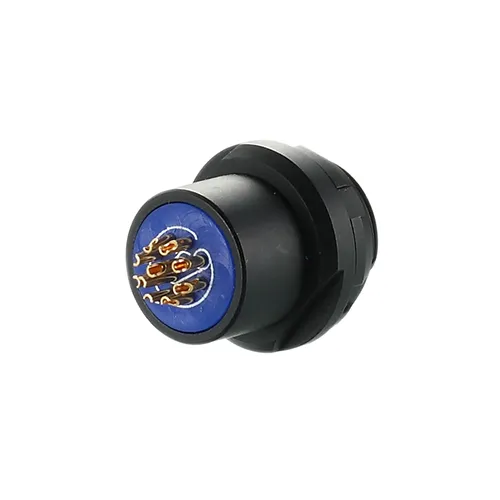

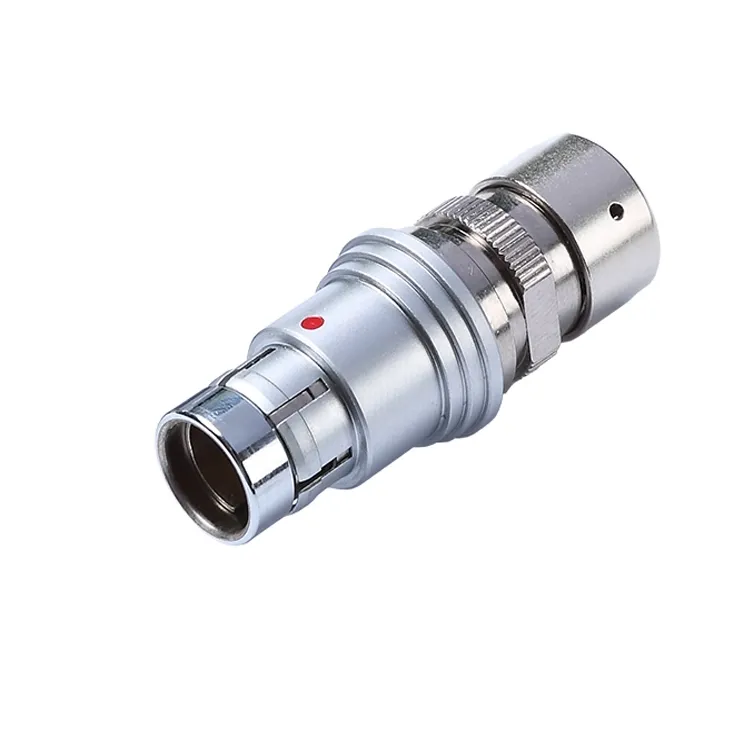

The precision machined metal shell features a corrosion resistant finish, IP67 rated sealing when mated, and operates across 45°C to +125°C. Available in 2 to 12 contact configurations with solder or PCB terminations, the Reunion F Series Metal Push-Pull Connector supports both signal and power transmission in compact form factors. Reunion’s vertically integrated manufacturing—covering machining, molding, plating, and assembly—ensures every unit meets strict quality standards.
Keyed polarization prevents mismating, while the ergonomic grip design enables one handed operation even with gloved hands. For engineers designing equipment for outdoor, marine, or washdown environments, the Reunion F Series Metal Push-Pull Connector delivers protection, reliability, and cost effectiveness that competitors struggle to match.
| Feature | Benefit | Validation Evidence |
| IP68 Sealing (mated) | Withstands continuous immersion in 1m water for 30 min — essential for tunnel lights, marine sensors, and daily washdown cycles. | Each production lot undergoes random submerged‑live‑circuit testing; test videos available upon request. |
| Push‑Pull Lock | Quick mating for fast installation, for vibration‑prone or permanent installations — both on the same connector. | Hand‑tightenable, no tools required. |
| Corrosion‑Resistant All‑Metal Shell | Passes 72‑hour salt spray (ASTM B117) — ideal for coastal infrastructure, offshore platforms, and chemical splash zones. | Standard feature, not a paid upgrade (vs. competitors' 48h typical). |
| Wide Temperature Range | ‑45°C to +125°C — reliable in Arctic outdoor winters and solar farm desert heat alike. | Validated in thermal cycling chambers with full current load during ramp cycles. |
| Current Capability | Multi-core — delivers power and signal in the same compact circular shell. | Contact resistance ≤5mΩ initial; gold‑plated mating faces for low heat rise. |
| Ergonomic Grip Design | Textured housing and generous pull‑tab area allow one‑handed mating/unmating, even with gloved hands — critical for field service in wet or cold conditions. | Field feedback: 20% faster installation than traditional threaded connectors (verified by solar EPC client). |
| Flexible Termination | Solder and PCB options support diverse cable types, harness assemblies, and direct‑board mounting. | Tooling part numbers available for standard AWG ranges. |
A manufacturer of offshore oil‑platform navigation buoys required a connector that withstands saltwater immersion, wave impact, and repeated mating during battery swaps. After competitor connectors failed at 48‑hour salt spray, the Reunion F Series Metal Push-Pull Connector (IP68 + corrosion‑resistant shell) was selected for solar panel input, battery output, and sensor data links. Over 500 connectors deployed across two years in the North Sea — zero corrosion‑related failures, even when buoys were recovered with marine growth on the shells.
All parameters are verified under Reunion's ISO 13485‑aligned quality management system, with full material certificates and traceability records retained for every batch.
| Parameter | Specification | Test Condition / Note |
| Shell Material | High‑strength copper chrome plating shell, corrosion‑resistant finish | 72h salt spray (ASTM B117) — standard |
| Contact Count | 2 to 12 pins (customizable loading) | Keyed polarization to prevent mismating |
| Current Rating | 2A to 15A per contact (gauge dependent) | Gold‑plated contacts for stable resistance |
| Voltage Rating | 125V to 500V AC/DC (spacing dependent) | Dielectric withstand voltage tested 100% |
| Mating Cycles | >5,000 operations | Maintains ≤5mΩ contact resistance |
| Temperature Range | ‑45°C ~ +125°C | Full current load during thermal cycling |
| Ingress Protection | IP67 | IP50 optional for less demanding use |
| Vibration | 10–2000Hz, 15g | No intermittent contact >1μs |
| Mechanical Shock | 100g, 6ms | Half‑sine pulse |
| Contact Resistance | ≤5mΩ (initial) | Measured per MIL‑STD‑1344 |
| Insulation Resistance | ≥5000MΩ | Dry and after humidity conditioning |
| Regulatory Compliance | RoHS, REACH; UL | Full declaration upon request |
When evaluated on total cost of ownership (TCO) — not just unit price — the Reunion F Series Metal Push-Pull Connector consistently outperforms premium European and US alternatives.
| Aspect | Reunion F Series | Typical European/US Comparable Series |
| Unit Price | ~1/3 of premium brands | Premium cost structure |
| IP Rating (Standard) | IP67 (1m immersion) — included | Often IP67 (1m) — IP68 as costly option |
| Salt Spray (Standard) | 72 hours — included | 48 hours — typical; 72h only on special order |
| Temperature Range | ‑45°C to +125°C — standard | ‑25°C to +85°C — typical for comparable pricing |
| Locking System | Push‑pull system — both on one connector | Quick lock and release |
| Minimum Order Quantity | No MOQ for standard configurations | Often 500+ MOQ for non‑stock variants |
| Customization | Housing color, cable assembly, contact loading, logo engraving — fast turnaround | Limited options; slower engineering response |
| Lead Time (Production) | 15–20 days | 5–10 weeks typical |
| Traceability & Quality | ISO 13485‑level documentation (medical‑grade traceability) | Industrial‑grade, often outsourced across multiple suppliers |
| Item | Detail |
| Standard Packaging | Anti‑static bags with individual cavity protection; reinforced cartons with moisture‑barrier lining. |
| Custom Packaging | Reel, tray, or custom labeling available on request. |
| Lead Time | Samples: 5–7 days; Production: 15–20 days; Custom harnesses: 25–30 days (written confirmation provided). |
| Shipping Methods | Sea / air freight for bulk; express (DHL, FedEx, TNT, UPS) for samples. |
| Delivery Terms | EXW, FCA, FOB, CIF, CPT — flexible to buyer. |
| Warranty | 12 months from shipment against manufacturing defects under proper use. |
| Technical Support | Engineering team responds within 24 hours; installation guides, cross‑reference docs, and 3D step files available. |
| Return Policy | Verified manufacturing defects → replacement or refund; case‑by‑case with clear communication. |
| Factory Audit Welcome | We encourage remote or on‑site factory audits — production line live video can be scheduled within 48 hours. |
ISO 13485 mandates stricter traceability, change control, and process validation than typical industrial quality systems. This means:
- Every batch is documented with full material certificates and test records.
- Any material or process change undergoes formal re‑validation — ensuring today's product matches last year's.
- Incoming inspection and in‑process controls are more rigorous than most purely industrial suppliers.
You get medical‑grade quality management for your industrial application — without the medical premium.

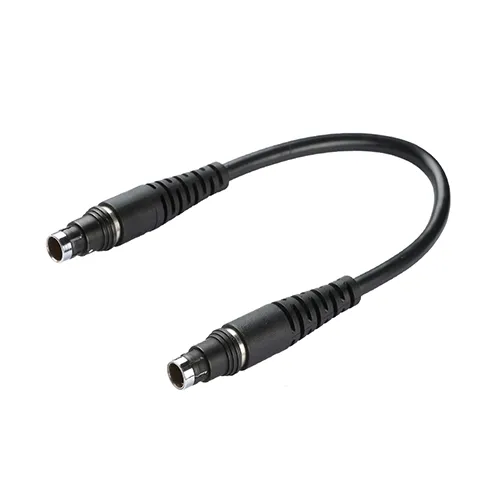

Yes — Reunion offers fully assembled cable harnesses with the Reunion F Series Metal Push-Pull Connector on one or both ends. Specify cable type (PVC, PUR, silicone, Teflon), length, gauge (30AWG to 16AWG), shielding, and jacketing color.
Standard cable assemblies (≤10m, gauge ≤20AWG): 7–10 days for samples; 15–20 days for production.
Non‑standard (high‑temp, overmolding, custom connectors): 25–30 days for first order; subsequent orders shorten. Provide your cable spec and wiring diagram — our R&D team confirms feasibility and quotes within 2 working days.
Absolutely. We offer low‑MOQ customization for pin loading, housing color (RAL codes available), and even logo engraving. Sample lead time for custom configurations is typically 10–12 days. Contact our engineering team with your requirements — we will respond with a feasibility report and CAD sketch.
We do not rely on batch sampling alone. Every production lot includes random submerged live‑circuit testing (1m, 30min) with electrical continuity monitored throughout. Test reports are automatically included in your shipment documentation. Upon request, we can provide video‑recorded testing for your specific lot.
| Order Type | Typical Lead Time | MOQ |
| Standard Samples | 5–7 days | No MOQ |
| Custom Samples (pin/color/cable) | 10–12 days | No MOQ for evaluation |
| Production Orders (standard) | 15–20 days | No MOQ |
| Custom Harness Production | 25–30 days | Low MOQ (discuss with sales) |
Request a sample or engineering drawing package: Our technical team provides 2D/3D CAD files, crimp tooling recommendations, and cross‑reference guides against major European/US series — all within 24 hours.
