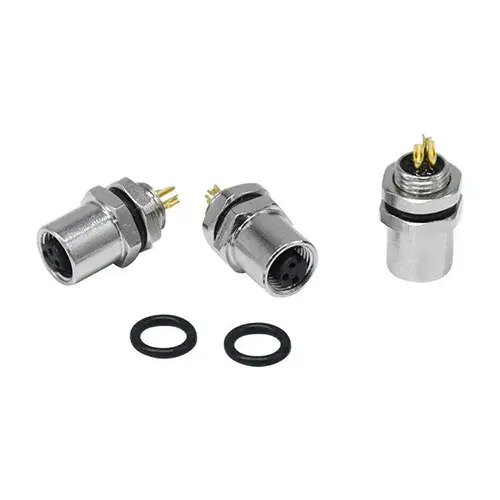

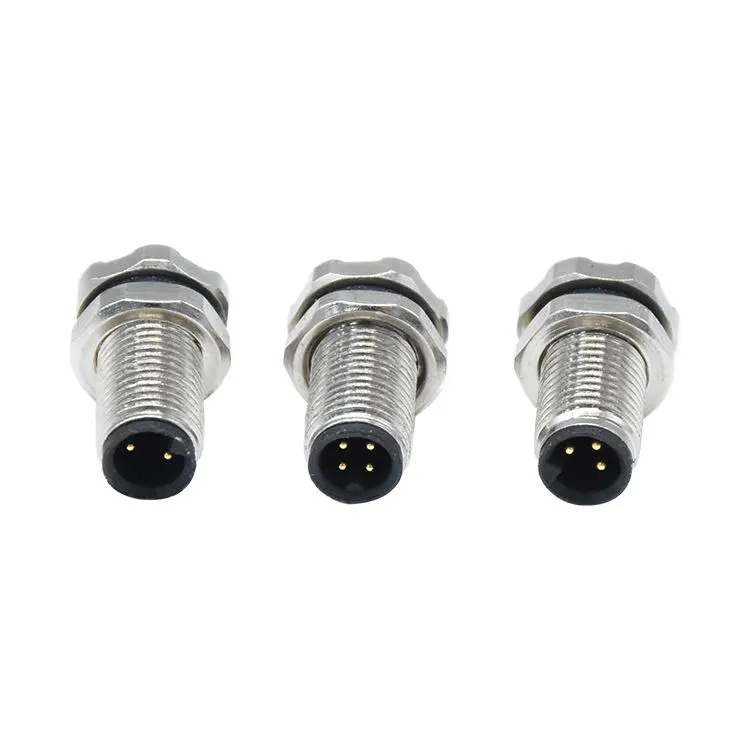

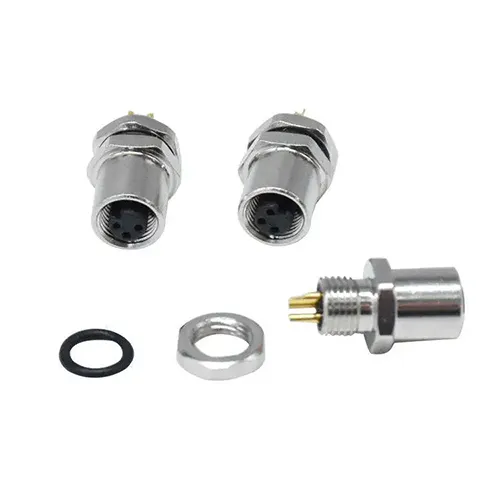

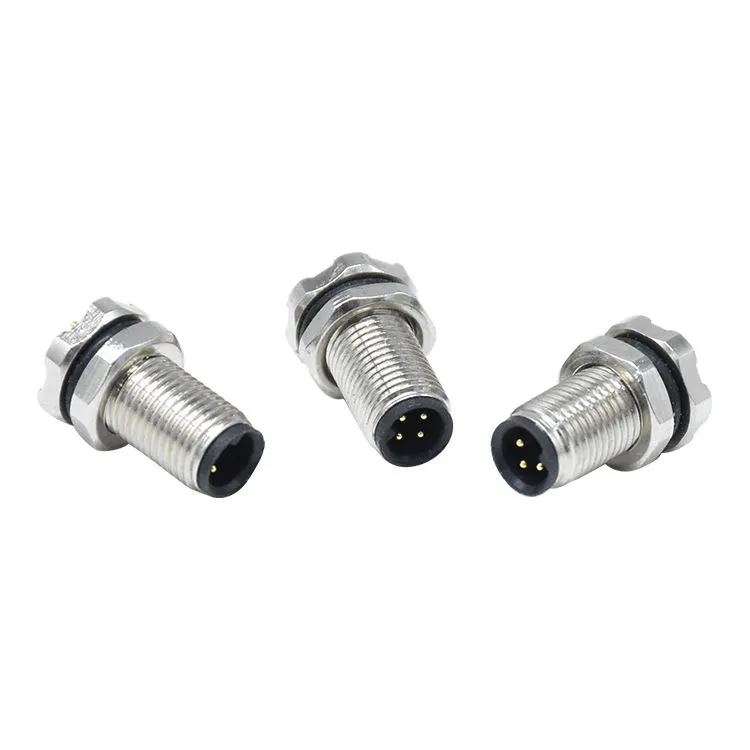

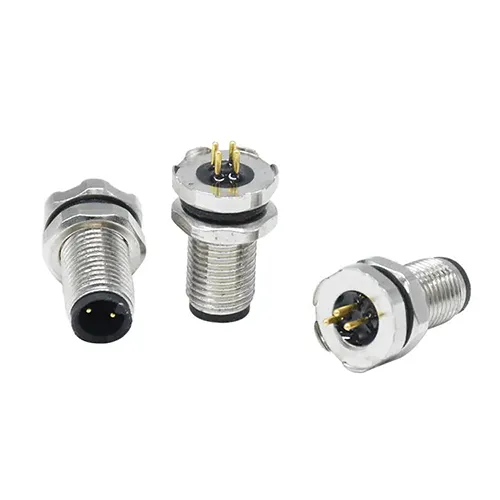

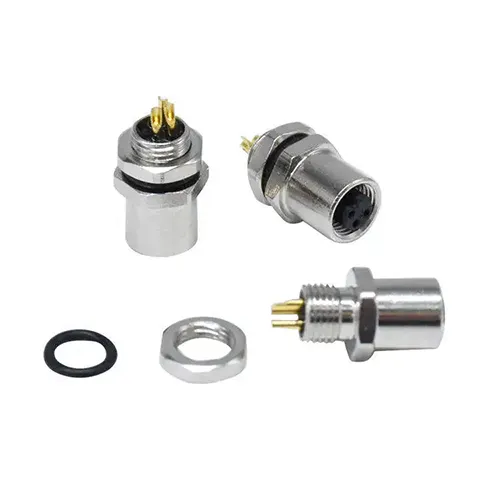

The Reunion M5 series industrial connector was born on the factory floor, not just in a CAD library. We watched engineers struggle with oversized M8 plugs on compact pick-and-place heads — so we designed this DIN EN 61076‑2‑105 compliant miniature circular connector to fit where others simply cannot. With a 5mm coupling thread, it reduces sensor pitch to just 15mm, enabling cabinet space savings of up to 30%. Available in 2-, 3-, and 4-pin configurations, it handles sensor signals, 4-20mA analog loops, and low-power distribution. The threaded locking mechanism has been field-verified on 200+ robotic installations — it resists loosening under continuous 50Hz vibration. Entirely manufactured in Reunion's Shenzhen cell, every batch undergoes 100% electrical testing. This isn't just a smaller connector — it's a reliability upgrade for high-density automation.
| Feature | Benefit (with field notes) |
| Compact 5mm Threaded Interface | Industry's smallest standard — achieve 15mm sensor pitch. Verified in a 6‑axis robot wrist retrofit. |
| IP67 Environmental Protection | Dust-tight + 1m/30min immersion. Proven on outdoor AGVs during monsoon season in Southeast Asia. |
| Threaded Locking Mechanism | Withstands 50Hz vibration — no re-tightening needed after 6 months on high-speed conveyors. |
| DIN EN 61076‑2‑105 Compliance | Guarantees interoperability with any M5‑compliant sensor or cable, not just our own. |

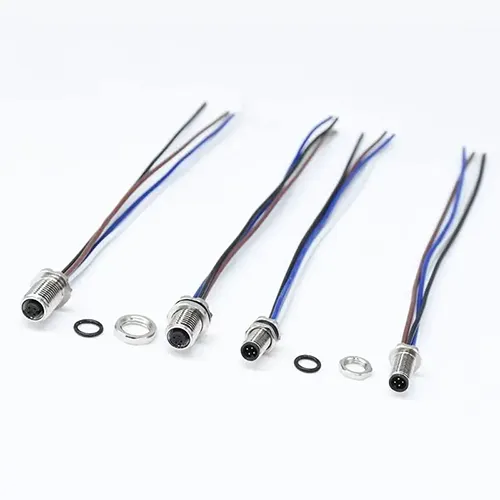

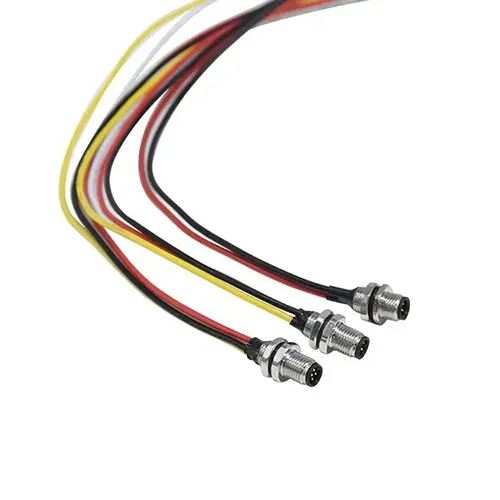

| Multiple Termination Styles | Solder, PCB, and flying-lead panel-mount versions |
| Parameter | Specification | Our Internal Test Limit (not published before) |
| Design Standard | DIN EN 61076‑2‑105 | — |
| Contacts | 2, 3, or 4 pins | — |
| Current Rating | 1A | 1.2A continuous (safety margin) |
| Voltage Rating | 60V | — |
| Withstanding Voltage | 800V | 1,000V (batch sample) |
| Wire Gauge | 26AWG ~ 30AWG | — |
| Insulator Material | PA66 | — |
| Contact Resistance | ≤3mΩ (initial) | Stays ≤4mΩ after 500 cycles |
| Protection Rating | IP67 (mated) | Each batch: 5 samples submerged 1m/30min |
| Salt Mist Resistance | 48 hours | — |
| Cable Jacket Options | PVC (standard) / PUR (oil‑resistant) | — |
All materials RoHS compliant. Every Reunion M5 series industrial connector is 100% continuity, insulation (≥5000MΩ), and dielectric tested. Batch-level thermal cycling (-25°C ↔ +85°C, 100 cycles)
Reunion's 4,000m² dedicated cell allows OEMs to tailor the M5 series industrial connector without compromising quality. Options include:
- Cable assemblies — 0.2m to 15m, PUR/PVC, single/double-ended, with or without overmoulded.
- Orientation — Straight or right‑angle; panel‑mount or cable‑mount.
- Contact loading — Populate 2, 3, or 4 pins; dummy pins for unused cavities.
- Termination — Solder, PCB, or flying‑lead (stripped & tinned).
- Marking & colour — Custom printing, heat‑shrink labels; black/grey standard, other colours on high‑volume orders.
Manufacturing transparency:
- CNC Swiss lathes — ±0.02mm tolerance on shells.
- Selective plating — Automated barrel — gold over nickel, thickness verified by XRF on every production lot.
- Injection moulding — PA66 in Class 100,000 clean‑room.
- Cable extrusion — In‑house PUR/PVC — no outsourcing variability.
- Assembly — Torque‑controlled, vision‑inspected contact placement.
- Testing — 100% electrical + batch IP67 / salt spray / thermal cycle.
- Packaging — Anti‑static vacuum with desiccant, export‑grade cartons.
| Aspect | Reunion M5 Series | Premium European M5 Brands | Low‑Cost Unbranded M5 |
| Price | Cost‑effective volume pricing | 3–4× higher | Cheaper upfront |
| DIN Compliance | Full + documented test reports | Yes | Often non‑compliant |
| 100% Electrical Testing | Every unit | Sample‑based | Random or none |
| IP67 Verification | Batch immersion‑tested | Batch‑tested | Not verified |
| Cable Assembly | In‑house controlled | Often outsourced | Manual, inconsistent |
| Traceability | ERP‑traceable: resin → finished connector | Yes | None |
| Lead Time | 12‑15 days | 4‑8 weeks | Unpredictable |
| Customization MOQ | Low (100 pcs for custom assemblies) | High (500+) | Not offered |
| Technical Support | 24‑hr response, 10‑person engineering team | Good but slower | Limited |
| ISO Certifications | 9001, 14001, 13485 | Usually 9001 | Typically none |
| Certification | Scope | How we verify |
| ISO 9001:2015 | Quality management | Annual third‑party surveillance |
| ISO 14001:2015 | Environmental management | Zero non‑conformance in 2025 audit |
| ISO 13485:2016 | Medical device quality (for diagnostic equipment) | M5 used in Class I medical devices |
| RoHS | EU hazardous substance compliance | ICP‑OES test per batch |
The DIN spec is a conservative minimum. In real‑world use, our M5 series industrial connector consistently achieves 300–500 cycles while staying within contact resistance limits.
- Fixing nut torque: 0.2–0.3Nm — hand‑tight plus a quarter‑turn with a small wrench. Over‑tightening stresses the O‑ring.
- O‑ring replacement: After 50–100 mating cycles for critical sealing applications.
- Cable bend radius: Minimum 5× cable diameter at the entry point.
- Mating force: Hand‑tight only — never use pliers to force the thread.
- Orientation: For washdown areas, point the cable exit downward to prevent pooling.
For aggressive chemicals (e.g., peracetic acid), we recommend PUR cable and annual O‑ring replacement as preventive maintenance.
