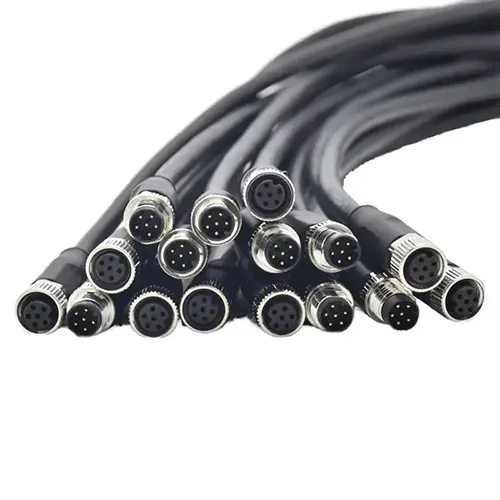

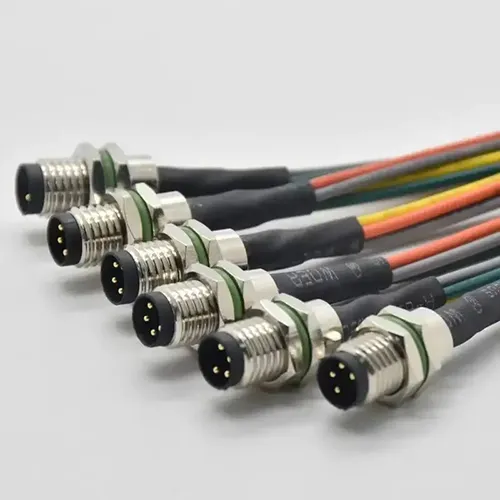

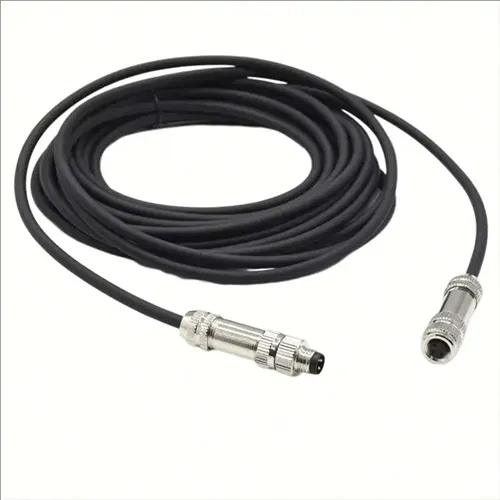

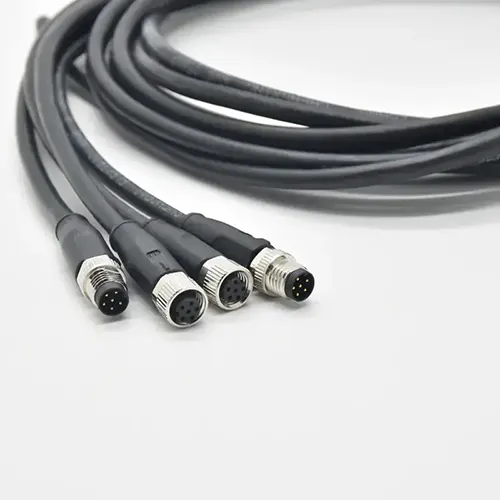

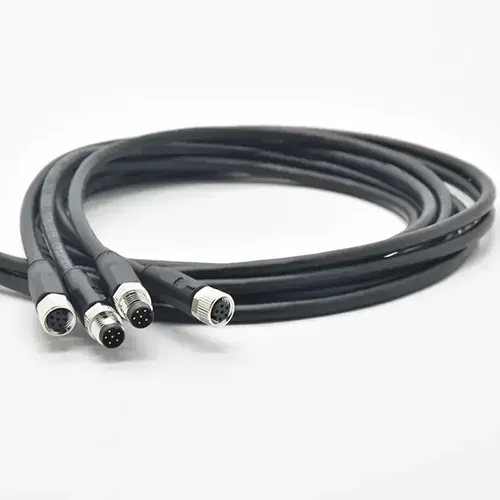

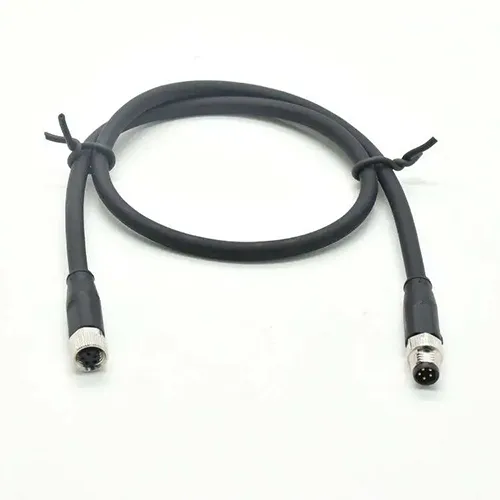

The M8 Series Waterproof Connector is Reunion's workhorse interconnect for industrial automation, designed to meet the rigorous demands of factory floor environments where dust, moisture, and vibration are constant challenges. Certified to DIN EN 61076‑2‑104, this threaded circular connector provides IP67-rated sealing against dust and temporary immersion, making it suitable for washdown applications, outdoor installations, and machinery with coolant exposure. The connector's threaded locking mechanism ensures vibration-resistant mating — critical for equipment with moving components — while the all-metal housing delivers EMI shielding for signal integrity. Available in 2-, 3-, 4-, 5-, 6-, and 8-pin configurations, the M8 series supports discrete sensor signals, analog outputs, and fieldbus communication protocols including IO-Link and AS-Interface. Contacts are machined from brass with selective gold plating, maintaining contact resistance below 3mΩ across thousands of mating cycles. Reunion manufactures the M8 series through a vertically integrated process — from precision machining and injection molding through automated assembly and 100% electrical testing. The series is available in unshielded and shielded versions, with panel-mount connectors offered in solder, PCB, or flying-lead terminations. For engineers specifying connectors for industrial sensors, packaging equipment, or conveyor systems, the M8 series offers the reliability of premium brands at a competitive cost.
| Parameter | Specification |
| Design Standard | DIN EN 61076‑2‑104 |
| Pin Configurations | 2, 3, 4, 5, 6, and 8 pins |
| Current Rating | 1.5A (8-pin) to 4A (2-4 pin) |
| Voltage Rating | 30V (5-8 pin) to 60V (2-4 pin) |
| Withstanding Voltage | 800V to 1500V (pin count dependent) |
| Wire Gauge | 22AWG (2-4 pin) to 26AWG (8 pin) |
| Insulator Material | PA66 (high-strength engineering plastic) |
| Contact Material | Brass with gold plating |
| Mating Cycles | ≥100 operations |
| Contact Resistance | ≤3mΩ (initial) |
| Operating Temperature | -25°C ~ +85°C |
| Protection Rating | IP67 (mated condition) |
| Salt Mist Resistance | 48 hours |
| Shielding Options | Unshielded or Shielded |
| Termination Styles | Solder, PCB, or flying-leads (panel mount) |
| Cable Jacket Options | PVC or PUR |
All materials are RoHS compliant. Every M8 connector undergoes 100% inspection for continuity, insulation resistance, and dielectric withstand. IP67 sealing is verified on a sample basis per batch using actual immersion testing.
The M8 Series Waterproof Connector is one of the most widely used industrial connectors globally, serving applications across automation, process control, and field instrumentation.
- Industrial Sensors — Proximity, photoelectric, inductive, capacitive, and temperature sensors.
- Packaging & Conveyor Systems — Material handling equipment, bottling lines, and palletizing systems.
- Outdoor LED Displays & Lighting — Modular LED screens, tunnel lighting, and architectural lighting.
- Safety Systems — Light curtains, safety interlock switches, and emergency stop devices.
- Fieldbus Networks — IO-Link, AS-Interface, DeviceNet, and PROFIBUS connections.
- Renewable Energy — Solar tracking systems, wind turbine sensors, and battery storage monitoring.
- Robotics — End-of-arm tooling, gripper sensors, and force/torque feedback modules.
A German packaging machinery manufacturer was experiencing intermittent sensor failures on a high-speed bottling line due to connector corrosion from washdown chemicals. The existing connectors were IP65-rated but showed visible corrosion after 12 months. Reunion supplied the M8 series with IP67 sealing, PUR cables, and 4-pin shielded configurations. Over 1,200 connectors were installed across 40 packaging lines. After 18 months of daily washdown, the client reported zero connector-related failures — a significant improvement over the previous 8-12% annual failure rate. The client has since standardized Reunion's M8 connectors across all new machinery.
| Aspect | Reunion M8 Series | Premium European M8 Brands | Low-Cost Unbranded M8 |
| Price | Volume-friendly pricing | 3-4× higher | Cheaper upfront |
| IP67 Verification | Batch immersion-tested | Batch-tested | Not verified |
| 100% Electrical Testing | Every unit | Sample-based | Random or none |
| Shielding Options | Unshielded and shielded — Standard | Usually both, but at premium | Limited or inconsistent |
| Cable Assembly | In-house controlled, PUR/PVC options | Often outsourced | Manual, inconsistent |
| Traceability | ERP traceable from resin to finished connector | Yes | None |
| Lead Time | 12-15 days | 4-8 weeks | Unpredictable |
| Customization MOQ | Low (100 pieces for custom assemblies) | High (500+) | Not offered |
| Technical Support | 24-hour response from 10-person engineering team | Good but slower | Limited |
| ISO Certifications | 9001, 14001, 13485 | Usually 9001 | Typically none |
The Reunion advantage: You receive documented quality, full DIN compliance, and verified IP67 sealing at cost-effective pricing. With in-house manufacturing and full traceability, your M8 connectors deliver consistent performance — without the premium cost of European brands or the uncertainty of unbranded alternatives.
| Certification | Scope |
| ISO 9001:2015 | Quality management — design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management — verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management — applicable for M8 used in diagnostic or monitoring equipment. |
| RoHS | Restriction of hazardous substances — compliance with EU Directive. |
Reunion's M8 production line operates under statistical process control (SPC). IP67 sealing is verified on every production batch through actual immersion testing (1m, 30 minutes). Test records, material certificates, and inspection reports are retained for each batch, supporting your quality audits and customer documentation requirements.
| Item | Detail |
| Standard Packaging | Anti-static bags with individual cavity protection; reinforced cartons with cushioning. |
| Lead Time | Samples: 5-7 days; Production orders: 12-15 days; Custom cable assemblies: 15-20 days. |
| Shipping Methods | Bulk: sea or air freight; Samples: express (DHL, FedEx, TNT, UPS, EMS). |
| Delivery Terms | EXW, FCA, FOB, CIF, CPT — flexible. |
| Warranty | 12 months from shipment against manufacturing defects under proper installation and use. |
| Technical Support | Engineering response within 24 hours; installation guides and cross-reference documentation available. |
| Inventory Programs | Consignment stock and VMI (Vendor Managed Inventory) available for long-term volume contracts. |
Unshielded M8 connectors are suitable for standard sensor and actuator applications in relatively low-EMI environments. They are lower cost and easier to cable. Choose unshielded when your cable runs are short (<10m) and you are not operating near motors, variable frequency drives, or welding equipment.

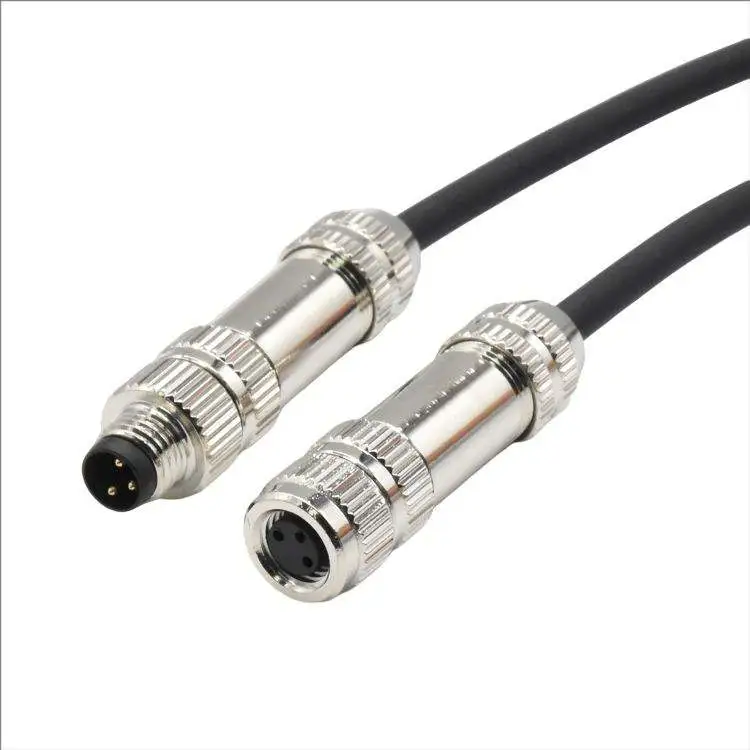

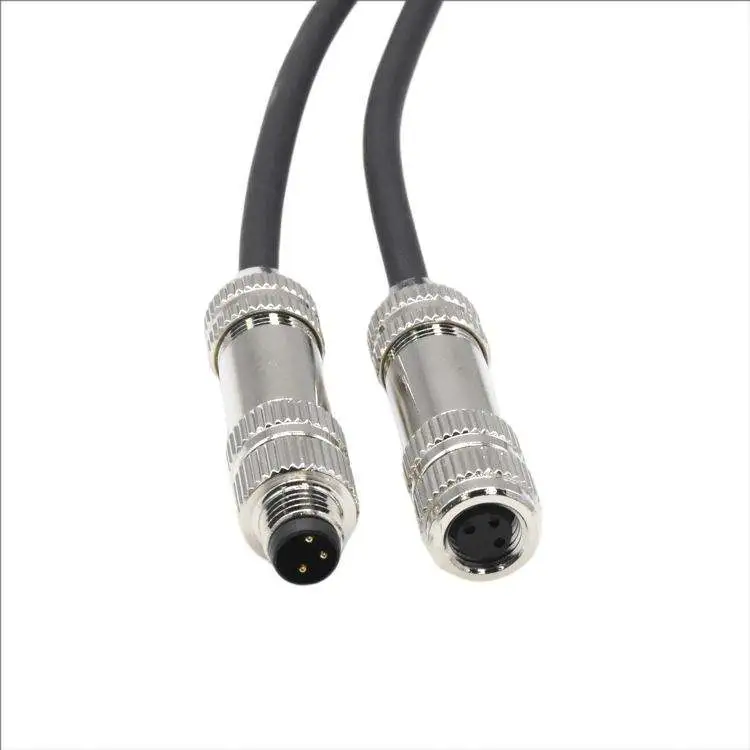

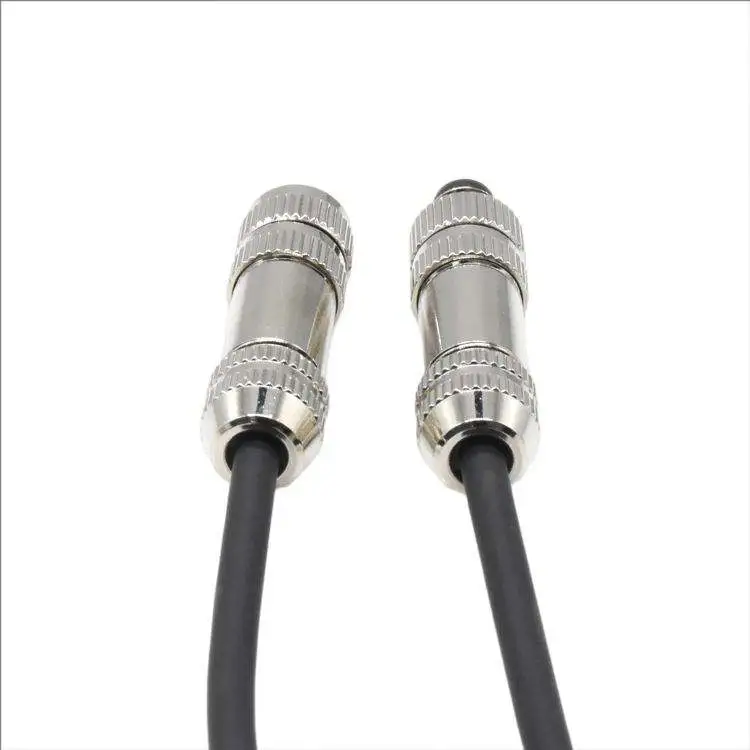

360° shielded M8 connectors feature a metal shell that provides continuous grounding from the cable shield through the connector body to the mating device. Choose shielded for:
- Applications with long cable runs (>10m)
- Installations near motors, VFDs, or welding equipment
- Analog sensor signals (4-20mA, 0-10V) where noise rejection is critical
- Fieldbus networks (PROFIBUS, DeviceNet, IO-Link) requiring defined impedance
Reunion offers both options as standard, with shielded versions priced at a minimal premium. For shielded applications, we recommend using PUR cables with braided shields and proper grounding at one end only (to avoid ground loops).
Yes — the M8 series is fully compatible with IO-Link communication. IO-Link uses a standard 4-pin configuration (power, ground, communication, and optional extra signal). All IO-Link devices require the connector to maintain the signal integrity of the IO-Link communication (typically 230.4 kbps). Reunion's 4-pin shielded M8 connectors are specifically recommended for IO-Link due to:
- EMI shielding — Protects communication from industrial noise.
- Gold-plated contacts — Maintain low contact resistance for reliable data transmission.
- IP67 sealing — Protects against moisture that could create leakage paths affecting signal quality.
To achieve and maintain IP67 sealing, Reunion recommends:
- Mating torque — Hand-tighten the coupling nut until the O-ring contacts the panel surface, then apply additional torque of 0.4-0.6Nm using a torque wrench. Do not exceed 0.8Nm, as over-tightening can damage the O-ring or the connector threads.
- O-ring inspection — The pre-installed O-ring should be inspected at each disconnect. Replace the O-ring if deformation, cracking, or hardening is visible. O-rings are available as service parts from Reunion.
- Cable bend radius — Maintain a minimum bend radius of 5× cable diameter at the connector entry to prevent stress on the cable seal.
- Cleaning — For washdown applications, clean the connector exterior with mild detergent and water. Do not use pressure washers directly on the mating interface.
- Replacement schedule — For demanding applications (daily washdown, chemical exposure), we recommend replacing O-rings annually as part of preventive maintenance. For standard factory-floor environments, O-ring replacement every 2-3 years is typically sufficient.
