The Reunion RJ45 signal connector is a purpose-built industrial Ethernet interconnect that bridges the familiar RJ45 interface with harsh-environment durability. Designed for factory automation, machine vision, outdoor surveillance, LED screen, and LED lighting, this connector delivers reliable 10 Gbps data transmission across PROFINET, EtherNet/IP, EtherCAT, and standard TCP/IP networks.

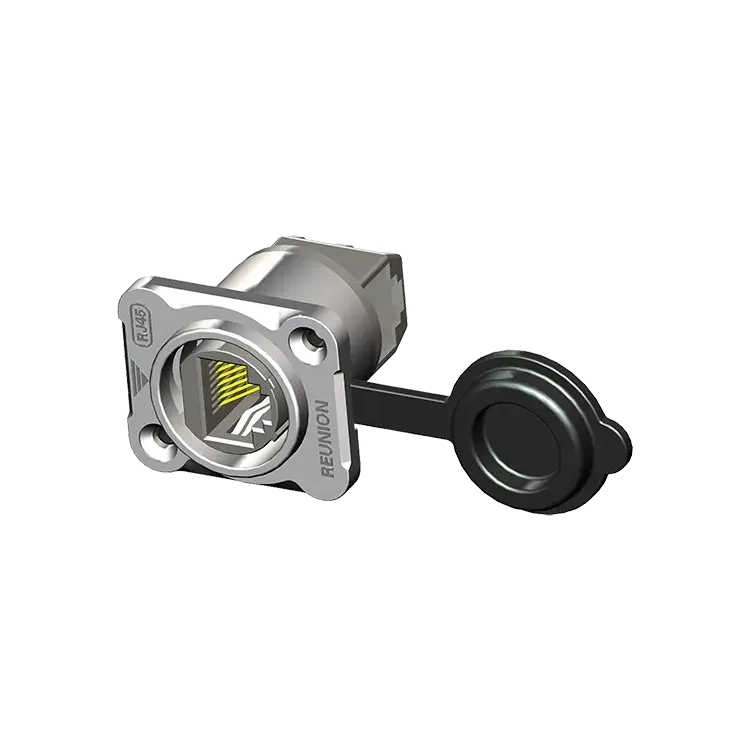

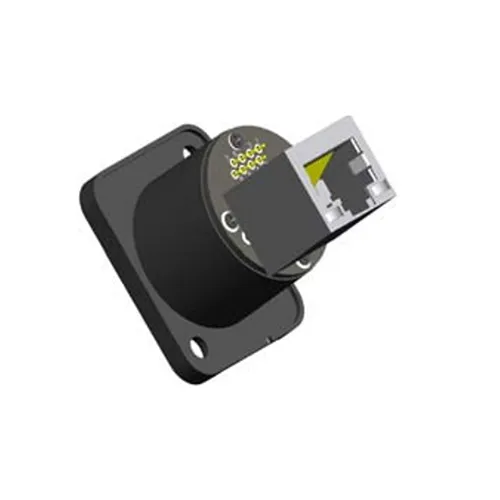

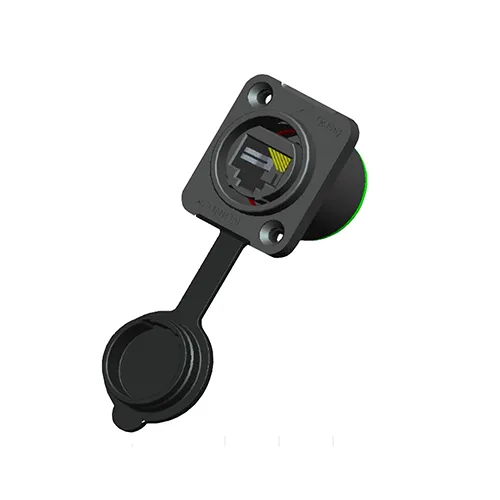

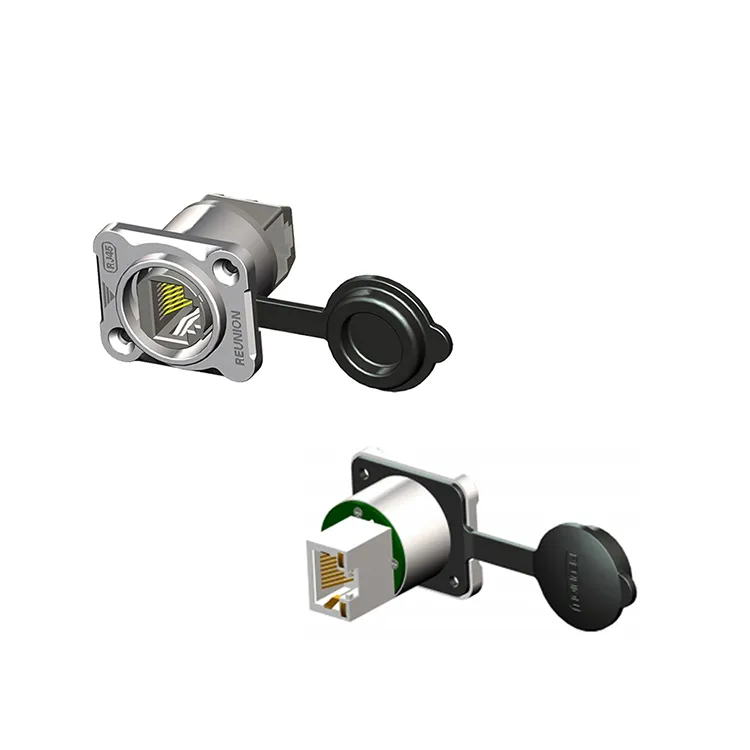

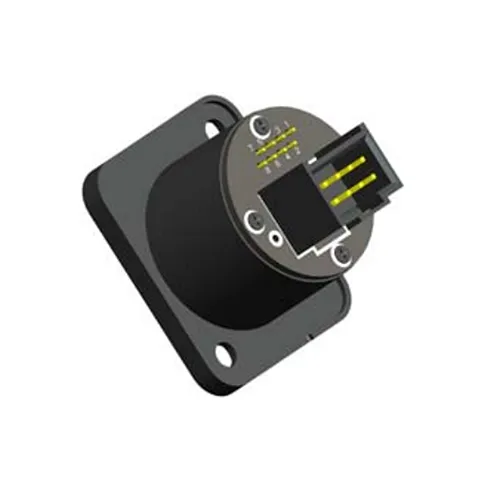

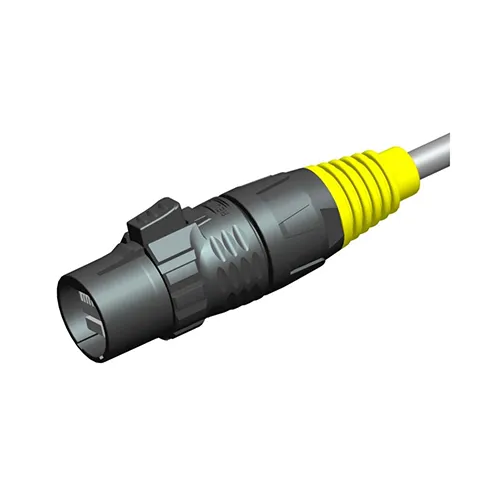

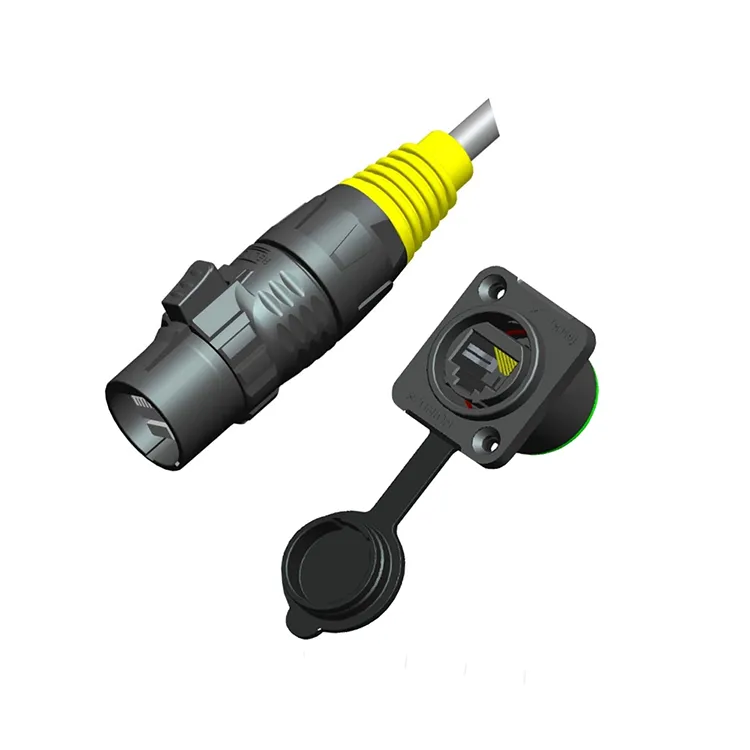

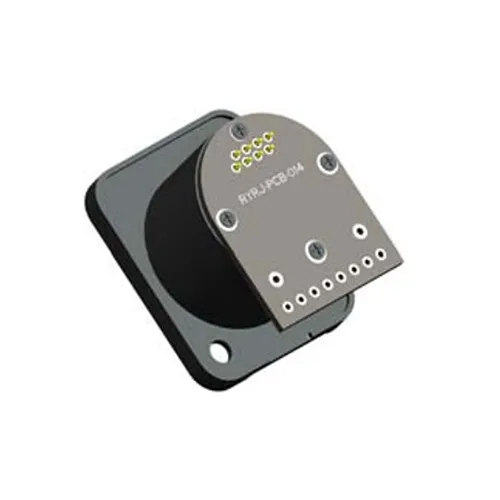

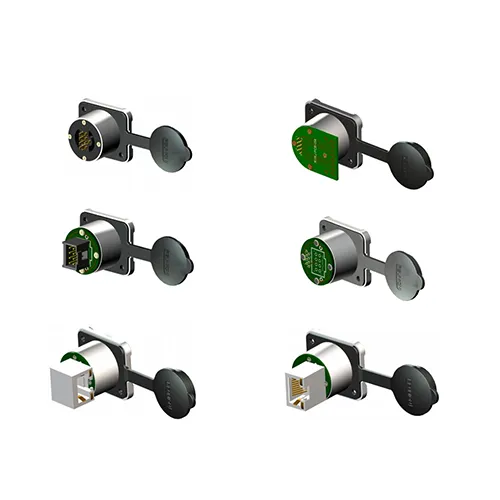

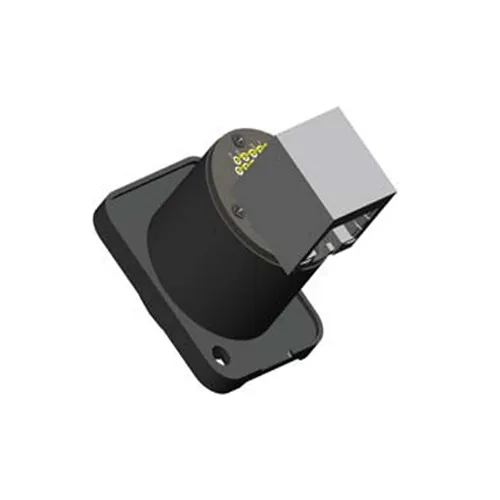

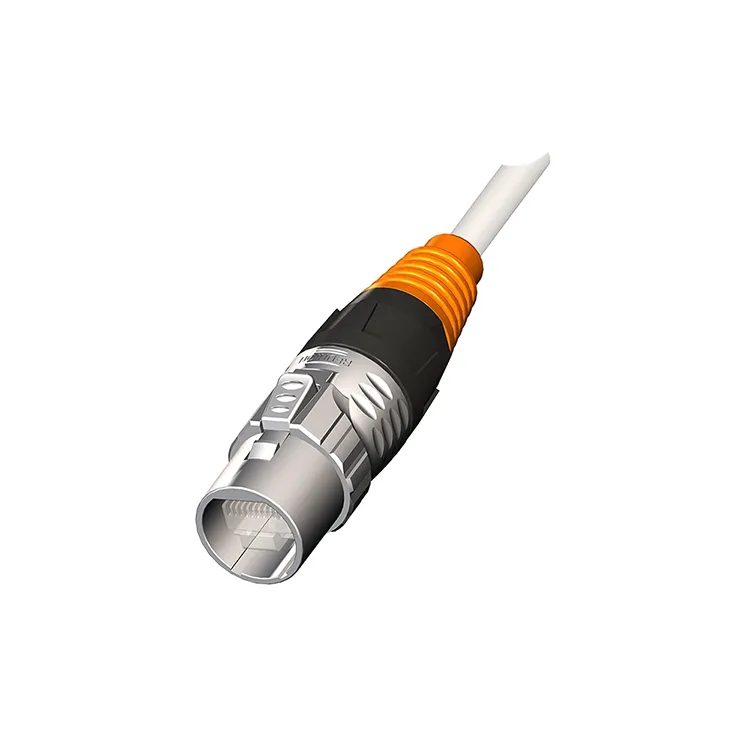

Every unit undergoes 100% electrical testing before shipment — a practice we maintain across cable-mount, panel-mount, and PCB-mount configurations, with straight or right-angle cable exits to suit your mechanical layout.
For engineers specifying Ethernet physical layers in control cabinets, robotic cells, or outdoor pole-mounted equipment, this RJ45 signal connector eliminates the reliability gap between office-grade parts and overpriced European specialty brands.
| Parameter | Reunion Industrial RJ45 Signal Connector | Commercial Plastic RJ45 |
| Housing | Zinc alloy, PA6 optional | Polycarbonate/ABS |
| Ingress Protection | IP50 / IP67 (mated) | None (IP20 typical) |
| Mating Cycles | ≥2,000 (verified) | 200–500 |
| Operating Temp | -40°C to +85°C | 0°C to +60°C |
| Insertion Loss (100m CAT6a) | ≤2.5 dB @ 500 MHz (typical) | Not specified |
| Return Loss | ≥10 dB @ 500 MHz | Not guaranteed |
| Specification | Value |
| Data Rate | Up to 10 Gbps (CAT6a / CAT7) |
| Characteristic Impedance | 100 Ω ± 5% (differential) |
| Current Rating | 1.5 A per contact (continuous) |
| Voltage Rating | 50 V |
| Contact Resistance (initial) | ≤10 mΩ |
| Insulation Resistance | ≥500 MΩ @ 500 VDC |
| Mating Cycles (industrial) | ≥2,000 — verified by automated durability tester |
| Operating Temperature | -40°C to +85°C (ambient) |
| Protection (mated) | IP50 / IP67 (continuous, 1m for 24h) |
| Cable Compatibility | CAT5e / CAT6 / CAT6a / CAT7 — stranded or solid (AWG 26–22) |
| Locking Options | Quick and convenient turning locking system |
| Cable Exit | Straight (180°) or right-angle (90°) |

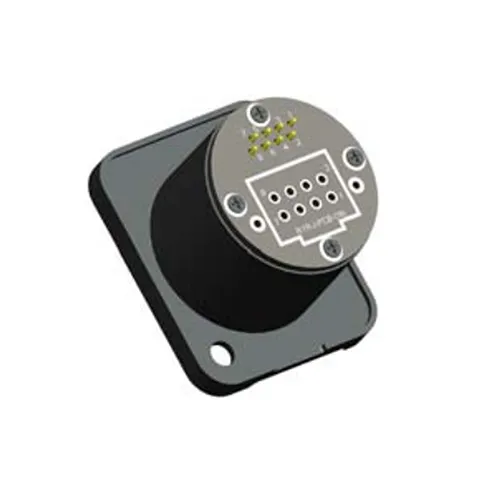

| Termination Method | Solder-cup or IDC (field-installable) — tooling guide provided |
| Certification | Applicable Standard | Evidence |
| ISO 9001:2015 | Quality Management | Full traceability via ERP — batch records retained 10 years |
| ISO 14001:2015 | Environmental | Waste-water treatment in plating line verified |
| ISO 13485:2016 | Medical Devices | Suitable for patient-monitoring and diagnostic Ethernet links |
| RoHS / REACH | Substance Compliance | Test reports from SGS (2025) |
| Aspect | Reunion RJ45 Industrial | Premium European Brand | Unbranded Plastic |
| Lead Time (sample) | 7 days | 4–6 weeks | Stock |
| Lead Time (bulk) | 12–15 days | 6–8 weeks | 2–3 days |
| Customization (color, cable length, marking) | Low MOQ (100 pcs) | High MOQ (500 pcs) | Not offered |
| 100% Hi-pot & DWV Test | Yes (each unit) | Sampling only | Sampling only |
Pricing based on Q1 2026 FOB Shenzhen — volume discounts available from 500 pcs.
A1: Our internal lab data (Agilent E5071C VNA) shows ≤1.8 dB insertion loss @ 250 MHz for CAT6 and ≤2.5 dB @ 500 MHz for CAT6a over 100m — well within TIA limits. The connector itself contributes <0.1 dB per mated pair.
A2: 2-year limited warranty against material and workmanship defects, or 2,000 mating cycles — whichever occurs first. This covers both the metal shell and contact spring force retention.
