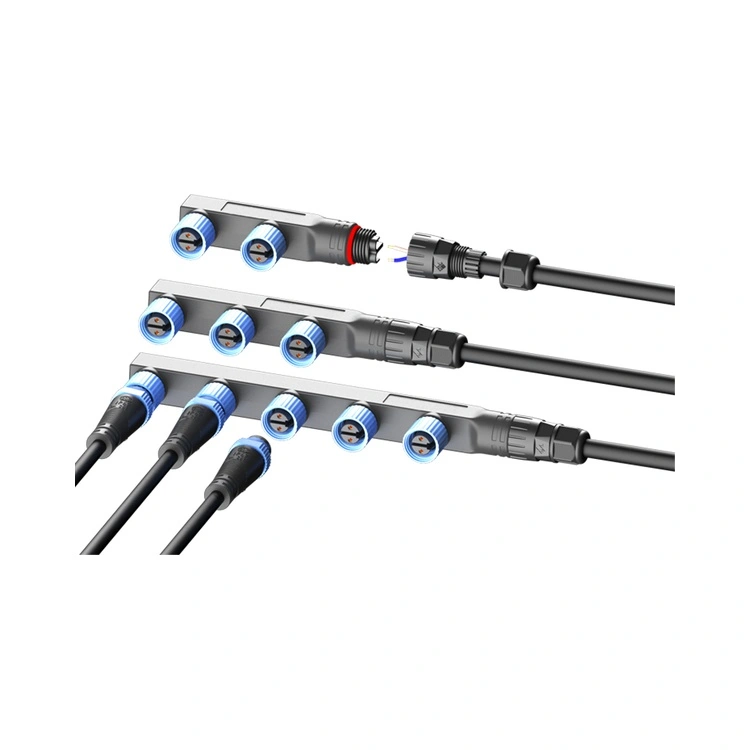

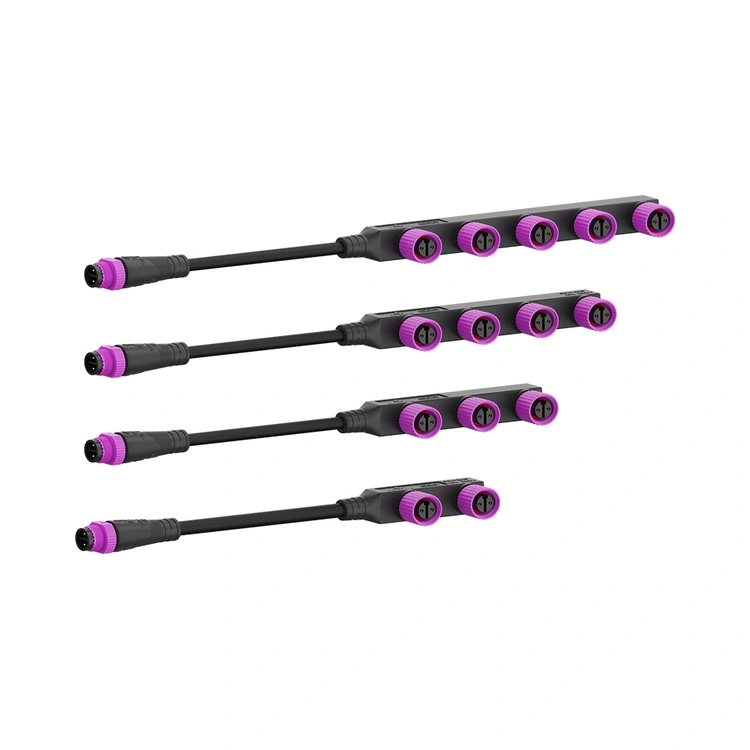

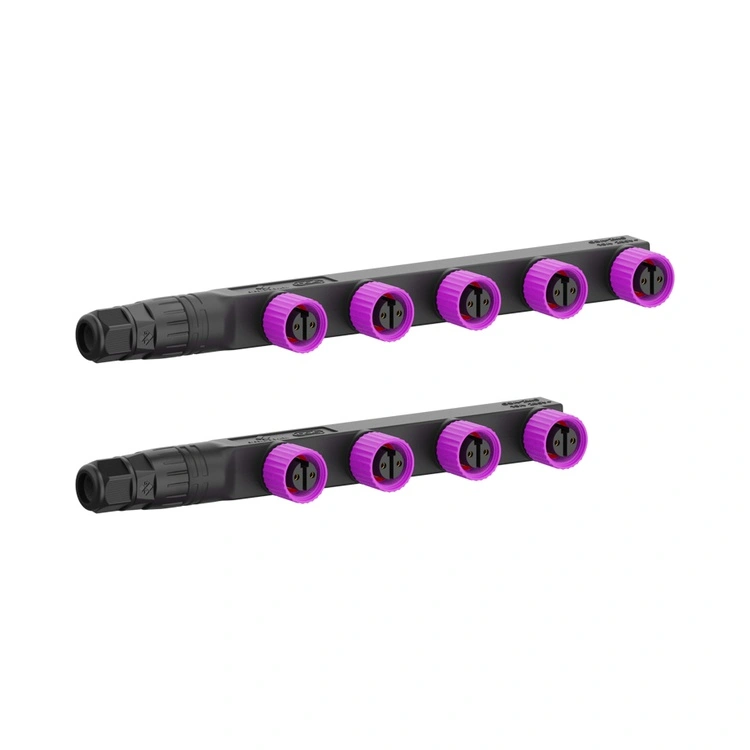

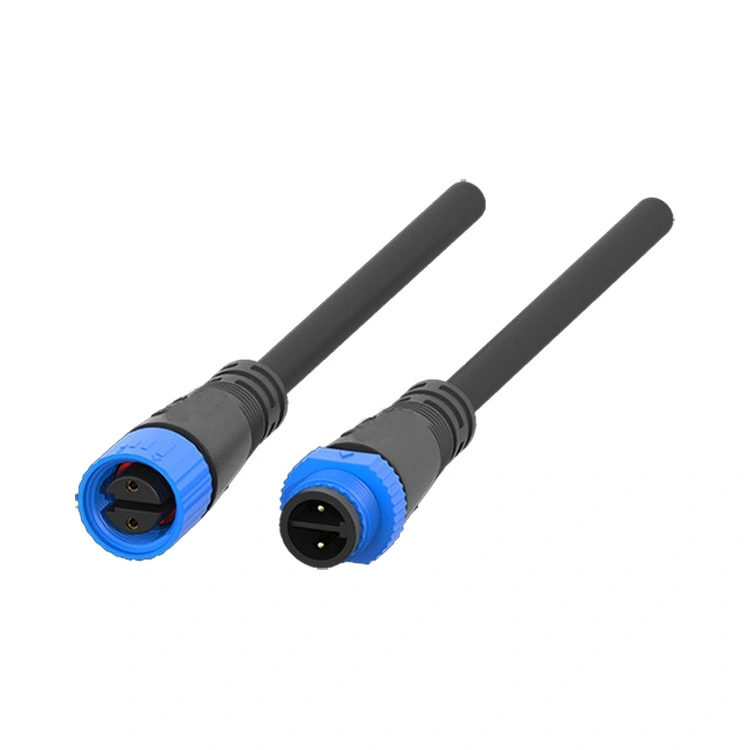

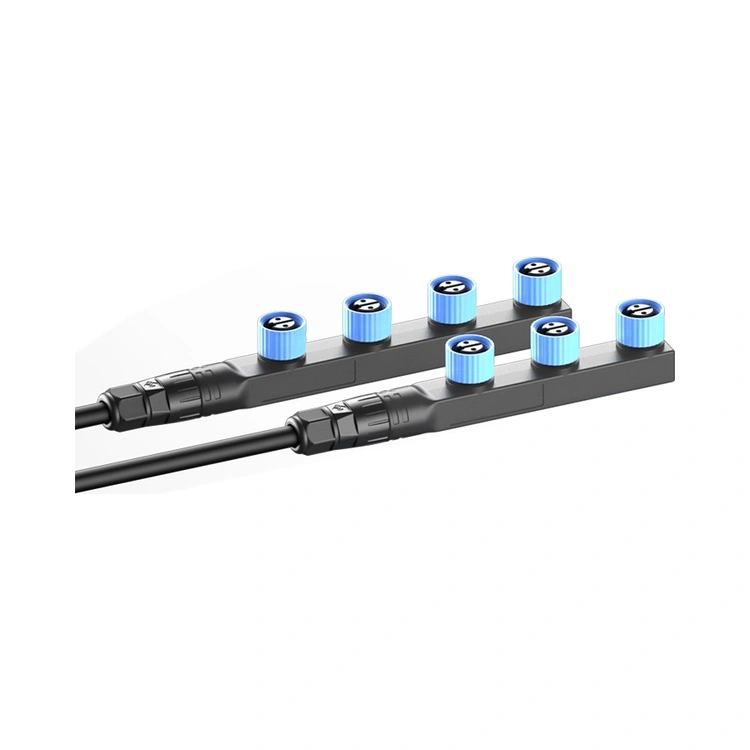

The M15 Series LED Light Connector is Reunion's specialized interconnect for the outdoor LED lighting industry—one of the fastest-growing segments in industrial illumination. Certified to LED lighting interface standards, this threaded circular connector combines a compact 15mm F-type design with IP67-rated sealing, making it suitable for street lights, tunnel lighting, architectural illumination, stadium floodlights, and outdoor LED displays.
The connector's housing is constructed from high-strength PA66 thermoplastic, providing excellent weather resistance, corrosion protection, and mechanical durability without the weight and corrosion concerns of metal alternatives.
A key safety feature of the M15 series is its multi-core internal partition design—separate barriers between power conductors prevent short circuits from wire insulation damage, a critical requirement for high-power LED installations where power supplies can deliver over 500W.

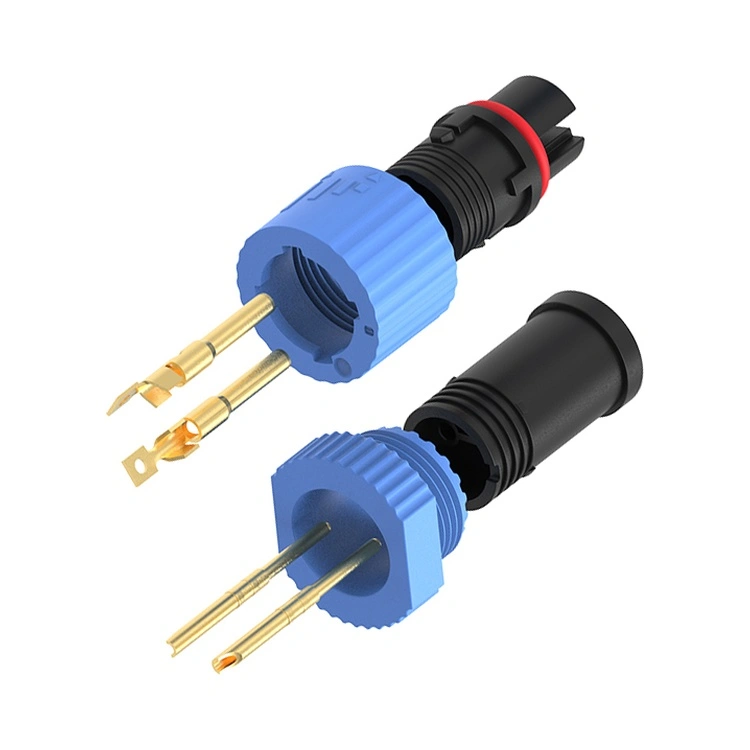

Contacts are fabricated from copper alloy with gold plating, maintaining low and stable contact resistance (≤3mΩ) over the connector's service life.

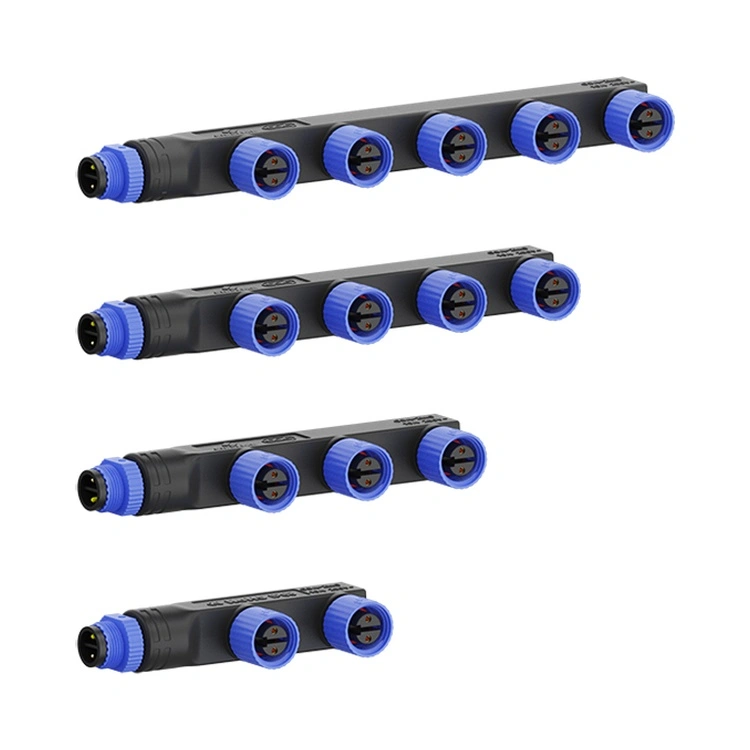

Available in 2-, 3-, 4-, and 5-pin configurations with current ratings up to 10A, the M15 series supports both constant-current and constant-voltage LED drivers.
Reunion manufactures the M15 series through a vertically integrated process—from precision injection molding through automated assembly and 100% electrical testing. The threaded locking mechanism ensures vibration-resistant mating—critical for installations exposed to wind, traffic vibration, and thermal cycling from -40°C to +105°C.
For engineers designing outdoor lighting systems, this connector provides a reliable, safe, and compact solution specifically tailored for LED applications, backed by Reunion's 15 years of manufacturing experience.
The M15 series is purpose-built for outdoor LED lighting, with features that address the specific demands of long-term outdoor installations.
| Feature | Benefit |
| IP67 Environmental Sealing | Withstands continuous immersion—reliable for street lights, tunnel lighting, and outdoor displays exposed to rain, snow, and flooding. |
| Multi-Core Internal Partitions | Separate barriers between power conductors—enhances electrical safety in high-power LED installations. |
| Compact F-Type Design | Space-saving 15mm interface—ideal for slim LED luminaires and modular lighting systems with tight spacing. |
| PA66 Housing | Weather-resistant, corrosion-proof—designed for outdoor service life. |
| Gold-Plated Copper Alloy Contacts | Low contact resistance (≤3mΩ) and corrosion protection—maintains consistent LED driver performance over time. |
| Threaded Locking Mechanism | Vibration-resistant mating—prevents loosening from wind, traffic vibration, and thermal cycling. |
| 2-5 Pin Configurations | Supports constant-current, constant-voltage, and mixed power/signal LED applications. |
| -40°C to +105°C Operation | Wide temperature range covers extreme outdoor conditions—from Arctic winters to desert summers. |
| Parameter | 2-pin | 3-pin | 4-pin | 5-pin |
| Voltage Rating | 250V | 250V | 125V | 125V |
| Current Rating | 10A | 10A | 10A | 10A |
| Wire Section | 20AWG ~ 16AWG | 20AWG ~ 16AWG | 20AWG ~ 16AWG | 20AWG ~ 16AWG |
Operating Temperature:-40°C ~ +105°C
Protection Rating:IP67 / IP68 (mated)
Housing Material:PA66
Contact Material:Gold-plated copper alloy
Contact Resistance:≤3mΩ
Mating Cycles:≥500
Design Standard:Complies with LED lighting interface standards
Flammability Rating:UL 94 V-0
All materials RoHS compliant
The M15 Series LED Light Connector is deployed across outdoor lighting applications where reliability and safety are paramount.
Street & Highway Lighting– LED street lights and highway illumination systems.
Tunnel Lighting– Highway and railway tunnel illumination.
Architectural & Façade Lighting– Building outlines, bridges, and monuments.
Stadium & Sports Lighting– Large-area floodlighting systems.
Outdoor LED Displays– Modular billboards and large-format screens.
Landscape & Park Lighting– Path lighting, decorative installations, and garden illumination.
Solar-Powered Lighting– Off-grid street and pathway lighting.
| Certification | Scope |
| ISO 9001:2015 | Quality management—design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management—verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management—applicable for M15 used in diagnostic or monitoring equipment. |
| UL Recognized | Component-level safety certification for North American markets. |
| RoHS | Restriction of hazardous substances—compliance with EU Directive. |
Reunion's M15 LED connector production line operates under strict process controls. IP67 sealing is verified on every production batch through actual immersion testing. Test records, material certificates, and inspection reports are retained for each batch, supporting your quality audits and customer documentation requirements.
The multi-core internal partition design is a safety feature specifically engineered into the M15 series for LED lighting applications. In high-power LED installations, the power supply can deliver >500W at voltages up to 350V DC. If a wire insulation layer becomes damaged (during installation or from vibration), exposed conductors could short-circuit—causing driver failure or even fire. The internal partitions provide physical separation between conductors within the connector body, preventing contact even if insulation is compromised. This feature is not standard in general-purpose connectors (M8/M12) and is a key differentiator for the M15. Reunion's partitions are molded integrally with the insulator—not added as separate components—ensuring they remain effective throughout the connector's service life.
To achieve and maintain IP67 sealing in outdoor LED installations, Reunion recommends:
Mating torque– Hand-tighten the coupling nut until the O-ring contacts the panel surface, then apply additional torque of0.4-0.6Nmusing a torque wrench. Do not exceed 0.8Nm.
O-ring inspection– The pre-installed O-ring should be inspected at each maintenance cycle. Replace if deformation, cracking, or hardening is visible.
O-ring replacement schedule– For outdoor installations with daily thermal cycling, replace O-rings every 2-3 years as part of preventive maintenance.
Cable bend radius– Maintain a minimum bend radius of 5× cable diameter at the connector entry to prevent stress on the cable seal.
Cable orientation– Orient the cable exit downward to prevent water pooling near the seal interface.
Cleaning before reconnection– Clean connector exteriors with mild detergent and water before reconnection to prevent debris from compromising the seal.
