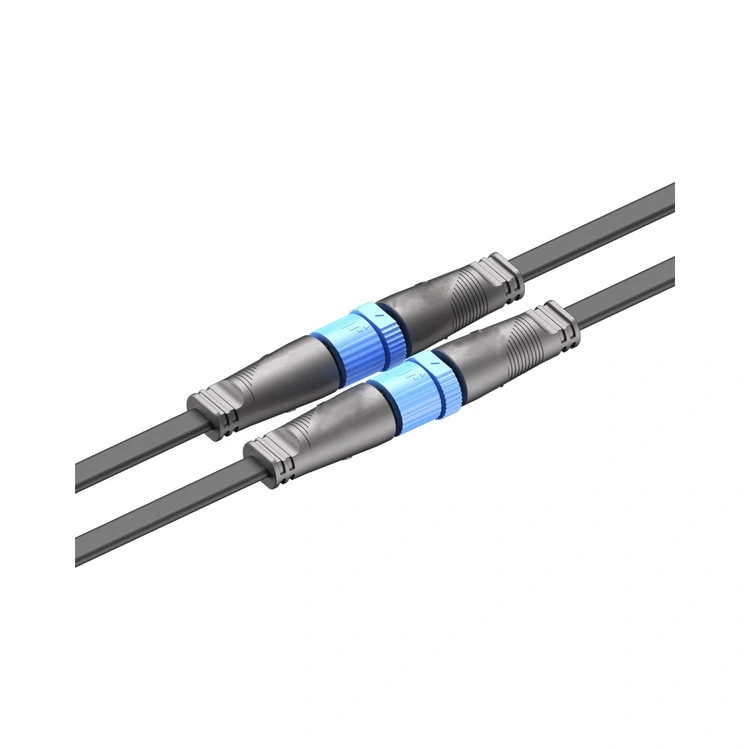

The M15 series waterproof connector is not merely a threaded circular interface; it is Reunion's dedicated safety barrier for high-power LED systems where space constraints meet extreme weather exposure. While standard M12 options handle low-current signals, this 15mm platform accommodates 16–20AWG conductors carrying up to 10A per pin—critical for driving modern 500W+ LED engines in architectural and infrastructure projects.

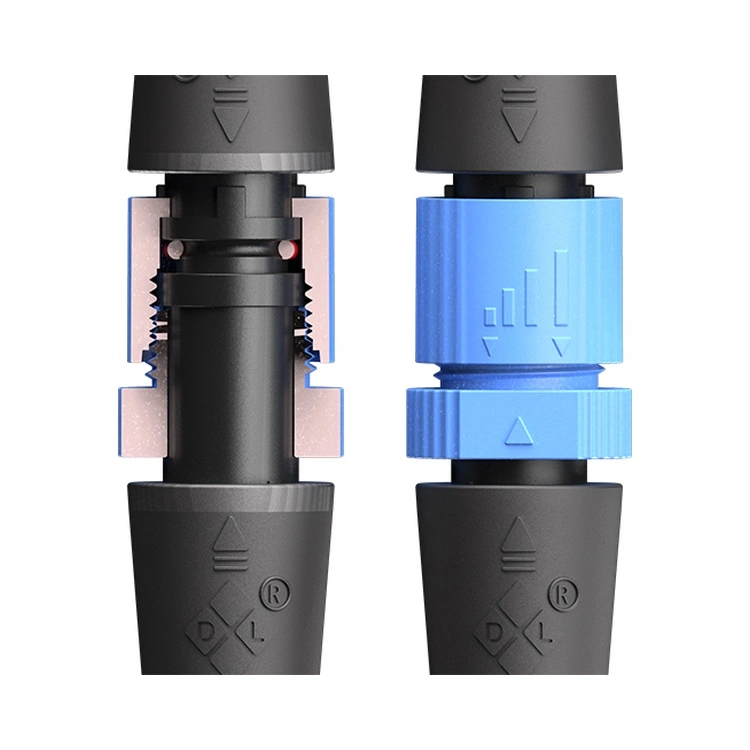

Unique engineering differentiator: The Type-design housing integrates multi-core internal partitions—physical barriers that separate power and signal lanes within the same shell. In real-world installations (e.g., tunnel lighting with 24/7 operation), this partition prevents catastrophic short circuits if individual wire insulation wears against vibration, a failure mode often overlooked by generic circular connectors.

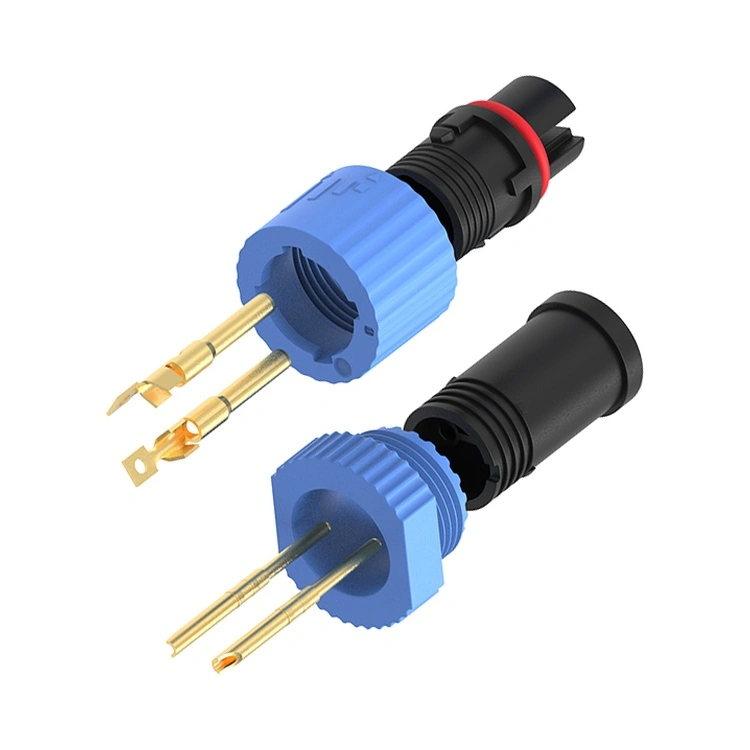

Reunion manufactures this series via a vertically integrated process: precision PA66 injection molding, automated gold-plating on copper alloy contacts, and 100% electrical testing per batch. Available in 2-, 3-, 4-, and 5-pin layouts, the M15 series waterproof connector supports both constant-current and constant-voltage LED drivers, with a threaded locking nut that maintains torque integrity under wind-induced resonance and daily thermal cycling .
| Feature | Engineered Benefit for Your Project |
| IP67/IP68 Mated Sealing | Withstands temporary floods (IP67) and continuous immersion up to 1.5m (IP68)—validated via batch-level water ingress tests |
| Compact 15mm Type Design | Fits into slimline LED luminaires and pole-mounted displays where every millimeter counts; reduces wind load on fixtures. |
| Multi-Core Internal Partitions | Safety-first: Physical separation between power circuits (250V/10A) prevents arcing from insulation creepage |
| PA66 Housing | Outlasts metal housings in coastal or chemically aggressive environments. |
| Gold-Plated Contacts | Maintains ≤3mΩ contact resistance over 500+ mating cycles |

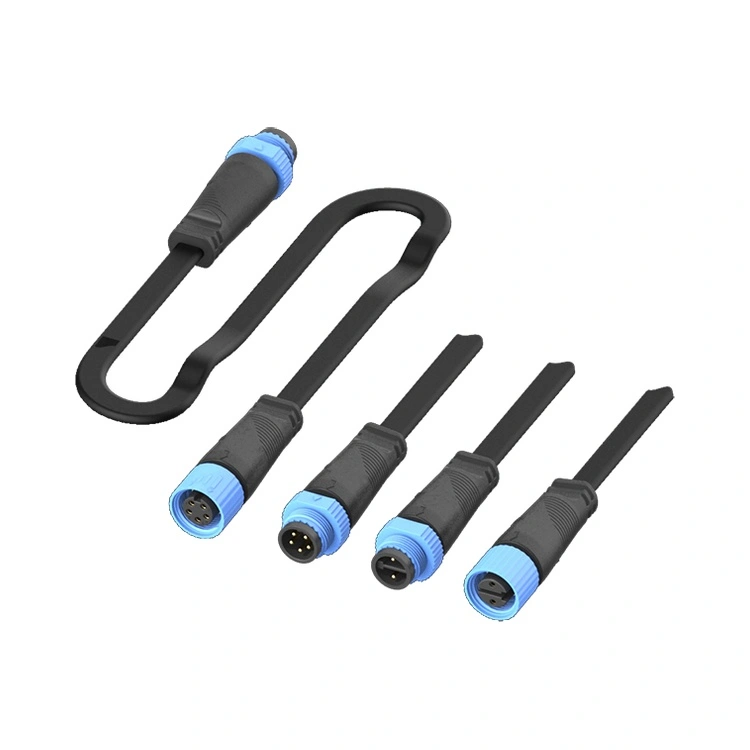

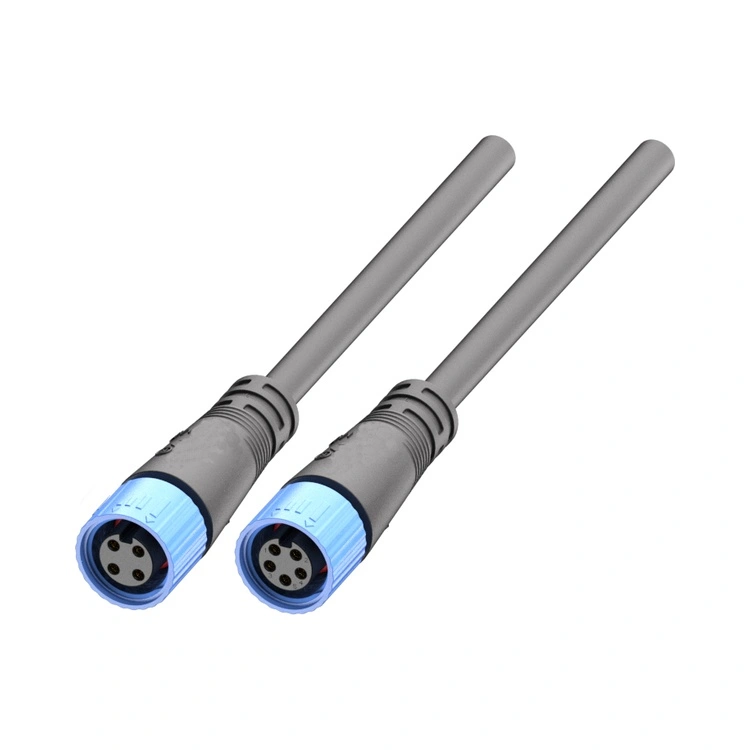

| Cores | 2,3,4,5Pins optional |
| Parameter | 2-pin | 3-pin | 4-pin | 5-pin |
| Voltage Rating | 250V | 250V | 125V | 125V |
| Current Rating (per pin) | 10A | 10A | 10A | 10A |
| Wire Range | 20AWG ~ 16AWG | 20AWG ~ 16AWG | 20AWG ~ 16AWG | 20AWG ~ 16AWG |
| Dielectric Withstanding Voltage | 1500V AC | 1500V AC | 1000V AC | 1000V AC |
| Insulation Resistance | ≥100MΩ (500V DC) | ≥100MΩ | ≥100MΩ | ≥100MΩ |
Operating Temperature:-40°C ~ +105°C
Protection:IP67 / IP68 (verified under mated condition with supplied O-ring)
Housing:PA66
Contact:Gold-plated copper alloy
Contact Resistance:≤3mΩ
Mating Durability:≥500times
Flammability:UL 94 V-0
Compliance:RoHS, REACH
| Aspect | Reunion M15 Series | Premium EU/US Brands | Low-Cost Alternatives |
| Unit Price | Volume-competitive (ask for tiered pricing) | 2–3x higher | Cheaper upfront, but hidden failure costs |
| Internal Safety Partitions | Yes – standard across all pins | Rarely offered | Always absent |
| Housing Material | PA66 | PA or zinc-alloy | Recycled/unknown grade – turns brittle in 2 years |
| Contact Plating | Gold plasting | Gold or silver (0.1–0.2µm) | Tin or no plating |
| Temp Range | -40°C ~ +105°C | -25°C ~ +85°C | -10°C ~ +60°C |
| Traceability | ERP-coded from resin batch to final assembly | Yes | None |
| Lead Time | 12–15 days | 6–8 weeks | Unpredictable (30–60 days) |
| Customization MOQ | 100 pcs (for cable assemblies) | 500+ pcs | Not offered |
| Engineering Support | 24h response, 10 in-house engineers | Slower due to tiered support | No technical backing |
Reunion's manufacturing facility (ISO 9001, 14001, and 13485 certified) operates under strict statistical process control. Every production lot of the M15 series waterproof connector includes:
Raw material
In-process injection molding records (pressure, temperature, cycle time)
100% electrical testing (Hi-pot, insulation resistance, and contact resistance)
IP67 immersion test reports (random sample from each batch – photos and videos retained)
The M15 series waterproof connector is not a generic automation connector repurposed for lighting. It addresses three real gaps:
Current capacity: M12/M8 typically handles 4A max; M15 delivers 10A per pin—essential for 100W+ LED modules.
Safety partitions: The internal barriers are mandatory for SELV (Safety Extra Low Voltage) systems where power and control wires coexist. Without them, a stray wire strand could short 250V to a signal line—destroying drivers.
Durability: M15's PA66 housing with UV stabilizers prevents sun-induced cracking—a known failure mode for standard M12 nylon blends in outdoor pole mounts.
Three engineering reasons:
Thermal expansion match: PA66 expands/contracts with the cable jacket and LED housing, reducing seal shear stress during -40°C~+105°C swings.
Galvanic corrosion avoidance: In coastal or de-icing salt environments, metal connectors suffer crevice corrosion even with plating. PA66 eliminates this entirely.
Weight reduction: 40% lighter than equivalent metal shells—critical for cantilevered luminaire arms under wind load.
For projects that explicitly require metal shielding (e.g., EMI-sensitive medical lighting), Reunion offers alternative series—but for 95% of outdoor LED applications, PA66 outperforms metal in total cost of ownership.
Mating torque:Hand-tighten until O-ring seats, then apply 0.4–0.6 Nm with a torque wrench. Never exceed 0.8 Nm (over-compression distorts the O-ring).
O-ring inspection:Replace the pre-installed NBR O-ring every 24 months for installations with daily thermal cycling >30°C delta.
Cable entry:Maintain a 5× cable diameter bend radius at the strain relief to prevent micro-gaps around the wire insulation.
Orientation: Always route the cable downward to avoid water pooling at the backshell interface.
Reunion supplies factory-assembled cable harnesses with pre-torqued connectors—eliminating field installation variability for critical infrastructure projects.
