Modern factories cannot afford downtime from loose cables or miswired sensors. Reunion's Industrial automation wiring harness consolidates power, signal, data, and communication lines into a single routed assembly – factory-tested and ready to install. With ISO 9001-certified production, full ERP traceability, and in-house overmolding, we deliver harnesses that survive harsh shop-floor conditions while simplifying cabinet assembly and field maintenance.Industry Insight (field data): Based on Reunion's post-delivery audits across 200+ automation lines, pre-assembled harnesses reduce cabinet wiring errors by 98% and cut field installation labor by an average of 52% compared to point-to-point methods. These are not theoretical numbers – they are measured from actual automotive and packaging projects.

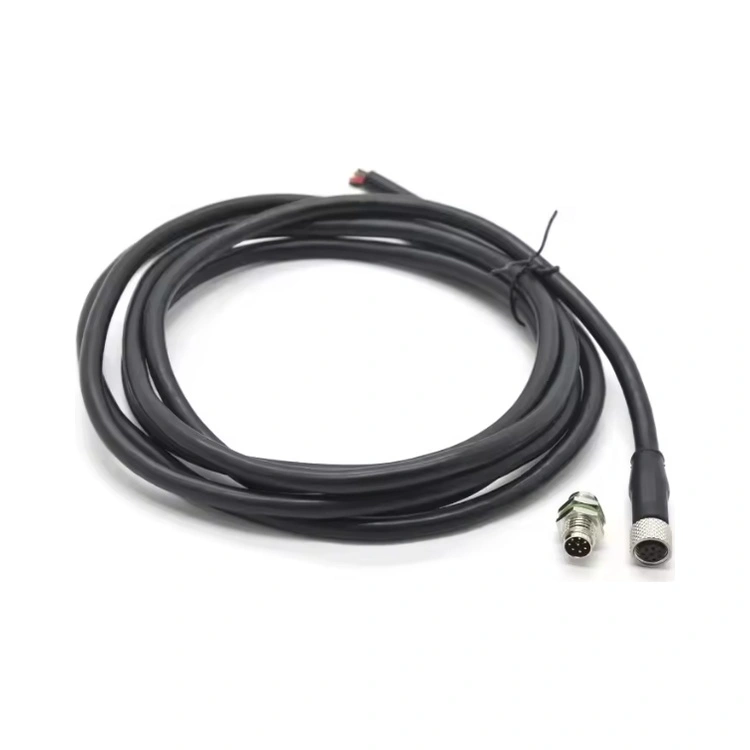

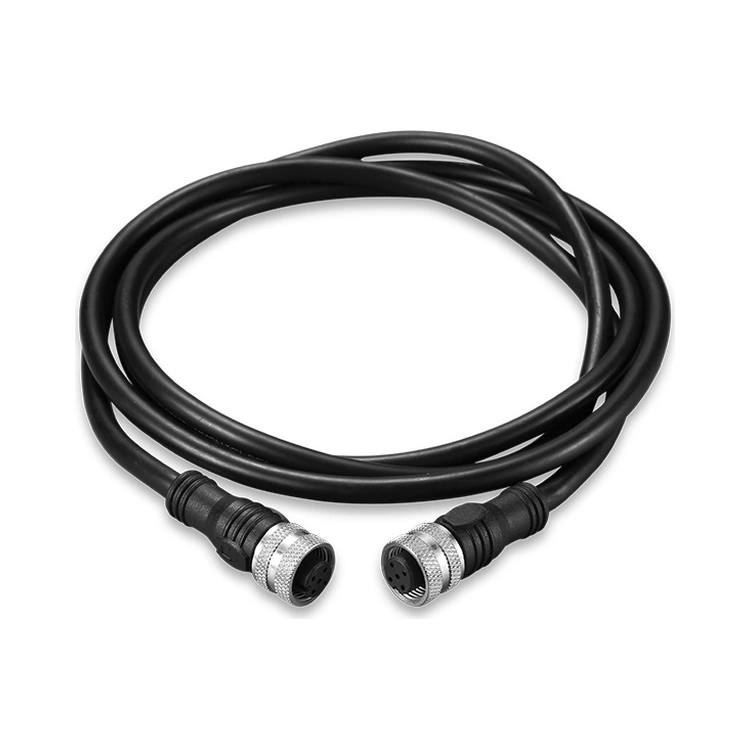

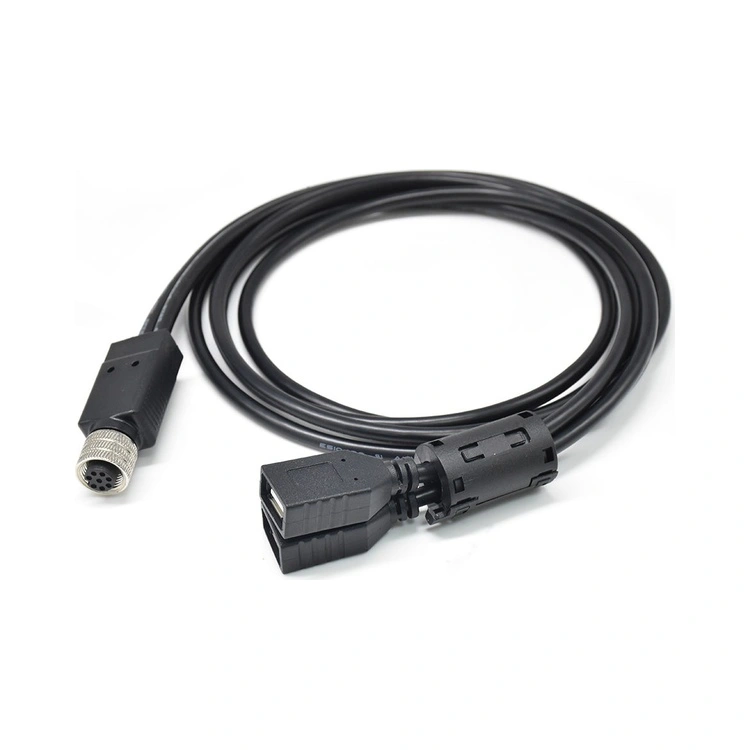

The Industrial automation wiring harness is Reunion's flagship interconnect solution for factory equipment. It replaces dozens of individual cables with a single, professionally routed bundle that terminates in the connectors you specify – M8, M12, RJ45, D-sub, terminal blocks, or custom overmolded types. Each harness is built with UL/CSA/VDE-certified conductors (30 AWG to 10 AWG, stranded or solid), jacketed in PVC, PUR, TPE, silicone, or PTFE based on your thermal, chemical, and flex-life requirements. Reunion's automated cutting, stripping, crimping, and soldering lines ensure ±0.5mm length accuracy and consistent crimp pull-off force – every batch, every time.
Common configurations include:
Control cabinet harnesses – PLC-to-I/O, power distribution, and backplane wiring.
Sensor and actuator harnesses – Proximity, photoelectric, valve connectors with multiple drop points.
Robotic end-of-arm tooling – Power, signal, and Ethernet combined in a PUR jacket rated for 10,000+ flex cycles.
Fieldbus and vision cables – Shielded variants for EtherCAT, PROFINET, Camera Link, and GigE.
| Feature | Benefit – Why Procurement and Engineering Choose This |
| Custom cable configurations | Tailored to your machine layout – eliminates redundant cables and simplifies routing. |
| Pre-assembled and 100% tested | Continuity, insulation resistance, dielectric withstand – every Industrial automation wiring harness leaves with a test report. |
| M8, M12, RJ45, D-sub, terminal blocks, custom connectors | One harness, multiple interfaces – adapts to mixed-vendor equipment without adapters. |
| Foil or braid shielding (≥85% coverage) | Maintains signal integrity near VFDs, servo drives, and welding equipment. |
| PVC, PUR, TPE, silicone jackets | Oil-resistant, flexible, high-temp, or washdown-ready – match your exact environment. |
| Custom overmolding | Integral strain relief and IP67 sealing – eliminates connector backshell failures. |
| 2-year workmanship warranty | Covers open circuits, short circuits, and connector detachment under normal use. |
| Parameter | Specification |
| Cable types | PVC, PUR, TPE, silicone, PTFE (specify application) |
| Conductor sizes | 28 AWG to 16 AWG (stranded or solid, tinned or bare copper) |
| Connector types | M8, M12 (A/B/D-coded), RJ45, D-sub (9/15/25/37 pin), terminal blocks, custom overmolded |
| Shielding options | Unshielded, foil (100% coverage), braid (≥85% coverage), foil + braid combination |
| Jacket materials | PVC (standard), PUR (oil and grease resistant), TPE (robotic/flex), silicone (high-temp up to 200°C) |
| Operating temperature | -40°C to +105°C |
| Testing (100% of production) | Continuity, insulation resistance (≥100 MΩ), dielectric withstand (1500VAC), visual and dimensional inspection |
| Protection rating | Up to IP67 (with overmolded connectors, dependent on mating side) |
Primary application fields include:
Machine control systems – PLC racks, I/O modules, safety relays, power supplies.
Sensor and actuator networks – Inductive/proximity sensors, photoelectric sensors, ultrasonic sensors, and valve manifolds.
Robotics and collaborative robots – End-of-arm tool changers, grippers, vision guidance, force-torque sensors.
Packaging machinery – Bottling fillers, cappers, labelers, shrink wrappers, palletizers.
Material handling – Conveyor drives, AGV navigation, warehouse shuttles, ASRS systems.
Machine vision – GigE, USB3, Camera Link cables with power-over-coax options.
Automotive manufacturing – Powertrain test stands, body-in-white welding, battery module assembly lines.
Food and beverage processing – Stainless-steel-compatible, washdown-rated PUR harnesses for sanitary environments.
| Certification | Scope and Relevance |
| ISO 9001:2015 | Quality management – design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management – verified waste reduction and sustainable material sourcing. |
| ISO 13485:2016 | Medical device quality management – applicable for harnesses used in diagnostic and therapeutic equipment. |
| RoHS and REACH | Full EU chemical compliance – certificates available upon request. |
Reunion's standard lead times are as follows:
Prototype samples (1 to 5 pieces) – 7 to 10 days.
Pilot production (10 to 50 pieces) – 10 to 15 days.
Full production orders (100+ pieces) – 15 to 20 days.
Lead times vary based on connector availability, cable material sourcing, and harness complexity. We provide firm delivery dates with every quotation and offer expedited services – including air-freight of critical components – for urgent line-stoppage situations.
To deliver an accurate quote within 24 hours, please send the following:
Cable specifications – Conductor size (AWG), conductor count, overall length, and jacket material (PVC, PUR, TPE, silicone, or PTFE).
Connector specifications – Type at each end (M8, M12, RJ45, D-sub, terminal blocks, or custom), pin assignment, and mating orientation.
Environmental requirements – Operating temperature range, chemical exposure (oil, coolant, solvents), flex cycle life, and IP rating needed.
Quantity – Estimated initial order quantity and annual usage forecast.
Drawings – Schematic, wiring table, or 3D routing model (if available). If you do not have a complete specification, our Field Application Engineering (FAE) team will work with you to develop a design within 3 working days – at no charge.
Our standard MOQ is 50 pieces per SKU. For prototype validation, we accept orders as low as 1 to 10 pieces at a higher per-unit cost – this allows you to test fit, form, and function before committing to volume. For long-term volume contracts (annual consumption above 5,000 pieces), we offer consignment inventory programs – we stock your harnesses and ship just-in-time to your assembly line, reducing your working capital and eliminating purchase-order lead times.
Reunion provides a 2-year workmanship warranty covering open circuits, short circuits, and connector detachment under normal operating conditions. We maintain a 0.1% annual defect rate target – among the lowest in the industry. If a harness fails within the warranty period, we replace it within 48 hours (global express shipping) and cover the full cost of the replacement part. Our after-sales team also provides remote troubleshooting support via video call, and we keep batch-level test records for every harness shipped – so we can trace and resolve issues immediately.
