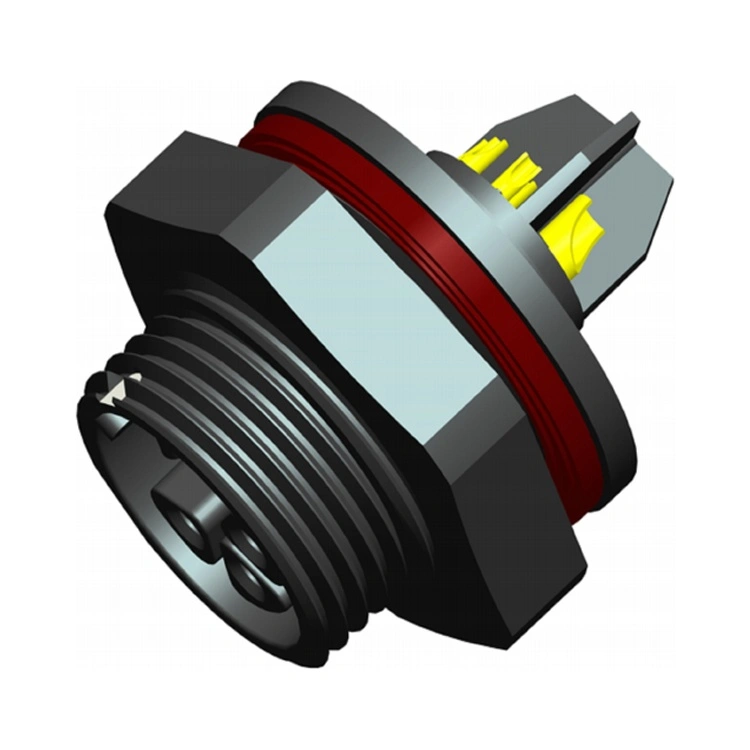

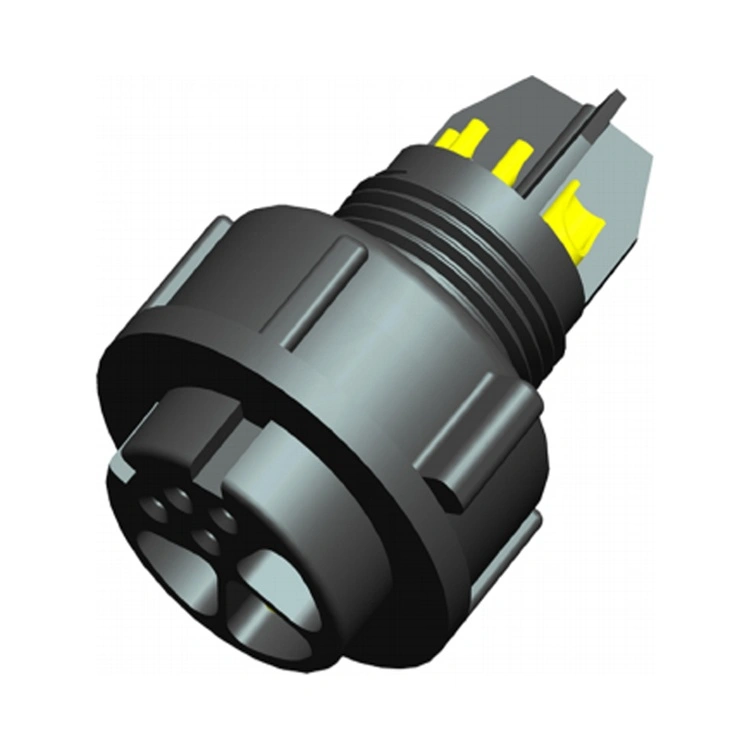

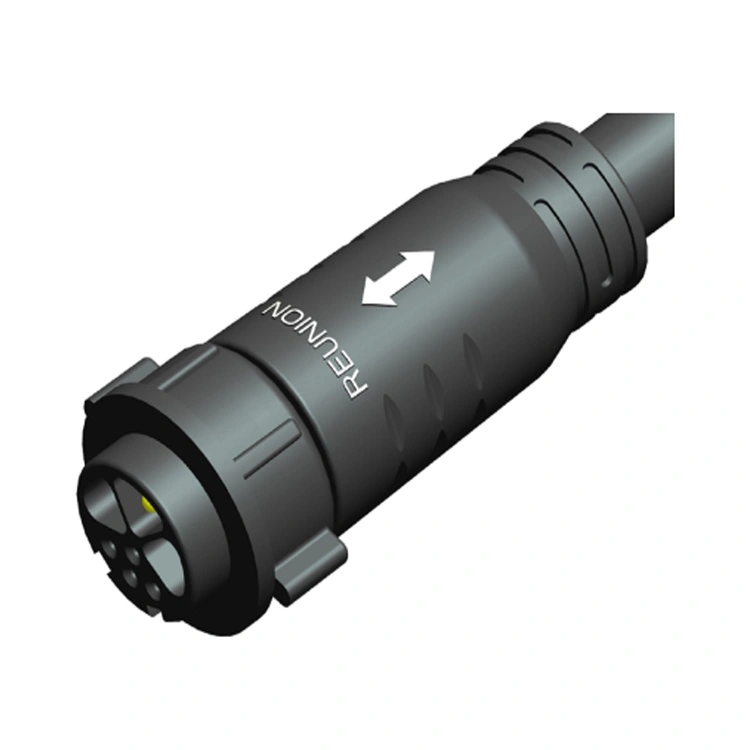

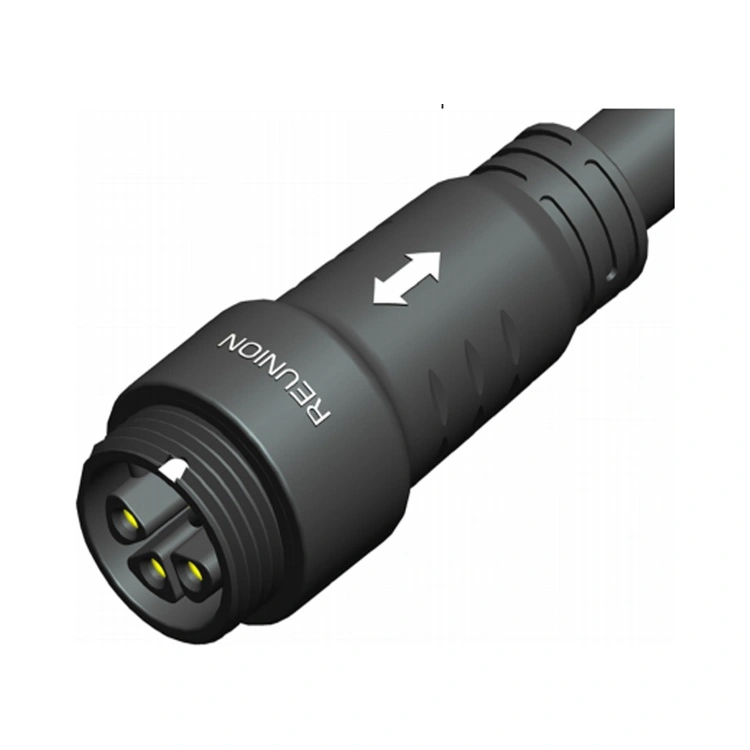

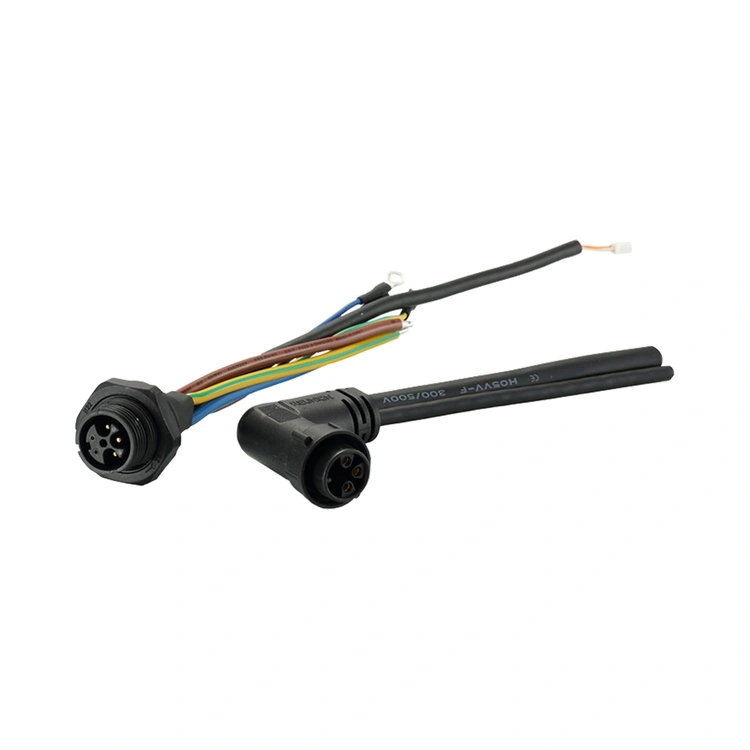

The M Series Power & Signal Hybrid Connector is Reunion's integrated interconnect solution for applications requiring both power and data transmission within a single, compact housing. This connector combines the robust environmental sealing and threaded locking mechanism of the M-series with hybrid power-signal contact configurations—eliminating the need for separate power and signal cables.
The power contacts are designed for secure, low-resistance connections with wire gauges up to 14 AWG, while the signal contacts are shielded and positioned to minimize crosstalk. Reunion manufactures the M series through a vertically integrated process—from precision machining through automated assembly and 100% electrical testing. For engineers designing compact industrial equipment, robotics, or automated systems, this connector provides a reliable, efficient solution that reduces wiring complexity and panel space requirements.
| Feature | Benefit |
| Power and Signal in One Connector | Combines power delivery (up to 22A) and signal transmission in a single interface—reduces panel space, cable count, and installation time. |
| IP67 Environmental Sealing | Dust-tight and protected against temporary immersion—reliable for industrial, washdown, and outdoor environments. |
| Threaded Locking Mechanism | Vibration-resistant mating—prevents accidental disconnection in high-vibration applications. |
| Multiple Power-Signal Configurations | 1M series 2+4Pin, 7Pin and 9Pin 2M series 3+2, 3+4Pin, and 9Pin—adapts to different power and signal requirements. |
| Gold-Plated Contacts | Low contact resistance and corrosion protection—maintains performance over hundreds of mating cycles. |
| -40°C to +105°C Operation | Wide temperature range covers extreme industrial and outdoor conditions. |
| Flexible Termination Options | Solder, dip-solder, and PCB—adapts to different assembly methods. |
| Parameter | 1M series | 2M series |
| Contact Configurations | 2+4pins, 7pins ,8pins | 3+2pins, 3+4pins, 9pins |
| Power Current | 12A | 22A |
| Power Voltage | 250V | 800V |
| Signal Current | 6A | 9A |
| Signal Voltage | Up to 50V AC/DC | |
| Insulation Resistance | ≥2000MΩ | ≥2000MΩ |
| Mating Cycles | ≥1000 times | ≥1000 times |
| Operating Temperature | -40°C ~ +105°C | -40°C ~ +105°C |
| Protection Rating | IP67 (mated condition) | IP67 (mated condition) |
| Housing Material | PA6 | PA6 |
| Contact Material | Copper alloy with gold plating | Copper alloy with gold plating |
The M Series Power & Signal Hybrid Connector is deployed across industries where combined power-signal connectivity simplifies equipment design and reduces installation complexity.
Robotics – Motor power + encoder feedback, end-of-arm tooling power + sensor signals.
Industrial Automation – Actuator power + position feedback, valve control + status monitoring.
Medical Devices – Pump power + flow sensor signals, diagnostic equipment power + data.
LED Lighting – High-power LED drivers + DALI/DMX control signals.
Industrial Sensors – Sensor power + IO-Link communication.
Automotive Manufacturing – Assembly line equipment power + control signals.
Renewable Energy – Solar tracker power + position feedback.
| Certification | Scope |
| ISO 9001:2015 | Quality management—design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management—verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management—applicable for M series used in diagnostic or monitoring equipment. |
| UL Recognized | Component-level safety certification for North American markets. |
| RoHS | Restriction of hazardous substances—compliance with EU Directive. |
Reunion's M series production line operates under strict process controls. IP67 sealing is verified on every production batch through actual immersion testing. Test records, material certificates, and inspection reports are retained for each batch.
Both connectors combine power and signal in a single interface, but they serve different application needs:
| Aspect | M Series Hybrid | X Series Hybrid |
| Locking Mechanism | Threaded locking system | Fast rotation locking system |
| Sealing | IP67 (standard) | IP67 (standard) |
| Power Rating | Up to 22A | Up to 30A |
| Shell Size | 1M, 2M series | 1X, 3X series |
| Primary Application | Industrial, robotics, LED lighting, | Test equipment, robotics,battery, energy,LED display |
