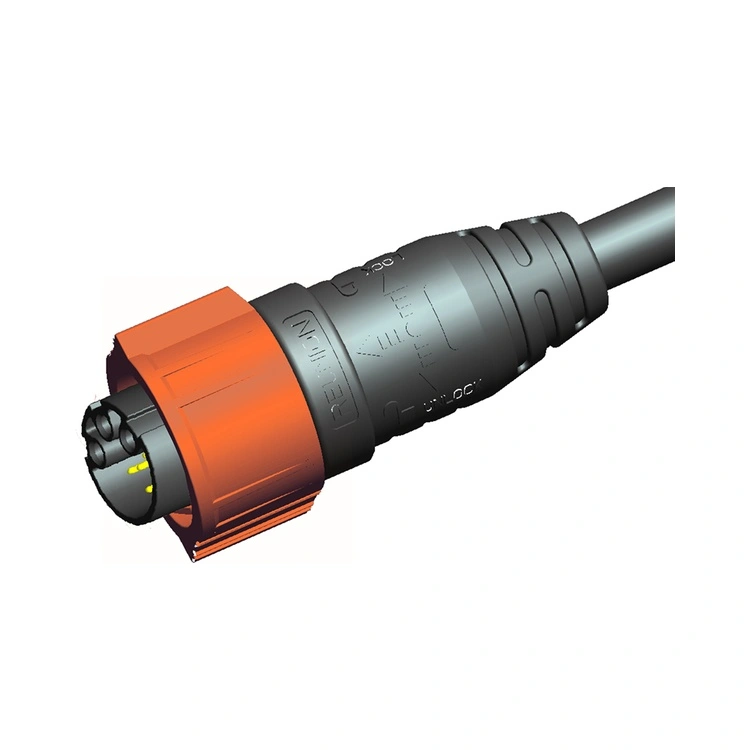

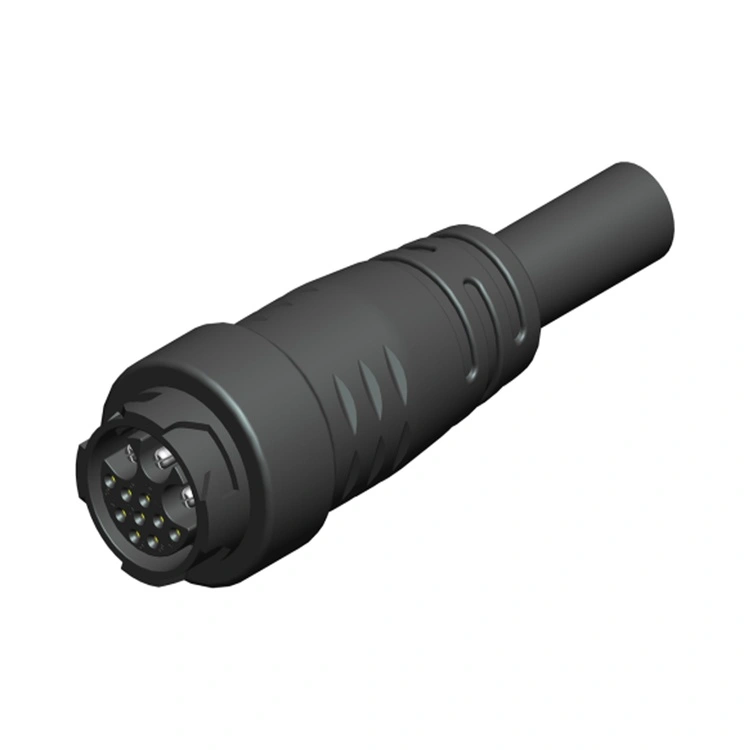

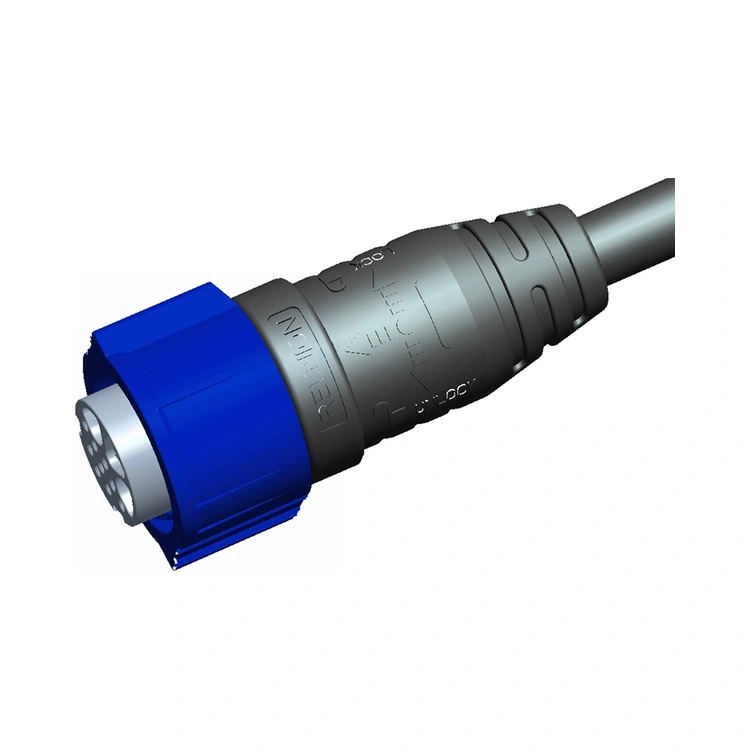

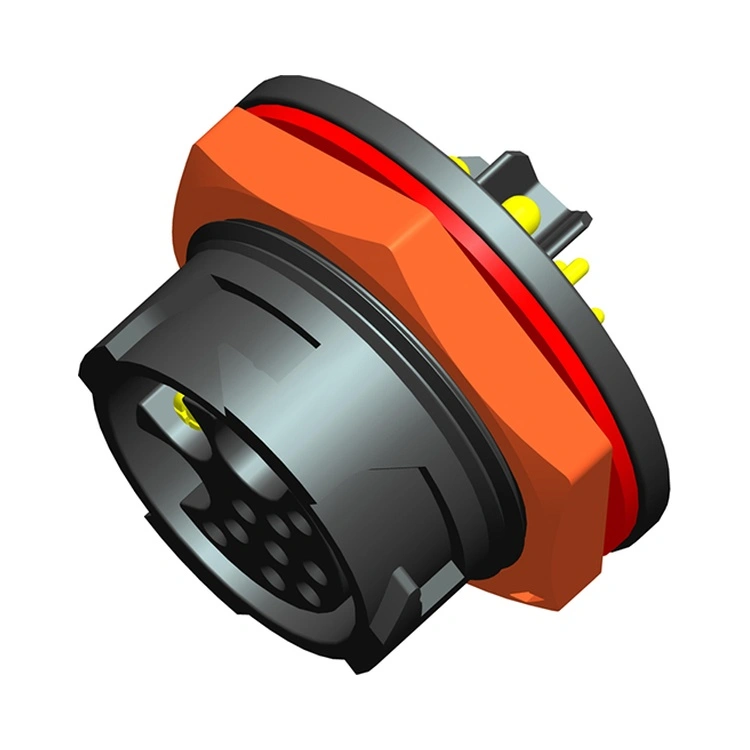

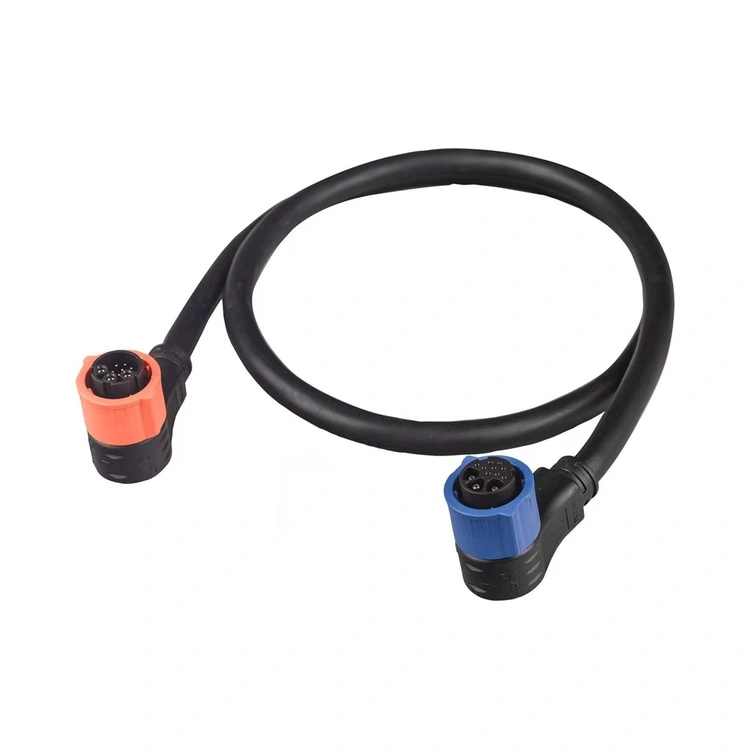

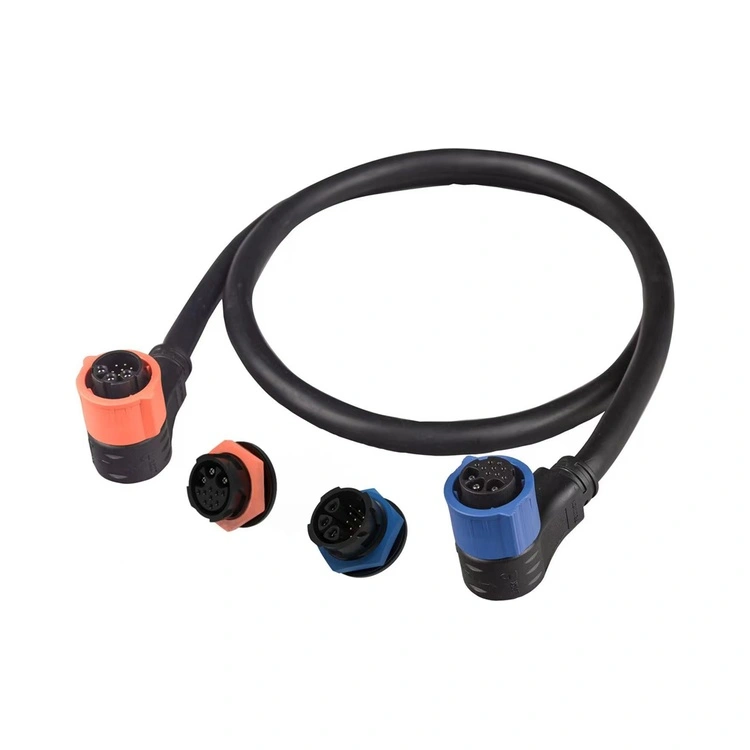

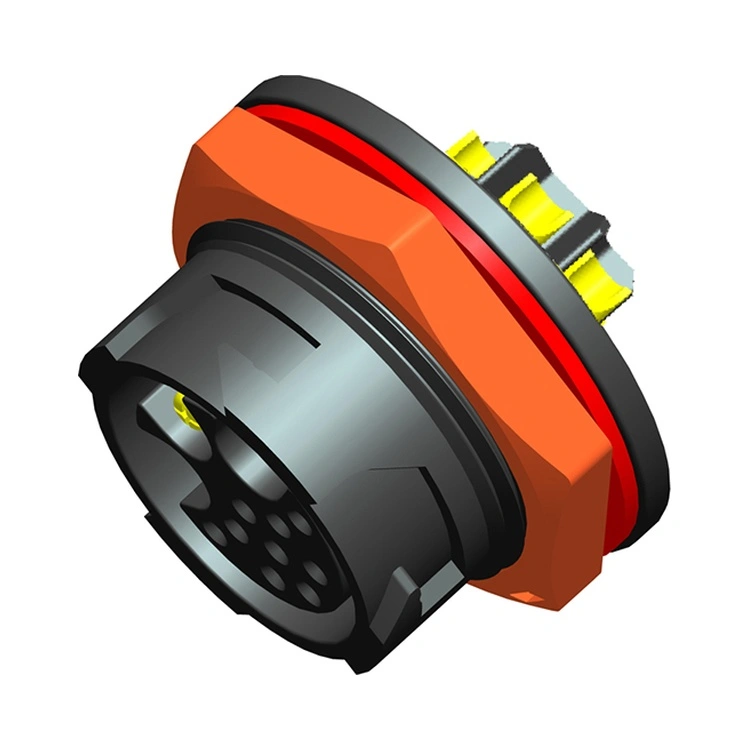

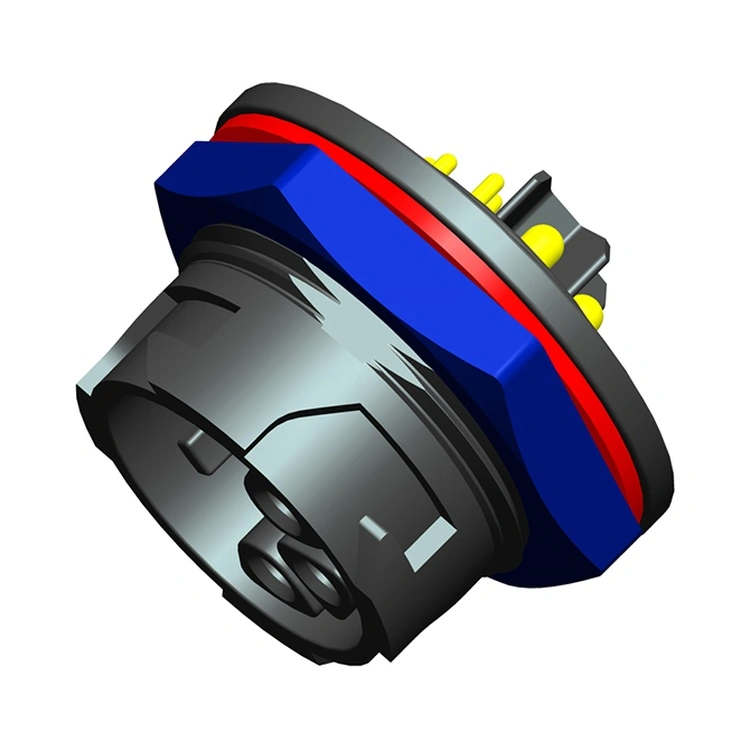

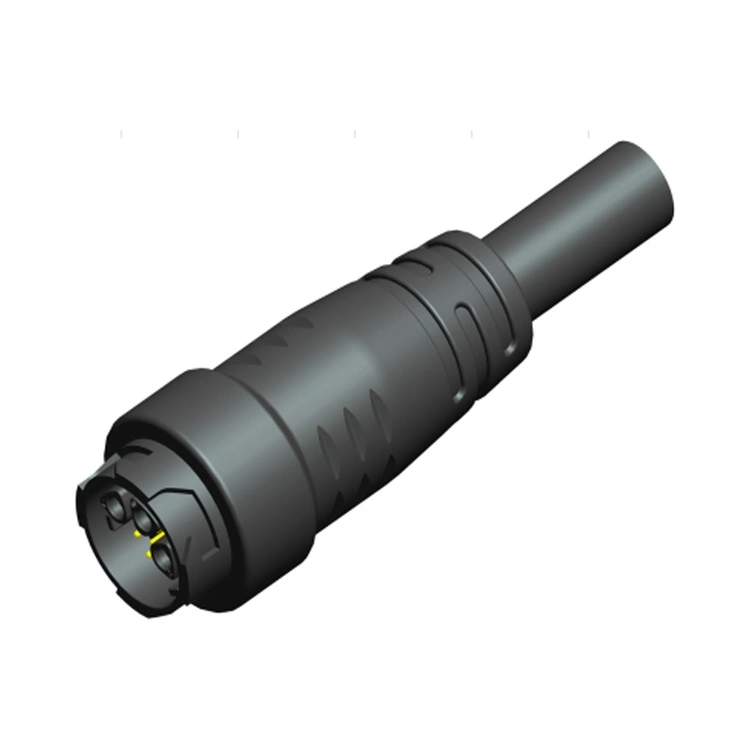

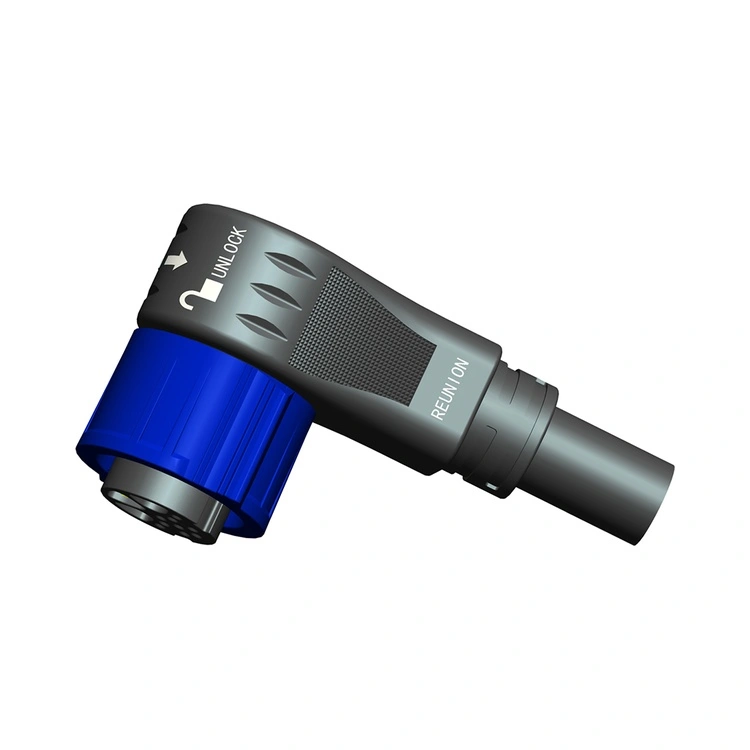

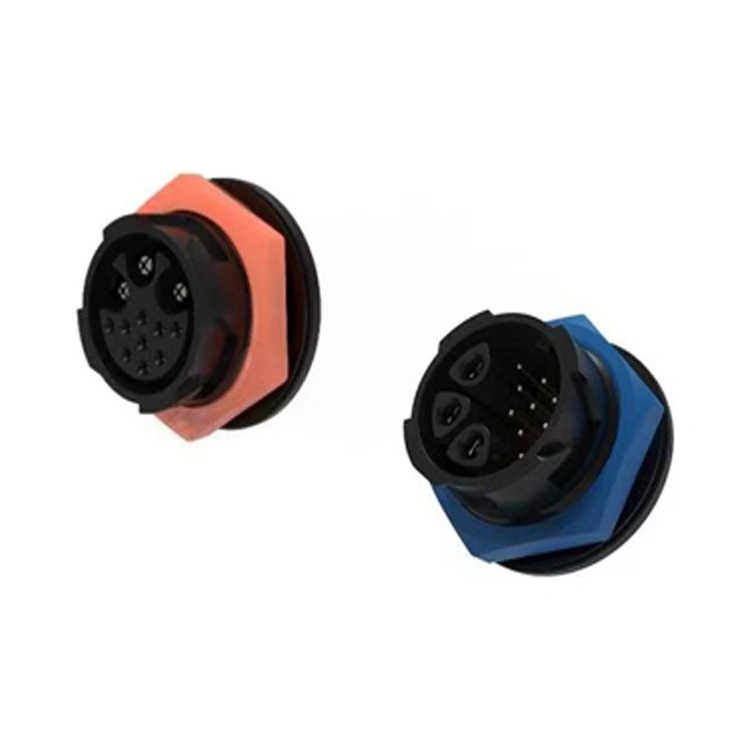

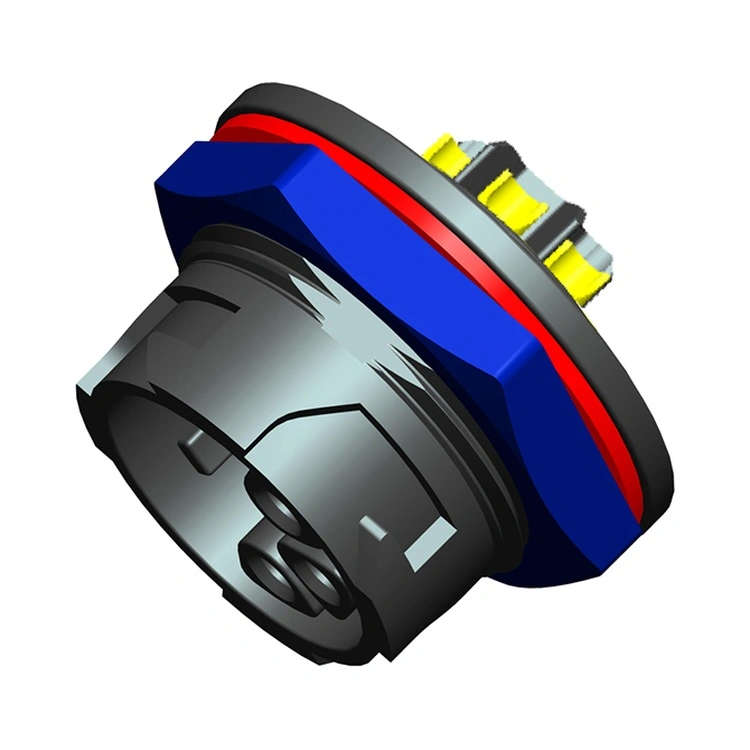

The X Series Power & Signal Hybrid Connector is Reunion's innovative interconnect solution that combines power delivery and signal transmission in a single, space-saving housing. This connector addresses the growing demand from equipment manufacturers to reduce panel space, cable count, and installation complexity by integrating multiple connection types into one interface.
The power contacts are designed for secure, low-resistance connections, while the signal contacts are shielded and positioned to minimize crosstalk. Reunion manufactures the X series through a vertically integrated process—from precision machining and injection molding through automated assembly and 100% electrical testing. For engineers designing advanced industrial equipment, battery, energy, ebike, LED,or robotics, this connector provides a reliable, efficient solution that simplifies wiring and reduces the overall system footprint.
| Feature | Benefit |
| Power and Signal in One Connector | Combines power delivery (up to 30A) and signal transmission in a single interface—reduces panel space and cable count. |
| Fast rotation locking system | Quick, one-handed mating with audible lock confirmation—reduces installation and maintenance time. |
| IP67 Environmental Sealing | Dust-tight and protected against temporary immersion—reliable for industrial and outdoor applications. |
| Multiple Power-Signal Configurations | 1X series: 2+4pins 3X series:3+9 pins —adapts to different power and signal requirements. |
| Plastic housing | Nylon material—UL94-V0, corrosion-resistant, wear-resistant |
| Gold-Plated Contacts | Low contact resistance and corrosion protection—maintains performance over hundreds of mating cycles. |
| -40°C to +105°C Operation | Wide temperature range covers extreme industrial and outdoor conditions. |
| Parameter | Specification |
| Contact Configurations | 3 power + 9 signal |
| Power Contact Current | Up to 30A per contact |
| Power Voltage | Up to 300V AC/DC |
| Signal Contact Current | Up to 5A per contact |
| Signal Voltage | Up to 30V DC |
| Contact Resistance | ≤5mΩ |
| Insulation Resistance | ≥2000MΩ |
| Dielectric Withstand | 1500V AC for 1 minute |
| Mating Cycles | ≥1,000 times |
| Operating Temperature | -40°C ~ +105°C |
| Protection Rating | IP67 (mated condition) |
| Housing Material | PA6+GF black color |
| Contact Material | C54400 & C3602 gold plating & nel plating |
| Cable Exit | Straight or right-angle |
| Aspect | Reunion X Series Hybrid | Separate Power + Signal Connectors | Premium European Hybrid Connector Brands |
| Panel Space | One panel cutout required | Two panel cutouts required | One panel cutout |
| Cable Count | One cable required | Two cables required | One cable |
| Price | Volume-friendly pricing | Lower component cost, higher installation cost | 3-4× higher |
| Installation Time | Reduced (one connector) | Extended (two connectors) | Reduced |
| IP67 Sealing | Standard | Variable | Standard |
| Contact Configurations | Multiple options – comprehensive | Customizable | Limited range |
| Power Rating | Up to 30A | Similar | Similar |
| 100% Electrical Testing | Every unit | Sample-based | Sample-based |
| Traceability | ERP traceable | Variable | Yes |
| Lead Time | 12-15 days | 4-8 weeks | 4-8 weeks |
| Customization | Low MOQ | Variable | High MOQ |
The Reunion advantage: You receive integrated power-signal connectivity, reduced panel space requirements, and simplified cable management—all at cost-effective pricing, without the premium cost of European brands.
| Certification | Scope |
| ISO 9001:2015 | Quality management—design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management—verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management—applicable for X series used in diagnostic or monitoring equipment. |
| UL Recognized | Component-level safety certification for North American markets. |
| RoHS | Restriction of hazardous substances—compliance with EU Directive. |
Reunion's X series production line operates under strict process controls. IP67 sealing is verified on every production batch through actual immersion testing. Test records, material certificates, and inspection reports are retained for each batch.
The primary advantage is space and cable efficiency. A hybrid connector:
Reduces panel cutouts– One connector vs. two or three separate connectors.
Reduces cable count– One cable assembly vs. multiple cables.
Simplifies installation– One mating operation vs. multiple operations.
Reduces potential failure points– Fewer connections means fewer points of failure.
Improves cable management– One cable is easier to route and secure.
For equipment with limited panel space—such as medical devices, robotics, or compact industrial controls—the hybrid connector is often essential.
Reunion recommends the following installation practices:
Mating– Push firmly until audible click confirms lock.
O-ring inspection– Replace the O-ring if deformation, cracking, or hardening is visible.
Cable bend radius– Maintain minimum 5× cable diameter at the connector entry.
Orientation– Orient cable exit downward for outdoor/washdown installations.
