Article Summary: As industrial Ethernet networks become increasingly important in automation, machine vision, surveillance, LED systems, and smart equipment, connector reliability directly affects data integrity and system uptime. Reunion's RJ45 signal connector combines the familiar RJ45 interface with industrial-grade mechanical protection, flexible mounting configurations, and reliable electrical performance. With support for data rates up to 10 Gbps, CAT5e through CAT7 cables, IP50/IP67 protection options, and at least 2,000 mating cycles, it is designed for applications where ordinary commercial RJ45 connectors may not provide sufficient environmental durability or long-term stability.

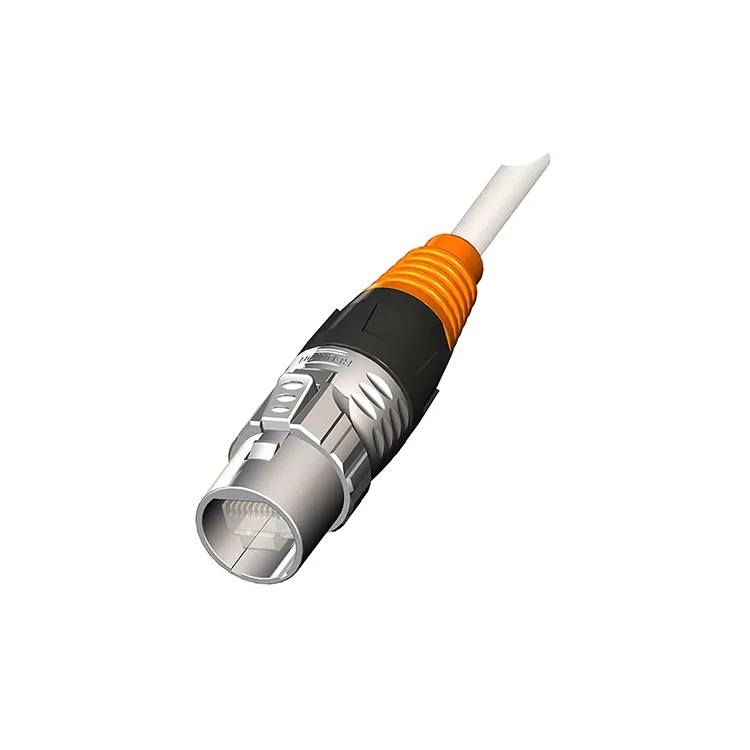

An RJ45 signal connector is an Ethernet interconnection component designed to establish a dependable physical connection between networking equipment, cables, control systems, and industrial devices. While conventional RJ45 connectors are widely used in offices and commercial networks, industrial applications often expose connectors to vibration, moisture, dust, temperature changes, repeated mating, and mechanical stress.
For this reason, industrial RJ45 designs typically place greater emphasis on mechanical protection, locking mechanisms, sealing, material selection, and long-term electrical stability. Reunion's solution combines the standard RJ45 interface with industrial-oriented construction for applications including factory automation, machine vision, outdoor surveillance, LED displays, and industrial communication systems.
The connector supports Ethernet communication across networks such as PROFINET, EtherNet/IP, EtherCAT, and standard TCP/IP. Depending on the configuration, it can also be supplied with cable-mount, panel-mount, or PCB-mount installation options, making it easier for engineers to integrate the connector into different equipment structures.
Ethernet networks used in industrial environments have different requirements from typical office networks. A connector installed inside a controlled IT room may rarely encounter water, oil, vibration, dust, or repeated mechanical movement. By contrast, an industrial communication interface can be installed inside control cabinets, robotic cells, production machinery, outdoor equipment, or inspection systems.
A reliable industrial connector should therefore address several practical concerns:
These factors become particularly important when an Ethernet link is responsible for machine control, real-time data exchange, camera communication, or remote equipment monitoring.
A well-engineered industrial connector should balance electrical performance, mechanical durability, and installation convenience. Reunion's RJ45 signal connector incorporates several features intended for demanding Ethernet applications.
| Feature | Reunion RJ45 Signal Connector | Engineering Benefit |
|---|---|---|
| Data Rate | Up to 10 Gbps | Supports high-speed Ethernet communication |
| Housing | Zinc alloy, PA6 optional | Provides mechanical protection and configuration flexibility |
| Protection | IP50 / IP67 when mated | Suitable for different environmental conditions |
| Mating Cycles | ≥2,000 | Supports repeated maintenance and equipment servicing |
| Operating Temperature | -40°C to +85°C | Suitable for broad industrial temperature conditions |
| Cable Exit | 180° straight / 90° right-angle | Improves installation flexibility in compact equipment |
| Termination | Solder-cup or IDC | Supports different field and assembly requirements |
One notable design feature is the quick turning locking system. Compared with a simple friction-fit interface, a dedicated locking mechanism can provide additional connection security where vibration or repeated movement is expected.
Choosing an Ethernet connector should begin with the network's electrical and environmental requirements rather than appearance alone. Engineers should evaluate the transmission rate, impedance, contact resistance, operating temperature, protection level, cable compatibility, and mechanical configuration.
| Specification | Typical Reunion Value | Why It Matters |
|---|---|---|
| Characteristic Impedance | 100 Ω ± 5% | Helps maintain appropriate differential signal behavior |
| Current Rating | 1.5 A per contact | Defines continuous contact current capability |
| Voltage Rating | 50 V | Defines the specified working voltage |
| Contact Resistance | ≤10 mΩ initial | Lower resistance supports stable electrical contact |
| Insulation Resistance | ≥500 MΩ at 500 VDC | Indicates insulation performance |
| Cable Compatibility | CAT5e / CAT6 / CAT6a / CAT7 | Provides flexibility for Ethernet system design |
| Operating Temperature | -40°C to +85°C | Supports demanding temperature environments |
For high-speed systems, engineers should also consider insertion loss, return loss, cable construction, shielding strategy, grounding, and the complete transmission channel. Connector performance cannot be evaluated independently from the cable, termination method, and network architecture.
Reunion specifies support for CAT5e, CAT6, CAT6a, and CAT7 cables, including stranded or solid conductors in the stated AWG 26–22 range. This allows the connector to be considered for both standard Ethernet infrastructure and higher-performance industrial communication systems.
The versatility of Ethernet makes RJ45 interfaces relevant across many industrial and commercial systems. A ruggedized version becomes especially useful when the connector must withstand environmental or mechanical stresses.
Automated production lines depend on communication between PLCs, controllers, sensors, drives, industrial computers, and other networked equipment. A durable Ethernet interface can help maintain stable connections during continuous operation.
Industrial cameras can generate substantial quantities of image data. High-speed Ethernet connectivity is therefore important for transferring inspection information between cameras, industrial computers, and control systems.
Outdoor monitoring equipment may experience rain, dust, temperature variation, and physical exposure. An appropriate IP-rated connector can provide additional protection at the Ethernet interface.
Large LED displays and professional lighting equipment frequently require reliable control and data communication. A connector with flexible cable exits and secure locking can simplify installation in equipment with restricted space.
Control cabinets can contain multiple communication interfaces in a limited area. Panel-mount and PCB-mount configurations provide additional integration options for equipment manufacturers and system integrators.
When sourcing an industrial Ethernet connector, buyers should define the application before comparing individual products. The following checklist can help narrow the selection:
For customized projects, buyers should also provide expected order quantities, cable length, connector orientation, marking requirements, housing material preferences, and installation constraints. These details allow the supplier to recommend a configuration rather than simply offering a standard catalog part.
Reunion is a China-based connector manufacturer with experience in power, signal, industrial automation, waterproof connector, and cable assembly products. Its manufacturing capabilities include connector design, injection molding, soldering, wire cutting and stripping, assembly, and cable assembly.
For the RJ45 product line, Reunion states that every unit undergoes electrical testing before shipment. The company also provides cable-mount, panel-mount, and PCB-mount configurations, along with straight and right-angle cable exits. These options can be useful for OEMs and system integrators developing equipment with different mechanical layouts.
Reunion's broader manufacturing operation includes a production facility of approximately 4,000 square meters, around 150 employees, and 10 production lines. Its R&D team includes more than 10 experienced engineers, while the company reports more than 30 customized projects annually. The company also states that its quality system includes ISO 9001, ISO 14001, and ISO 13485 certifications, with additional compliance documentation such as RoHS and REACH available for applicable products.
For buyers evaluating a signal connector supplier, these manufacturing and engineering capabilities can be considered alongside product specifications, testing procedures, customization requirements, and delivery expectations.
The Reunion RJ45 signal connector is specified for data transmission up to 10 Gbps when used with suitable CAT6a or CAT7 cabling and compatible network equipment. Actual system performance depends on the complete Ethernet channel, including cable, termination, and active devices.
Selected configurations provide IP67 protection when mated, making them suitable for applications where protection against dust and water exposure is required. The complete installation should still be evaluated for cable entry, mating condition, enclosure design, and environmental exposure.
The specified compatibility includes CAT5e, CAT6, CAT6a, and CAT7 cables, supporting stranded or solid conductors within the stated AWG 26–22 range.
The industrial RJ45 signal connector is specified for at least 2,000 mating cycles. This is particularly relevant to equipment that requires periodic maintenance, replacement, inspection, or field servicing.
Yes. Depending on project requirements, customization can include configuration, cable length, marking, housing options, and other mechanical details. Buyers should provide the application environment, cable specification, installation method, quantity, and required delivery schedule when requesting a quotation.
A dependable Ethernet connection starts with selecting a connector that matches the electrical, mechanical, and environmental requirements of the complete system. For industrial automation, machine vision, surveillance, LED equipment, and other networked devices, an industrial-grade RJ45 interface can provide the durability and installation flexibility needed beyond conventional office networking hardware.
Reunion combines RJ45 compatibility with options for IP protection, industrial temperature performance, multiple mounting configurations, secure locking, and high-speed Ethernet transmission. If you are sourcing an RJ45 signal connector for OEM production, system integration, or bulk purchasing, review your cable and environmental requirements first, then discuss the required configuration with the engineering team.
