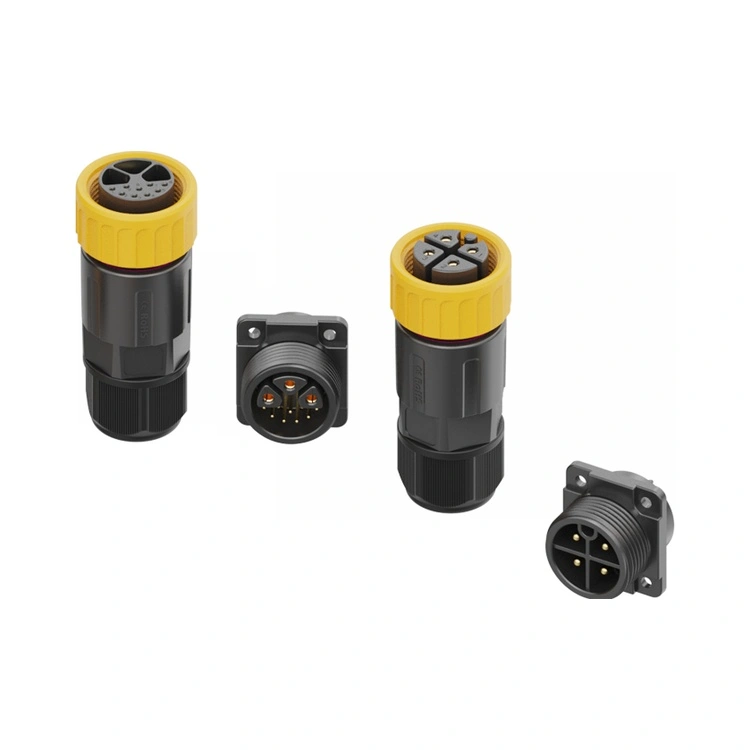

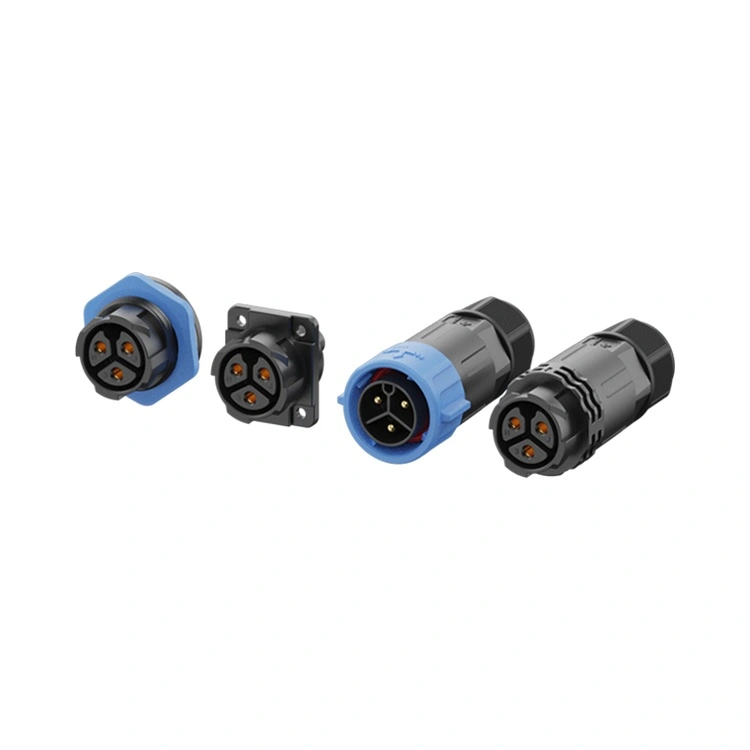

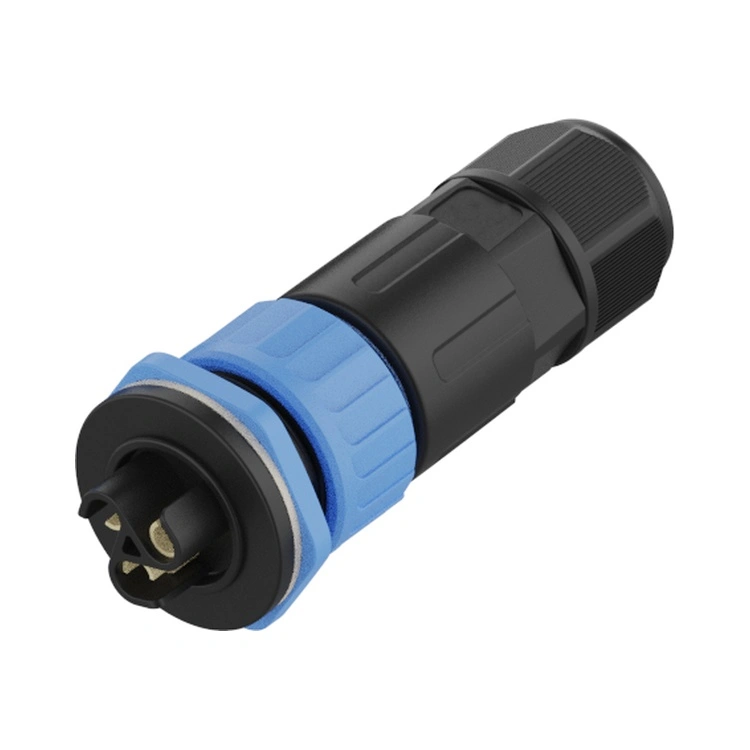

The Reunion M25 series LED light connector is purpose-built for fixtures above 1,000W where thermal cycling (ΔT up to 145°C) and mechanical shock commonly degrade standard M20 solutions. Unlike generic copies, this series subjects every production batch to:
1)100% hipot and contact resistance testing
2)IP67 waterproof test – 1m depth, 30 minutes, documented with video records
3)Thermal shock validation – 500 cycles from -40°C to +105°C without seal relaxation
This test protocol directly addresses the #1 failure mode in outdoor LED systems: micro-motion fretting corrosion caused by wind-induced cable sway. The threaded locking mechanism (recommended torque 1.2–1.5Nm) maintains interface pressure above 80N, ensuring stable contact even when mounted on 50m-high stadium masts.
| Selection Criterion | Reunion M25 Series LED Light Connector | M20 Series (Lower Capacity) | Unbranded M25 Look-alikes |
| Max continuous current | 30A (per power pin) | 30A (but derates to 22A at 85°C) | Claim 30A, but fails at 25A (no thermal image report) |
| Hybrid pin options | 3+2 / 3+5 /3+9 pins | 2+2 only (custom MOQ 500+) | None – power-only shells |
| IP67 waterproof | Every batch – immersion-tested, photos retained | Sample-based (1 per 1,000) | Not documented |
| Cable OD accommodation | 6–12mm (glove-friendly knurling) | 4–8mm | 5–10mm (poor strain relief) |
| Lead time (1,000 pcs) | 15–20 days | 4–6 weeks | Unpredictable (often dropshipped) |
| Traceability | ERP batch code → raw material certs | Batch-level | None |
Recommendation: Specify the Reunion M25 series LED light connector for any project where ROI > 3 years and unplanned downtime costs exceed $2,000/hour (e.g., airport aprons, tunnel egress lighting).

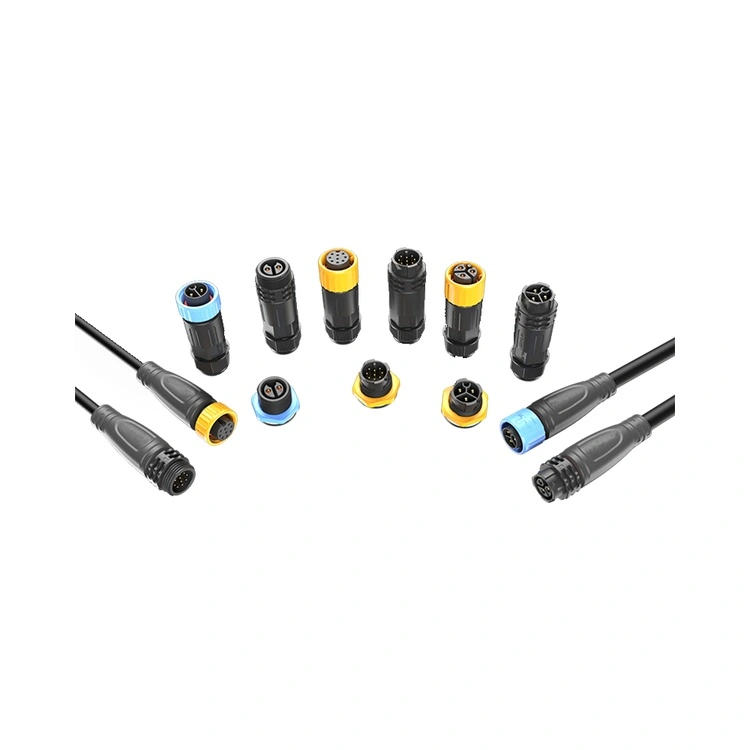

| Parameter | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 3+2-pin | 3+5-pin | 3+9-pin |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 250V/50V | 250V/50V | 250V/50V |
| Current Rating | 30A | 30A | 20A | 20A | 15A | 20A+10A | 20A+5A | 20A+5A |
| Wire Section | 0.75-4.0mm² | 0.75-4.0mm² | 0.5-2.5mm² | 0.5-2.5mm² | 0.25-1.5mm² | 0.25-2.5mm² | 0.25-2.5mm² | 0.25-2.5mm² |

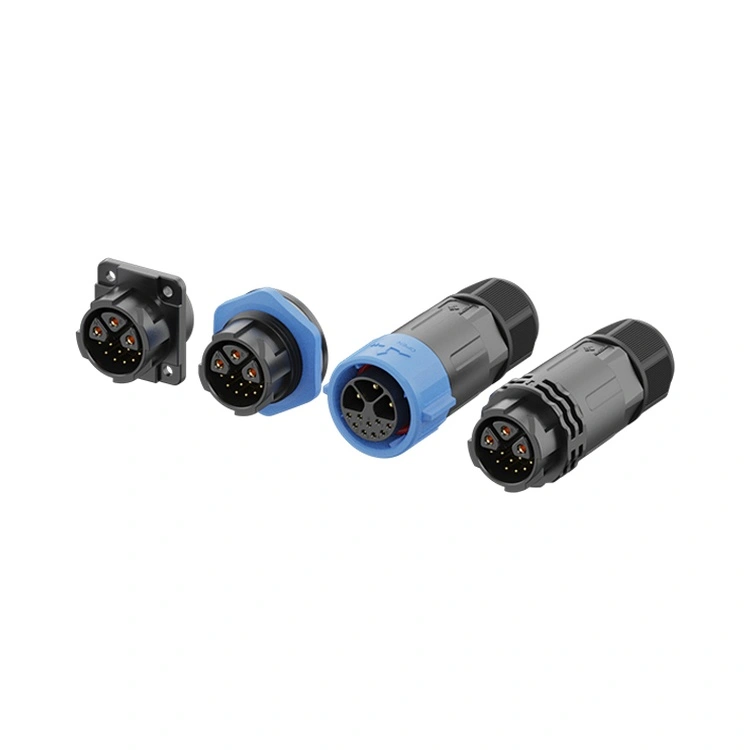

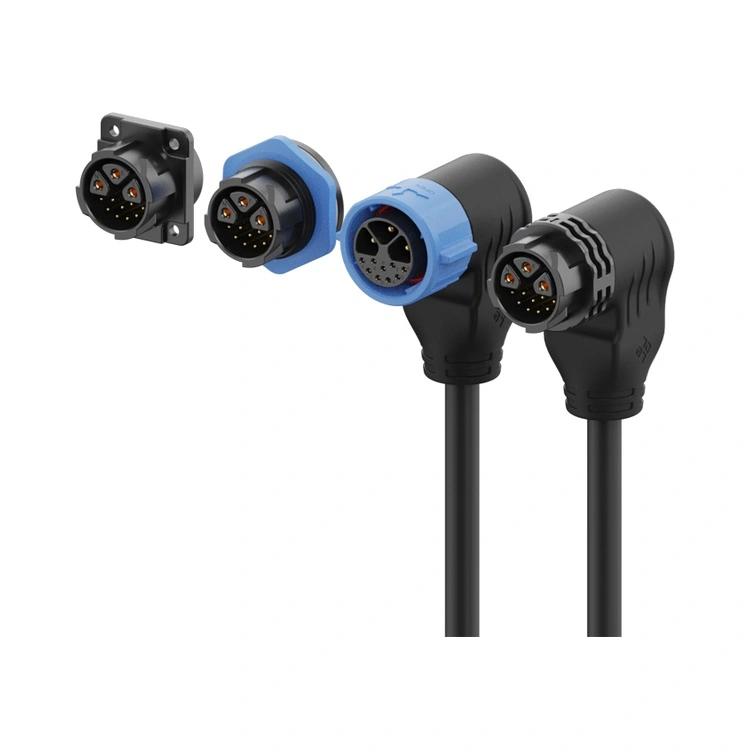

The 5 signal pins in the 3+5 configuration are independently shielded with a 2.54mm pitch, providing >40dB crosstalk attenuation at 250kHz – critical for DMX512 RDM bi-directional communication. For DALI-2 applications, the 3+2 pin variant (2 signal wires) supports addressing up to 64 fixtures per loop while maintaining the 30A power rail.Practical wiring guide for specifiers:
3+5 pins: Pins 1–3 = L1/L2/L3 (3-phase, 20A each); Pins 4–5 = DALI +/-; Pins 6–7 = DMX data+ / data- ; Pin 8 = DMX common (shield reference).
3+2 pins: Pins 1–3 = L/N/PE (single-phase 30A or 3-phase 20A); Pins 4–5 = 0-10V dimming or DALI.
This hybrid architecture reduces field labor by eliminating 40% of terminal-block splices
A: The high-temp thermoplastic insulator (UL 94 V-0) retains impact strength >6 kJ/m² at -40°C (tested per ISO 179). The silicone O-ring maintains compression set <20% after 500 cold-start cycles.
For standard DALI-controlled projects, we recommend the 3+2 configuration:
3 power pins (20A each) for the LED driver input.
2 signal pins (10A each) for DALI data .
This provides ample power for high-wattage luminaires and supports DALI communication over runs up to 300 meters. For multi-channel color control or integrated sensor feedback, choose the 3+5 or 3+9 variants. All configurations maintain signal integrity for DALI, DMX, 0-10V, and RS-485 protocols.
