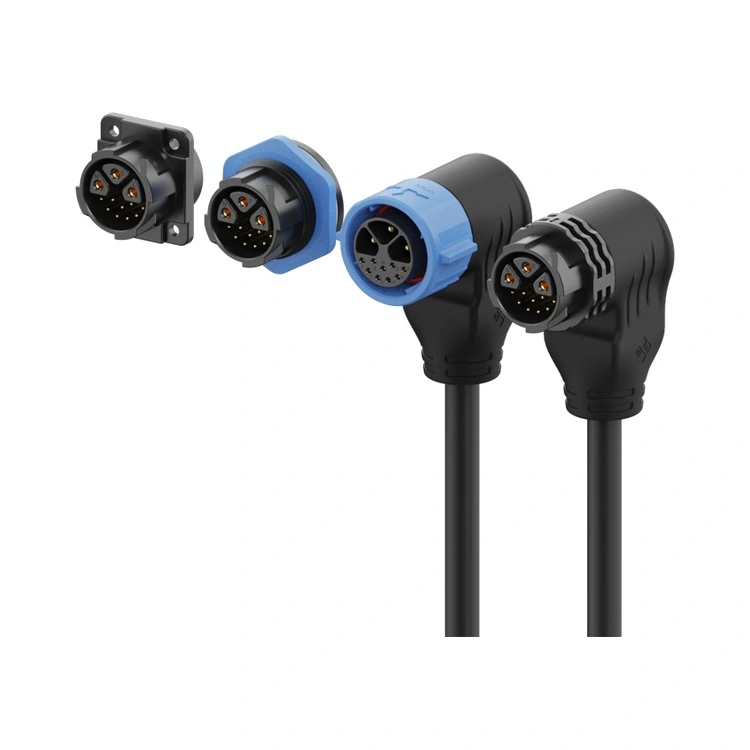

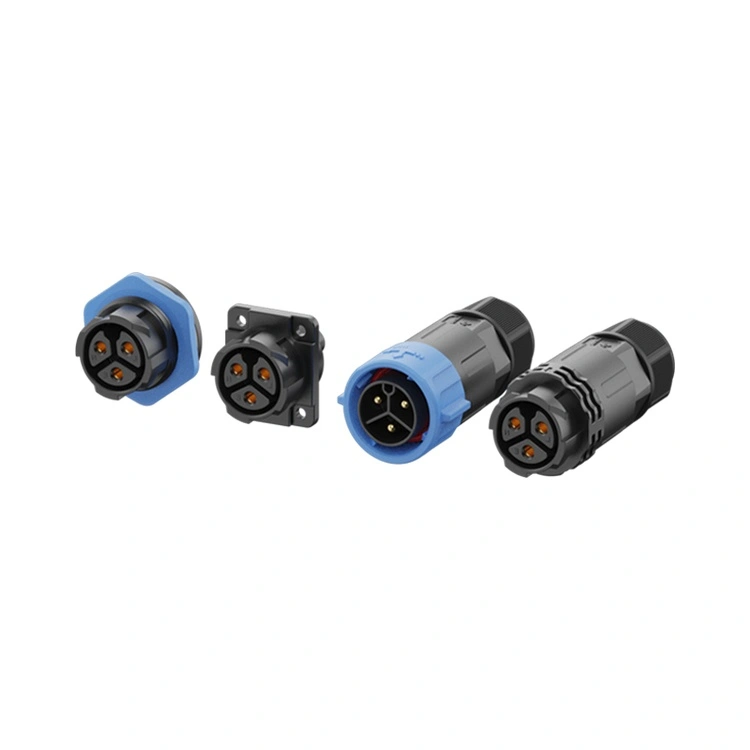

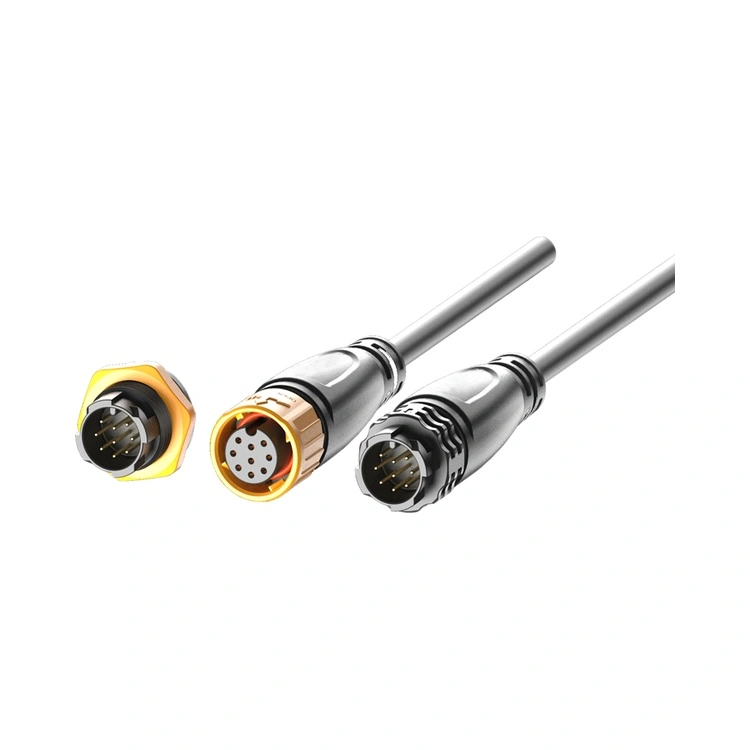

The M25 Series Waterproof Connector is Reunion's highest-capacity industrial interconnect within the M-series family, designed for applications where substantial power delivery must coexist with environmental protection. This threaded circular connector combines a rugged 25mm interface with IP67/IP68-rated sealing, making it suitable for heavy-duty equipment, motor connections, power distribution systems, EV charging infrastructure, and renewable energy installations where moisture, dust, and vibration are constant challenges.

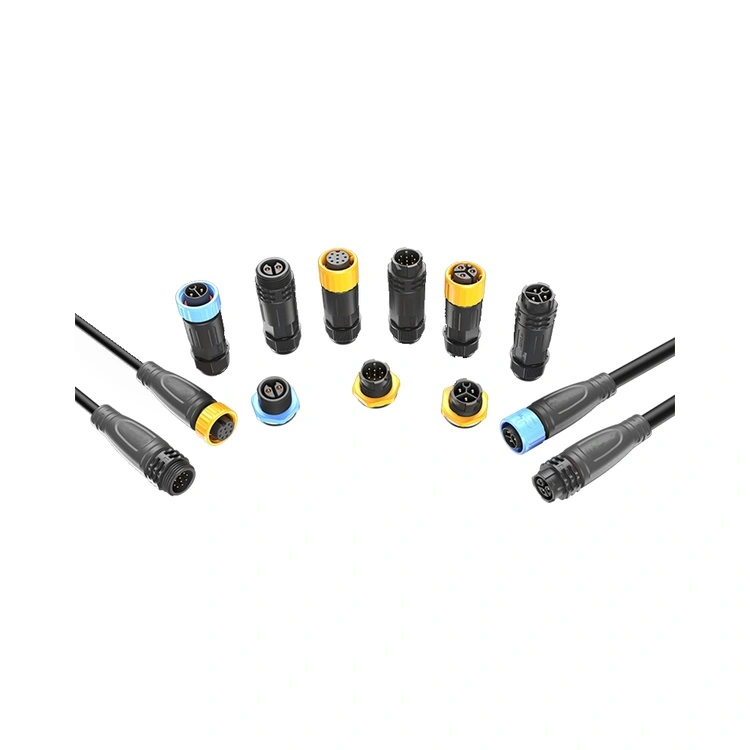

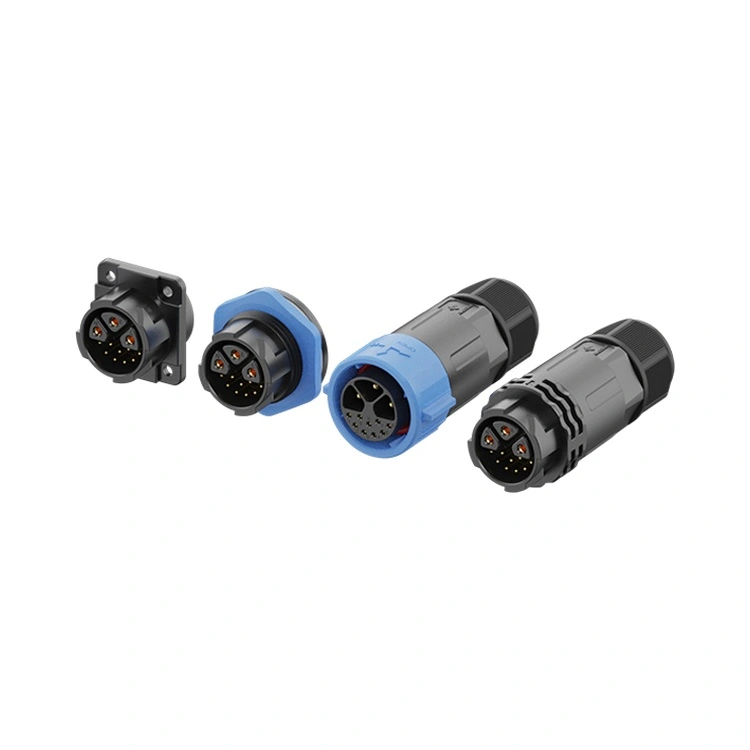

Available in 2- to 12-pin configurations, including hybrid power-signal variants 5, 3+9 pins that combine high-current power contacts with low-voltage signal contacts in a single housing, the M25 series supports a wide range of high-power applications.
Contacts are machined from brass with selective gold plating, maintaining low and stable contact resistance over hundreds of mating cycles. The max current that can be supported is 30A per contact.

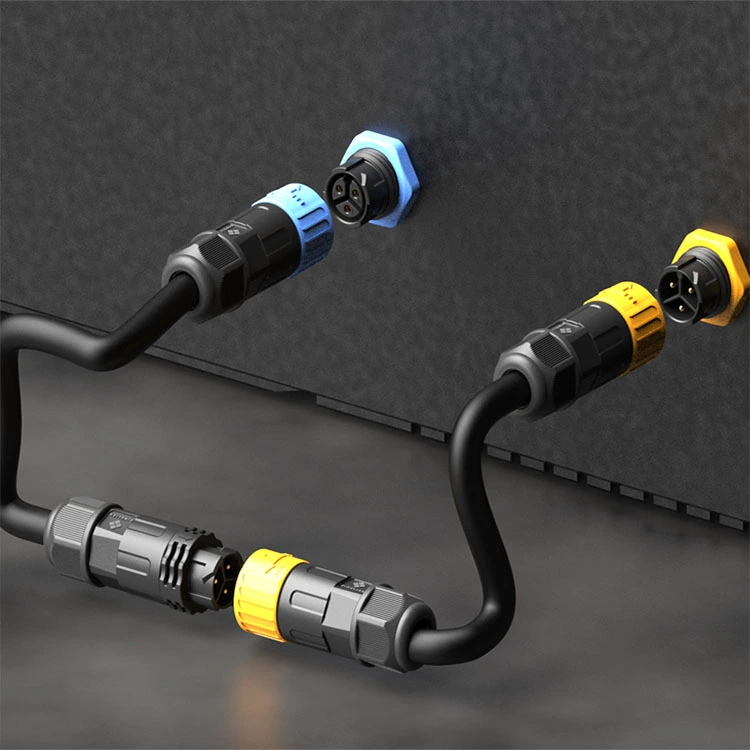

Reunion manufactures the M25 series through a vertically integrated process—from precision machining through automated assembly and 100% electrical testing. Available in panel-mount and cable-mount versions with solder.
| Feature | Benefit |
| Current Ratings up to 30A | Handles the highest power loads in the M-series—suitable for heavy motors, EV chargers, and industrial power distribution. |
| IP67 waterproof | Withstands dust, temporary immersion, and extended immersion—reliable for outdoor and washdown environments. |
| Hybrid 3+2, 3+5 ,3+9Pin Options | Combines high-current power pins (up to 20A) with low-voltage signal pins in one connector—reduces cable count and panel space. |
| Threaded Locking Mechanism | Vibration-resistant mating—prevents loosening from heavy machinery movement and thermal cycling. |
| Gold-Plated Brass Contacts | Low contact resistance (≤3mΩ) and corrosion protection—maintains performance in humid and outdoor environments. |
| High-Temperature Thermoplastic Insulator | -40°C to +105°C operation—covers extreme industrial and outdoor temperature conditions. |
| All-Plastic Housing | High-temperature thermoplastic materials-Suitable for harsh environments |
| Multiple Termination Options | Solder, dip-solde—adapts to different assembly methods. |
| Parameter | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 3+2-pin | 3+5-pin | 3+9-pin |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 250V/50V | 250V/50V | 250V/50V |
| Current Rating | 30A | 30A | 20A | 20A | 15A | 20A+10A | 20A+5A | 20A+5A |
| Wire Section | 0.75-4.0mm² | 0.75-4.0mm² | 0.5-2.5mm² | 0.5-2.5mm² | 0.25-1.5mm² | 0.25-2.5mm² | 0.25-2.5mm² | 0.25-2.5mm² |
Operating Temperature:-40°C ~ +105°C
Protection Rating:IP65 / IP67 / IP68 (mated condition)
Housing Material:High-temperature thermoplastic
Contact Material:Gold-plated brass
Contact Resistance:≤3mΩ
Mating Cycles:≥500
Flammability Rating:UL 94 V-0
All materials RoHS compliant
| Aspect | Reunion M25 Series | Premium European M25 Brands | Low-Cost Unbranded M25 |
| Price | Volume-friendly pricing | 3-4× higher | Cheaper upfront |
| Current Rating | Up to 30A | Up to 25A typical | Variable, often overstated |
| Hybrid Options | 3+2, 3+5,3+9 – standard | Limited | Not offered |
| IP67 Verification | Batch immersion-tested | Batch-tested | Not verified |
| 100% Electrical Testing | Every unit | Sample-based | Random or none |
| Gold Plating | standard | ≥0.2-0.4µm | Thin or none |
| Traceability | ERP traceable from resin to finished connector | Yes | None |
| Lead Time | 12-15 days | 4-8 weeks | Unpredictable |
| Customization MOQ | Low (100 pieces) | High (500+) | Not offered |
| Technical Support | 24-hour response from 10-person engineering team | Good but slower | Limited |
| ISO Certifications | 9001, 14001, 13485 | Usually 9001 | Typically none |
The Reunion advantage: You receive documented IP67 sealing, hybrid power-signal configurations, and current ratings up to 30A—all at cost-effective pricing, without the premium cost of European brands.
| Certification | Scope |
| ISO 9001:2015 | Quality management—design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management—verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management—applicable for M25 used in diagnostic or monitoring equipment. |
| UL Recognized | Component-level safety certification for North American markets. |
| RoHS | Restriction of hazardous substances—compliance with EU Directive. |
| Consideration | M20 | M25 |
| Maximum Current | 20A | 30A |
| Mechanical Robustness | Standard | More robust—larger shell, thicker walls |
| Cable Capacity | Up to 2.0mm² | Up to 4.0mm² |
| Panel Space | More compact | Requires larger cutout |
| Hybrid Options | No | 3+2, 3+5,3+9 |
Choose the M25 when:
You need maximum mechanical robustness for heavy-duty applications.
Your application involves larger cables or higher mechanical stress.
You require the largest shell for easy handling with gloved hands.
Your panel space permits the larger 25mm cutout.
Choose the M20 when panel space is limited or the application does not require the additional mechanical robustness.
Yes—the M25 series is well-suited for EV charging infrastructure, particularly for:
AC charging stations .
On-board chargers (moderate DC currents).
Battery management system interfaces (power + signal).
The M25's 30A current rating, IP67 sealing, and hybrid power-signal configurations make it a practical choice for many EV charging applications. For DC fast charging (100A+), we recommend larger industrial connectors specifically designed for high-current DC applications.
To achieve and maintain IP67 sealing, Reunion recommends:
Mating torque – Hand-tighten the coupling nut until the O-ring contacts the panel surface, then apply additional torque of 1.2-1.5Nm using a torque wrench. Do not exceed 1.8Nm.
O-ring inspection – Replace the O-ring if deformation, cracking, or hardening is visible.
Replacement schedule – For demanding applications (daily washdown, outdoor exposure), replace O-rings annually. For standard industrial environments, every 2-3 years.
Cable bend radius– Maintain minimum 5× cable diameter at the connector entry.
Cable orientation– For outdoor/washdown applications, orient the cable exit downward to prevent liquid pooling near the seal interface.
