All data verified by 100% factory electrical testing—not sample-based AQL. Every single unit is tested before shipment.
| Parameter | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin | 8-pin | 9-pin |
| Voltage Rating | 250V | 250V | 250V | 250V | 125V | 50V | 50V | 50V |
| Current Rating | 20A | 20A | 15A | 15A | 10A | 5A | 5A | 5A |
| Wire Section (mm²) | 0.75–2.5 | 0.75–2.5 | 0.5–2.0 | 0.5–2.0 | 0.25–0.75 | 0.25–0.5 | 0.25–0.5 | 0.25–2.5 |
| Parameter | Value / Detail |
| Operating Temperature | -40°C ~ +105°C |
| Protection Rating | IP67 / IP68 (mated ) – batch-immersion tested at 1m depth for 30 minutes |
| Housing Material | PA66 |
| Contact Material | Brass with gold plating |
| Contact Resistance | ≤3mΩ |
| Mating Cycles | ≥500 |
| Flammability Rating | UL 94 V-0 |
| Environmental Compliance | 100% RoHS, REACH |
| Feature | Benefit | Validation Evidence |
| PA66 Housing | No rust, no oxidation—proven in salt spray (ASTM B117) and chemical washdown environments. | Excellent corrosion resistance |
| Up to 60% Weight Reduction | Reduces structural loading on panels, cables, and robotic arms—simplifies installation and lowers shipping costs. | Mass comparison data available against comparable brass-shell connectors. |
| IP67 waterproof | Withstands continuous immersion at 1m depth for 30 minutes | Batch-sampled immersion testing. |

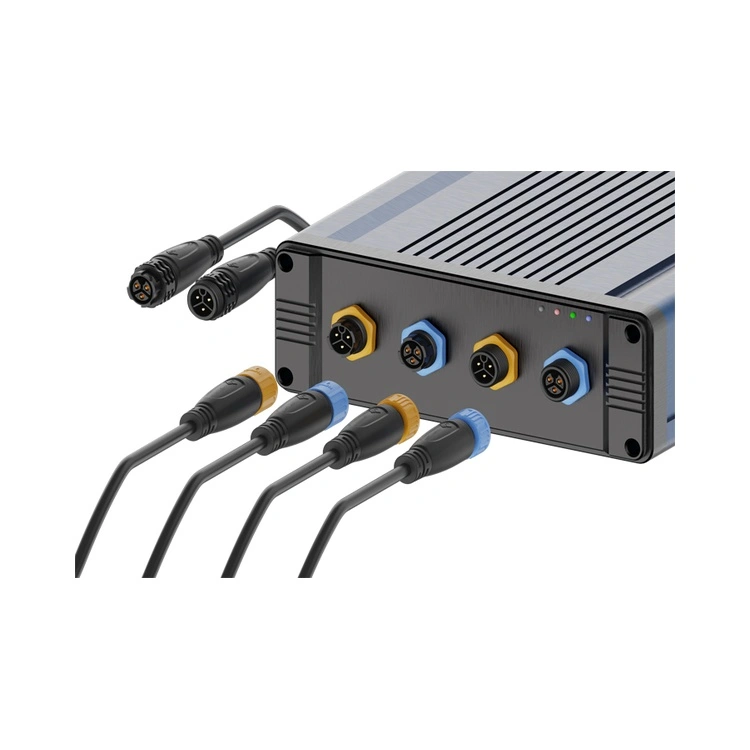

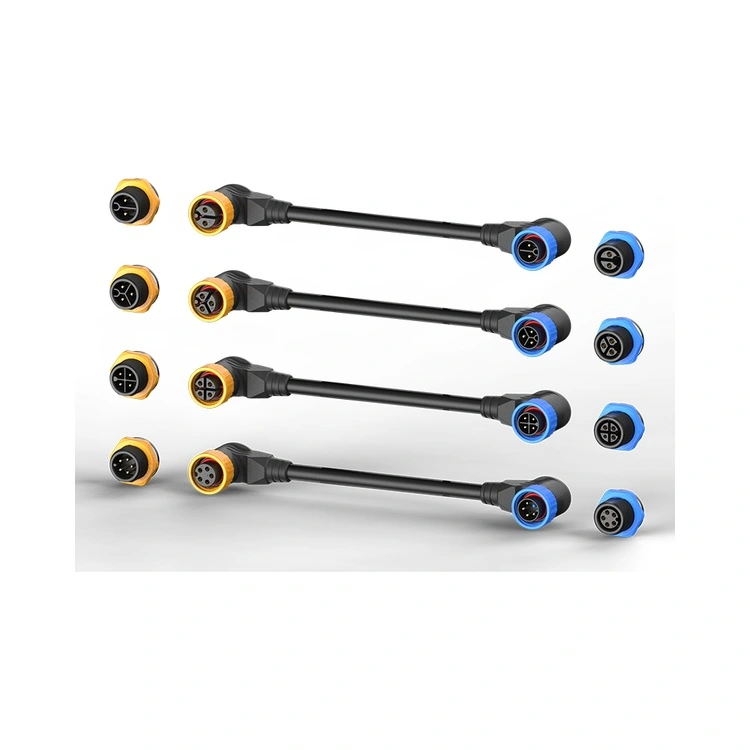

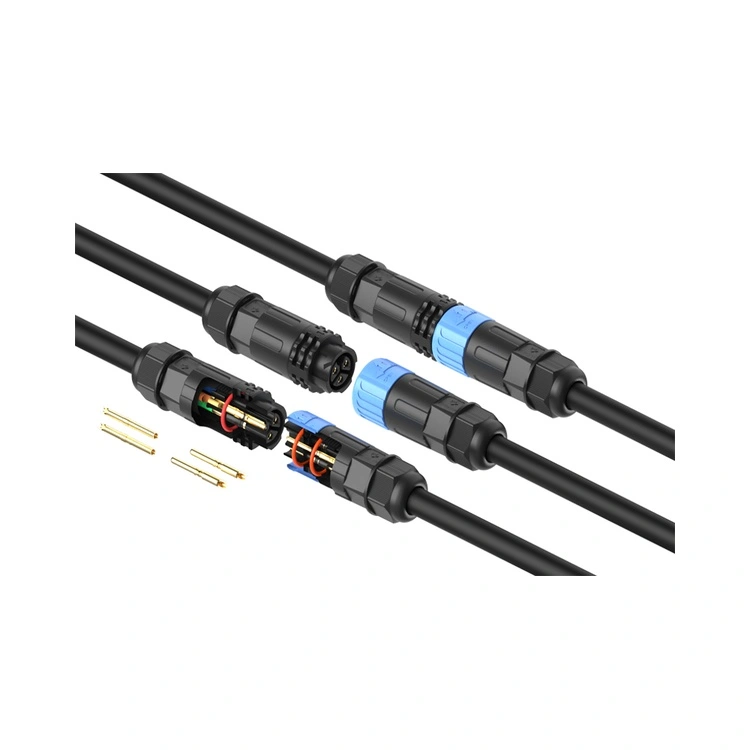

| 2~9pins Configurations | 2,3,4,5,6,7,8,9pins optional | Standard off-the-shelf and custom contact-loading options. |
| Gold-Plated Brass Contacts | Low contact resistance (≤3mΩ) and corrosion protection—maintains performance in humid, saline air. | Plating thickness verified by XRF on every production lot. |
| Threaded Locking | Vibration-resistant mating—prevents loosening from machinery movement, thermal cycling, and crane operations. | Cycle-tested to ≥500 typical matings with consistent torque retention. |
Certifications – Scanned Originals Available for Your Compliance File
| Certification | Scope / Applicability |
| ISO 9001:2015 | Quality management – design, production, and after-sales service. |
| ISO 14001:2015 | Environmental management – third-party verified waste reduction and sustainable practices. |
| ISO 13485:2016 | Medical device quality management – applicable if your LED system integrates into diagnostic or surgical lighting booths. |
| UL Recognized | Component-level safety certification for North American electrical markets. |
| RoHS & REACH | Full SVHC (Substances of Very High Concern) declaration provided per batch. |

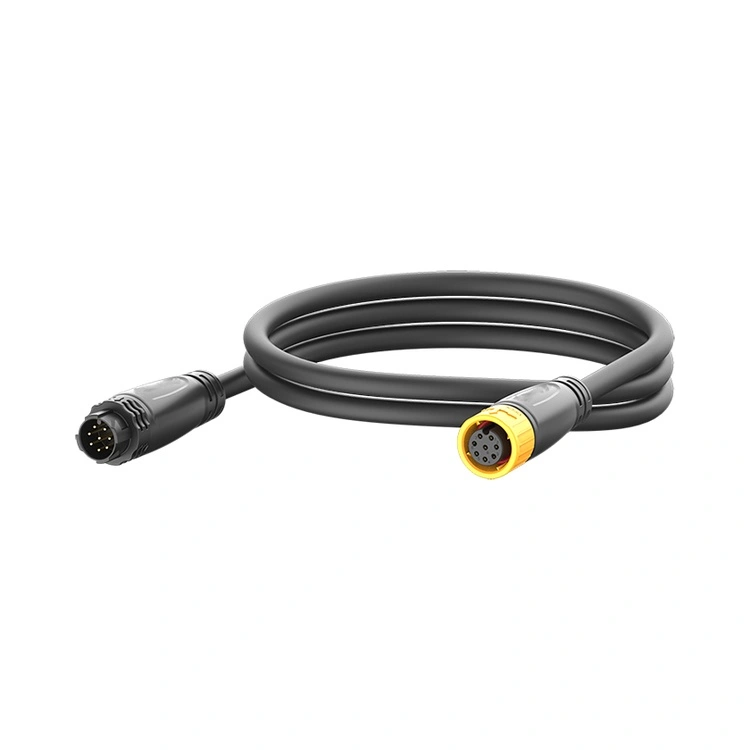

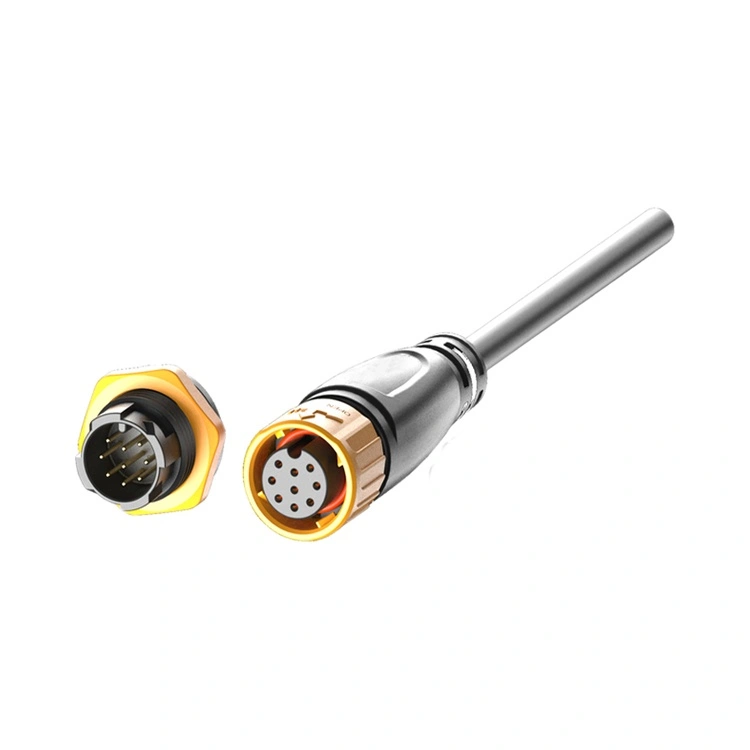

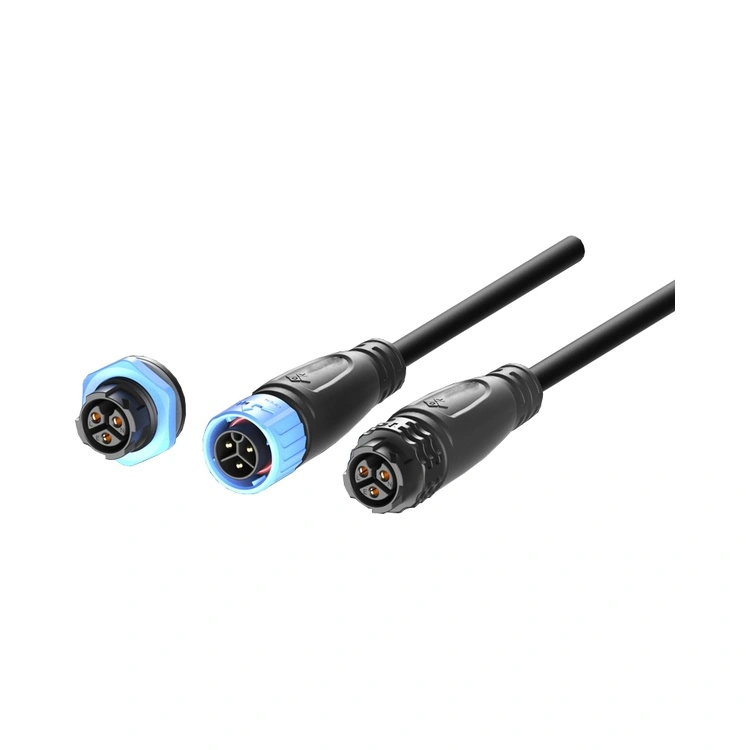

The M16 handles up to 15A (≈480W at 24V). For a 500W+ fixture, or if you plan to daisy-chain two fixtures through a single connector, the M20 series LED light connector provides a 20A continuous rating with larger contact surface area, significantly reducing I²R heating. Additionally, the M20's larger shell accommodates thicker cable insulation, which is critical for long cable runs to mitigate voltage drop. If your application requires >20A per contact, please see our M25 series.
To achieve and maintain IP67/IP68 sealing, Reunion recommends:
Mating torque: Hand-tighten the coupling nut until the O-ring contacts the panel surface, then apply additional torque of 1.0–1.2Nm using a torque wrench. Do not exceed 1.5Nm—over-torquing can stress the thermoplastic insulator and cause micro-cracks.
O-ring inspection: Replace the O-ring if deformation, cracking, or hardening is visible during preventive maintenance.
Replacement schedule: For outdoor lighting installations, replace O-rings every 24–36 months.
Reunion provides detailed torque-setting cards with all production shipments. For critical infrastructure projects, we offer pre-assembled cable harnesses with factory-torqued connectors—saving you installation time and eliminating torque-related errors.
