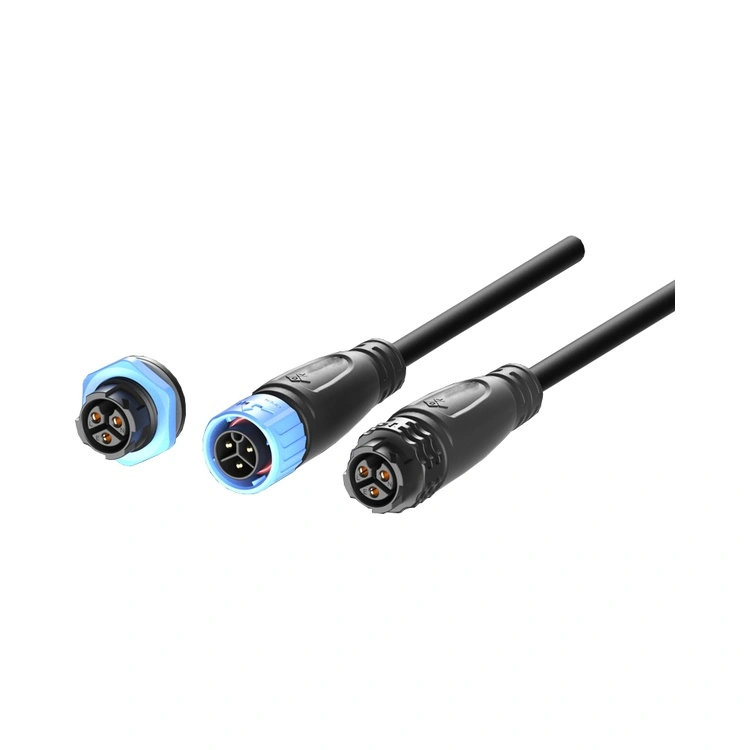

The outer shell is made of high-performance thermoplastic material and has a fire resistance rating of UL 94-V0. Resistant to salt spray corrosion, it can meet the waterproof requirements of outdoor LED displays and LED lighting equipment, as well as the harsh working conditions such as acid erosion resistance of industrial LED displays

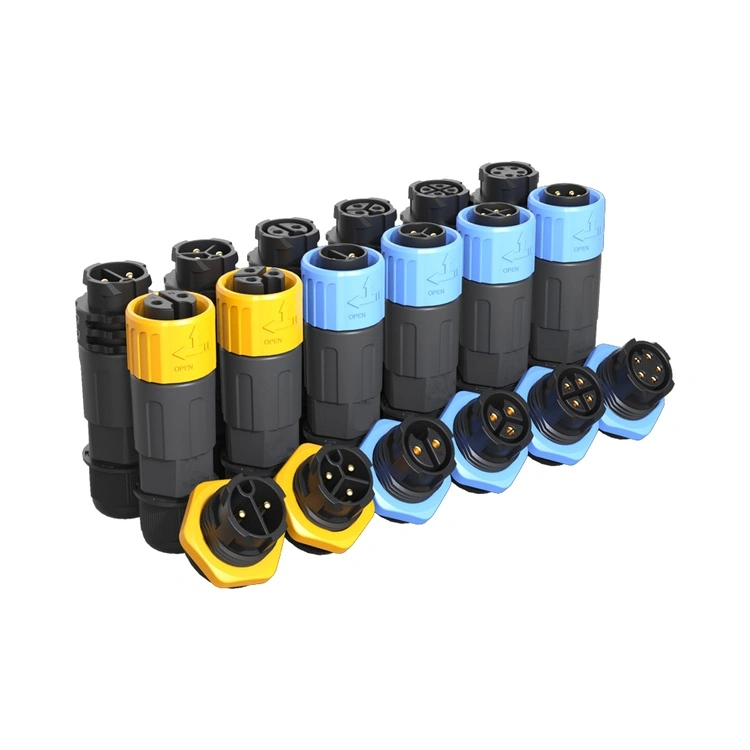

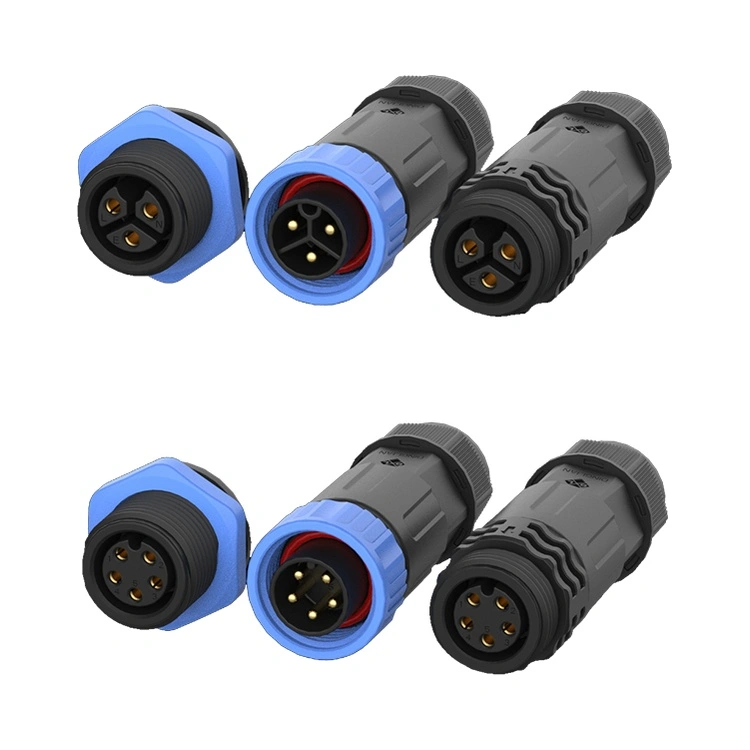

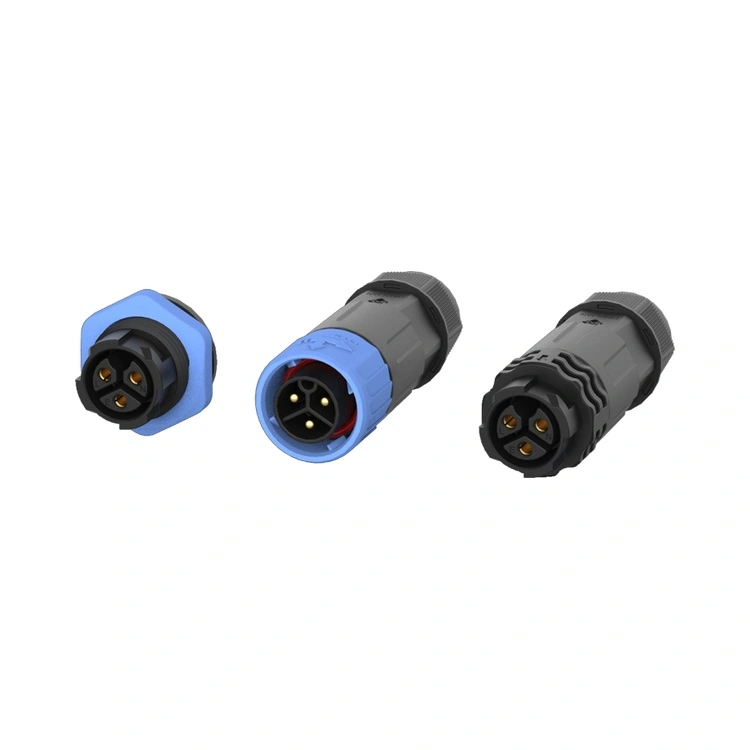

It is installed with a single-hole method, which is stable and flawless. It features a threaded locking structure and can maintain a firm connection even in a vibrating environment. 2, 3, 4, 5, 6, 7, 8, 9 pins are available for selection, and customization is supported.
| Parameter | Reunion M20 Delivered Value | Why It Matters in Practice |
| Contact Resistance (initial) | ≤3.0mΩ | Lower than industry average , reducing I²R heat generatio |
| Mating Cycles with Stable Sealing | ≥500 cycles (verified, not just rated) | Our batch test records show sealing integrity maintained through 500 cycles – critical for maintenance-heavy equipment. |
| IP67 waterproof | Every batch: 1m depth × 30min immersion | Test reports can be provided.. |
| Vibration Resistance | 10-500Hz, 2g (IEC 60068-2-6) | Simulates real motor and pump operation – passed with zero transient disconnections. |
| Parameter | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin | 8-pin | 9-pin |
| Voltage Rating | 250V | 250V | 250V | 250V | 125V | 50V | 50V | 50V |
| Current Rating | 20A | 20A | 15A | 15A | 10A | 5A | 5A | 5A |
| Wire Section (mm²) | 0.75–2.5 | 0.75–2.5 | 0.5–2.0 | 0.5–2.0 | 0.25–0.75 | 0.25–0.5 | 0.25–0.5 | 0.25–2.5 |
1)Insulator Material: High-temperature thermoplastic (UL 94 V-0, )
2)Contact Base Material: Brass (CuZn39Pb3) with gold plating – salt spray test ≥48hr
3)Sealing Material: Silicone O-ring
4)Operating Temperature: -40°C ~ +105°C
5)Flammability & Compliance: UL 94 V-0, RoHS, REACH SVHC not detected
6)Termination Options: Solder cup, dip-solder (PCB mount)
| Comparison Dimension | Reunion M20 Series | Premium European M20 Brand | Low-Cost Unbranded M20 |
| Unit Price (MOQ 100 pcs) | Competitive, volume-tiered | 3.5× – 4× higher | Lower upfront |
| Verified Continuous Current | 20A (per pin, documented) | Typically 25A (fine-print derating) | Inflated, no test evidence |
| IP67 waterproof | 100% of production batches | Batch-test (but not per batch documented) | None or false claims |
| Electrical Testing (Hi-pot & IR) | 100% every unit – test data logged | Sample-based (AQL 1.0) | Random or skipped |
| Full Traceability (Resin→Finished Connector) | ERP-tracked, retrievable within 24hr | Yes, but slower response | None |
| Lead Time (Standard Qty) | 15–17 working days | 6–10 weeks | Unpredictable (2–20 weeks) |
| Customization MOQ (cable length, color, marking) | 100 pcs – flexible | 500+ pcs, high engineering fees | Not offered or no quality control |
| Certifications | ISO 9001, 14001, 13485 | Usually ISO 9001 only | Typically none |
To achieve the rated IP67/IP68 sealing in actual field installation, follow these verified procedures:
| Step | Action | Critical Value / Checkpoint |
| 1 | Hand-tighten coupling nut until O-ring contacts panel surface. | Visual contact confirmed. |
| 2 | Apply final torque using calibrated wrench. | 1.0 – 1.2 Nm (do NOT exceed 1.5 Nm – over-torque distorts O-ring and increases insertion force). |
| 3 | Verify cable bend radius at entry. | ≥ 5× cable outer diameter – acute bends pull contacts and compromise rear seal. |
| 4 | Outdoor orientation | Cable exit downward – prevents water pooling on the coupling nut interface. |
| 5 | O-ring inspection frequency | Annually for daily washdown / food-processing environments; every 2-3 years for standard indoor/outdoor industrial use. |
| Certification / Protocol | Scope & Evidence Provided with Each Order |
| ISO 9001:2015 | Full QMS – design, production, after-sales. Audit reports available upon NDA. |
| ISO 14001:2015 | Environmental management – waste reduction and RoHS/REACH compliance documented. |
| ISO 13485:2016 | Applicable for medical equipment (diagnostic/monitoring) – stringent change control and traceability. |
| UL Recognition | Component-level safety for North America – UL mark on each housing. |
Torque: 1.0 – 1.2 Nm (final tightening after hand-seating).
Below 0.8Nm: The O-ring compression is insufficient – IP67 drops to IP54 (dust-protected but not watertight). We have seen water ingress within 2 hours at 0.5m depth in our lab tests.
Above 1.5Nm: The fluorosilicone O-ring extrudes into the thread clearance, causing permanent deformation and increased mating force. The seal may initially pass IP67 but will fail after thermal cycling (expansion/contraction).
Recommendation: Use a preset torque wrench – we can supply one as an accessory with volume orders.
Standard samples: 5–10 pieces available within 3 working days (stock permitting).
Small-batch orders (100–500 pcs): 12–15 working days from order confirmation.
Large-volume (500+ pcs): 18–20 working days, with partial shipments available.

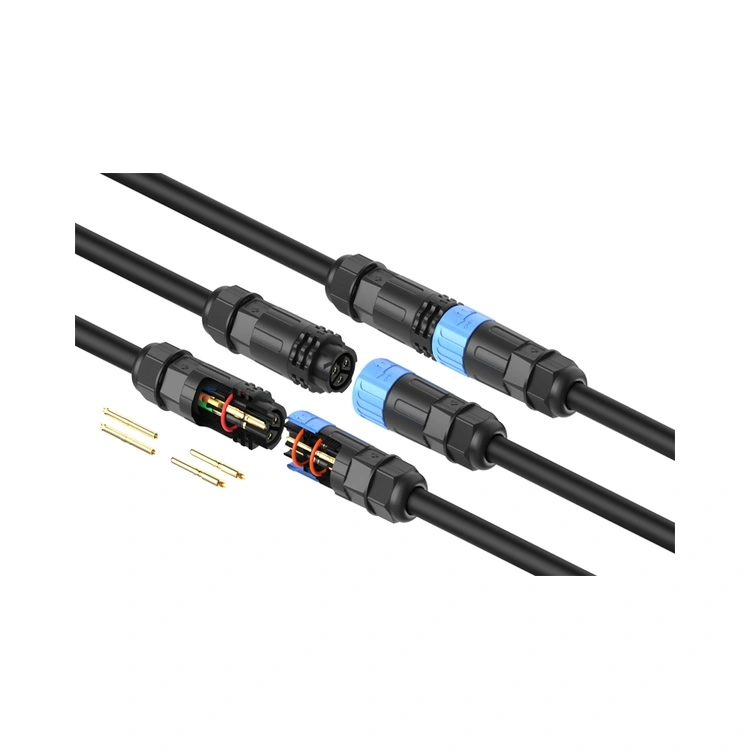

Custom cable assemblies (length, wire gauge, color coding): MOQ 100 pieces – engineering drawing approval takes 2–3 days, then 15-day production.
